Handheld Exhaust Gas Analyzer 70- 106Kps Automobile Diesel Smoke Meter

Place of Origin China
Brand Name Zetron
Certification CE
Model Number SV-5Y
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Opaque Smoke Meter Model Number SV-5Y
Display 7 Inch High Brightness LCD Display Temperature -5~40℃
Color Orange Humidity ≤95% RH
Pressure 70~106 Kps Warranty 12 Months
High Light

Handheld Exhaust Gas Analyzer

,

106Kps Exhaust Gas Analyzer

,

Handheld Automobile Smoke Meter

Leave a Message
Product Description

SV-5Y Opaque Smoke Meter



OVERVIEW



The measurement unit of 5Y opaque smoke meter adopts shunt technology to measure the smoke emission of diesel engine. Air curtain technology is used to protect optical system from pollution.



Handheld Exhaust Gas Analyzer Diesel Smoke Level Testing Portable Automobile Smoke Meter 0



FEATURES

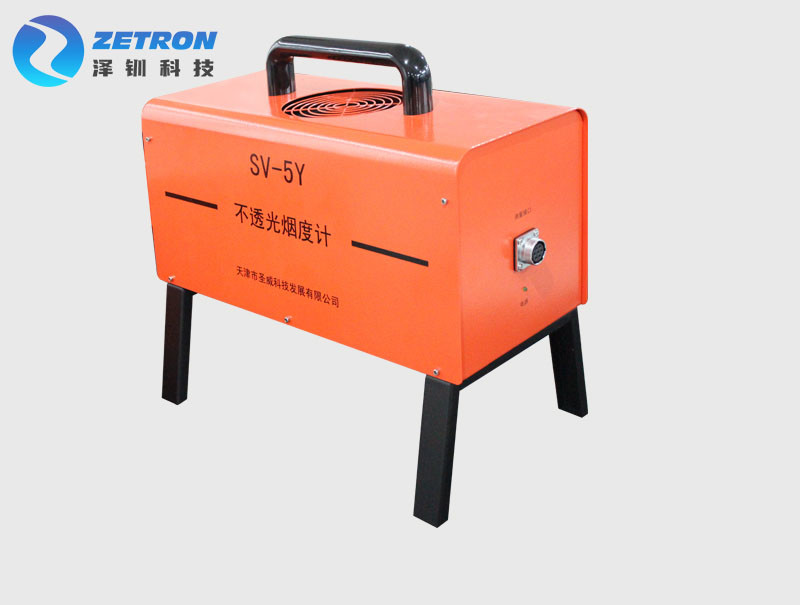

Handheld Exhaust Gas Analyzer 70- 106Kps Automobile Diesel Smoke Meter 1



The performance of the instrument meets the requirements of GB3847-2005.

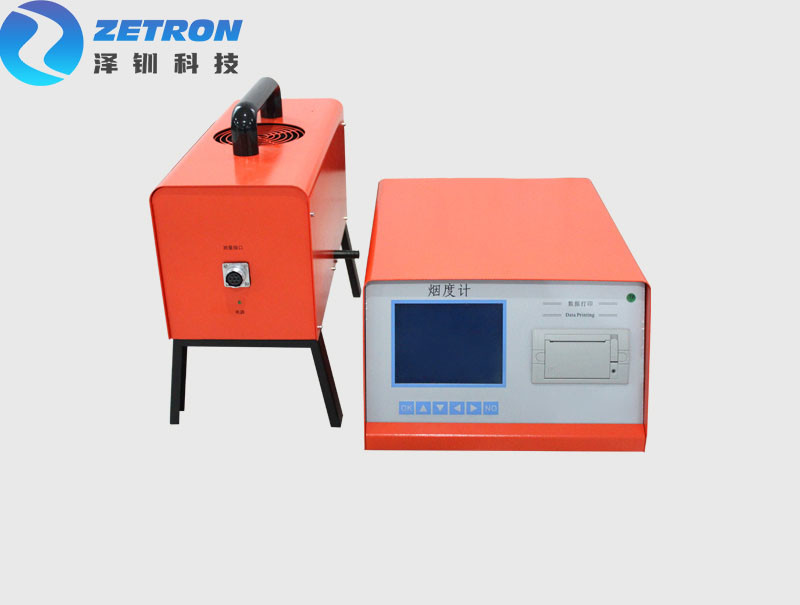

Handheld Exhaust Gas Analyzer 70- 106Kps Automobile Diesel Smoke Meter 2



Handheld Exhaust Gas Analyzer 70- 106Kps Automobile Diesel Smoke Meter 3



Fission structure,Measurement and control unit

■ Separate structure, separate measurement and control unit, easy to operate.

■ The measurement unit adopts the split-flow technology to measure the exhaust smoke of diesel vehicles.Air curtain technology is used to protect optical system from pollution.The constant temperature control of the testing room can prevent condensation and avoid the influence of temperature change on the measurement accuracy.
■ Optional function: Gas temperature and engine speed optional configuration



Handheld Exhaust Gas Analyzer 70- 106Kps Automobile Diesel Smoke Meter 4



Multi test mode,convenient to use

■ It has the functions of free acceleration test and transient measurement, and can automatically
process test data and display measurement results.
■ Opacity and absorption coefficient, N&K, simple operation ■ The alarm of K value exceeding the standard: When the K value exceeds the user's set value,
the instrument automatically alarms



Handheld Exhaust Gas Analyzer 70- 106Kps Automobile Diesel Smoke Meter 5



Powerful standard configuration

■ Digital time display.
■ Large and high brightness LCD display
■ Support multi-language (English & Chinese)operation menu
■ Equipped with internal printer
■ Automatically Auto-zeroing
■ Have more than 500 groups of data storage and access functions
■ Equipped with RS-232C digital serial communication interface to facilitate networking
■ The input function of license plate number can input the vehicle platoon head and license plate number of provinces,
municipalities and autonomous regions, which makes the vehicle and test results correspond one by one in the use of
users, making it more convenient to inquire and call between departments.



SPECIFICATION



Mode SV-5Y
Warm up time 10 minutes
Size

Control unit: 610*500*330 mm

Test unit: 500*300*330mm

Weight

Control unit: 6kg (include printer)

Test unit: 13.5Kg

Power supply AC220V ±10%; 50Hz ±1Hz
Environment conditions

Temperature: -5~40℃

Humidity: ≤95%
Pressure: 70~106 kps

Measurement range Dark lighting N:0-99.9%
Optical absorption coefficient K: 0-16.00m-1
Resolution Opacity N: 0.1%
Coefficient of light absorption K:0.01m-1
Indication Error Opacity N: ±2.0%(absolute error)
Display 7 inch high brightness LCD display
Optional function Gas temperature and engine speed optional configuration



APPLICATION



It's suitable for all levels of traffic, public security testing stations, environmental protection exhaust control points at all levels, teaching laboratories of colleges and universities, automobile manufacturers, engine manufacturers, motorcycle manufacturing areas, as well as the use of one, two and three types of automobile repair plants, 4S shops, automobile repair and maintenance departments.
