CD100 Benchtop Conductivity and Dissolved Oxygen Meter
The CD100 Benchtop Cond/DO Meter is designed for precise measurement of conductivity and dissolved oxygen in various laboratory and industrial settings. Ideal for water quality testing, environmental monitoring, and aquaculture applications, this versatile instrument ensures accurate readings to support your analytical needs. With its user-friendly interface and robust performance, the CD100 streamlines your workflow, making it an essential tool for researchers and quality control professionals alike.
Features
▪ High-resolution LCD display screen.
▪ With built-in microprocessor chip, automatic calibration, automatic temperature compensation, data storage, parameter setup, etc.
▪ Fast response, high accuracy, stable reading display.
▪ Automatic calibration, automatically recognizing standard buffer solutions, self-diagnosis.
▪ Calibration points: conductivity: 1pt. DO: 100%Oxygen or Zero oxygen calibration.
▪ Each kit comes with a plastic ATC Cond electrode, a polarographic type DO probe and 3pcs DO replaceable sensor caps
▪ IP54 dustproof and spillproof.
Parameters
| Conductivity | Range | 0-200.0mS/cm, auto divided by range of: 0-19.99μS/cm; 20.0-199.9μS/cm; 200-1999μS/cm; 2.00-19.99mS/cm; 20.00-199.9mS/cm; TDS: 0 -100.0g/L; Resistivity: 5.00Ω·cm-100.0MΩ·cm; Salinity: 0-100.0 ppt |
| Resolution | 0.001 | |
| Accuracy | ±1.0 % FS± one digit | |
| DO | Range | 0-20.00 mg/L (ppm) 0-200.0 % |
| Accuracy | ± 0.30 mg/L | |
| ATC range | (0 – 50) ℃ automatically | |
| Salinity compensation | 0-45 ppt manual | |
| Barometric compensation | 0-200.0 kPa automatically | |
| Temperature | Range | 0 -100.0°C (32.0-212.0℉) |
| Resolution/Accuracy | 0.1℃/±0.2℃ | |
| Data storage | 450 groups | |
| Data transfer | USB stick Bluetooth connection to printer (the printer is optional) | |
| Power supply | DC12V | |

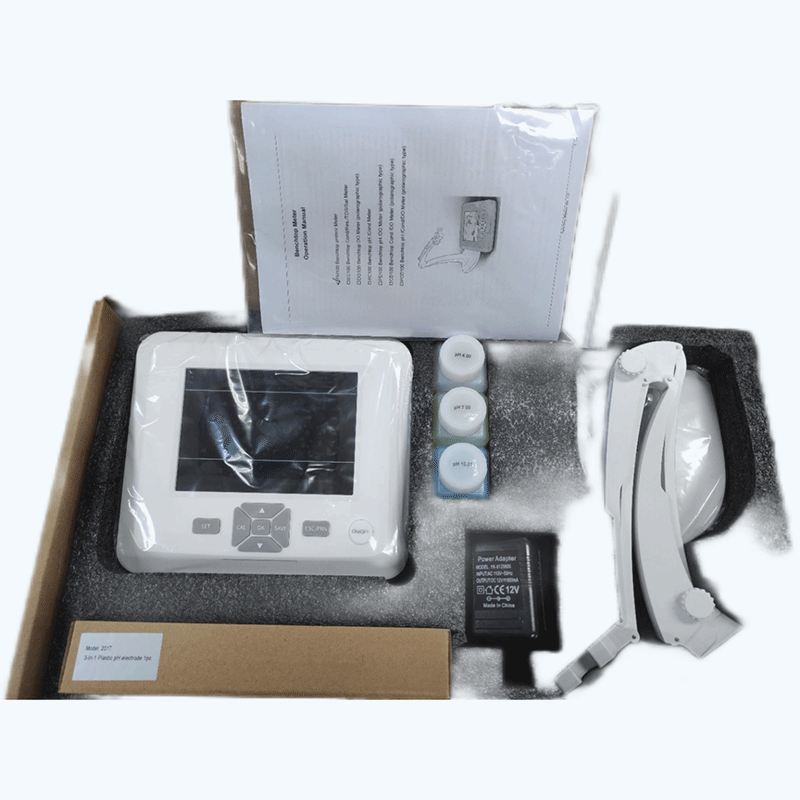

| Packing including | CD100 Meter CON201T Plastic ATC Cond probe, K=1.0 Standard Cond solution: 50mL: 84μS/1413μS/12.88mS/cm, one for each; DO01-2M Polarographic DO probe, cable length: 2m DOS-01 Membrane refill solution: 30mL,1pc DOSC Sensor caps: 3pcs/group, 1pkg F01 Flexible probe Holder: 1pc A01 Power adaptor: 1pc | |
