DOAS 3000 Continuous Emission Monitoring System for Stack Gas Analysis
The Continuous Emission Monitoring System DOAS 3000 provides real-time analysis of gas emissions, ensuring compliance with environmental regulations and fostering responsible operational practices. Its user-friendly interface enables seamless data integration for accurate reporting and informed decision-making in monitoring and managing emissions effectively.
Sampling Probe
FTSP sampling probe consists of the following components:
▪ Ceramic Sampling Probe
▪ 0.3μm Ni‑Titanium filter, 140mm length
▪ 20 meters electric heating system to ensure probe temperature at 180 degrees C
▪ DN65, DN6 flange installation
Sample gas goes through from the probe rod, through 0.3 to 0.5 μm particle filter, a large amount of dust blocked outside the filter, to ensure that clean gas into the sampling pipeline, electric heating pipe to keep the gas temperature at 180 degrees C, to ensure that water in the vapor state, will not react with pollutants SO2, HCl and other acid and corrosion equipment. The sampling probe has an anti‑blowing system, which is regularly controlled by PLC to blow dust back into the flue pipe, ensuring the smooth flow of the sampling line.
Features of the sampling probe:
▪ The sampling equipment with automatic temperature control for internal electric heating and automatic anti‑blowing function, with a concentration of 20g/m3 in the flue gas, and a flue gas temperature of max 2000 degrees C, can be used normally and in a normal condition, and can meet the continuous sampling of gases with a pressure of no more than 2 bar. And reserved calibration port, for the full calibration of the flue gas monitoring system.
▪ Use the heating automatic adjustment unit to heat up to 180 degrees C to avoid condensation, corrosion and measurement errors caused by SO2, HCL, HF and water reactions.
▪ The usage of 0.3～0.5μm nickel‑titanium alloy filter and automatic anti‑blow function to maximize the ability to overcome clogging problems.
Sample pre treatment unit
Structure: The entire pretreatment system and instruments are integrated in one cabinet
▪ Material: tube valve parts are selected corrosion - resistant materials, PTFE, PVDF, 316 stainless steel, etc.
▪ The sample pretreatment unit must make the condition of the sample gas, such as pressure, temperature, flow, etc., to meet the operating conditions of the analytical instrument. The system includes
Because the pressure of the flue is very low, the sample gas transmission distance is long, so must be pumped, complete sampling analysis, the seller selected large flow anti - corrosion sampling pump, pumping flow reached 200 - 600L/h.
The use of high purity N2 or clean compressed air for zero calibration, the work process is done by the PLC control solenoid valve.
The system is equipped with standard gas and can be calibrated regularly according to environmental requirements.
From the sampling unit of the sample gas pipeline to the analysis unit, the whole process is thermal, and in the cut - off valve joint site using the whole heating of the high temperature box, in order to ensure the application.

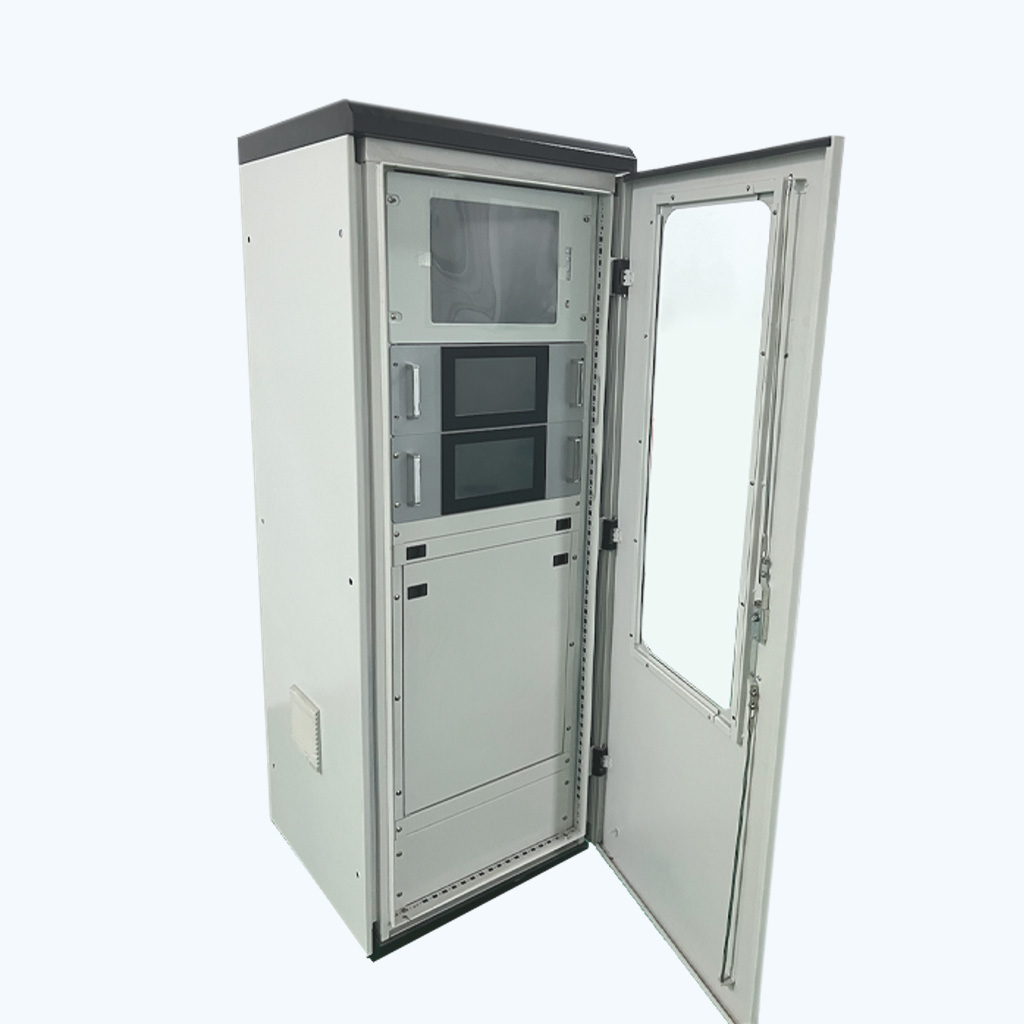

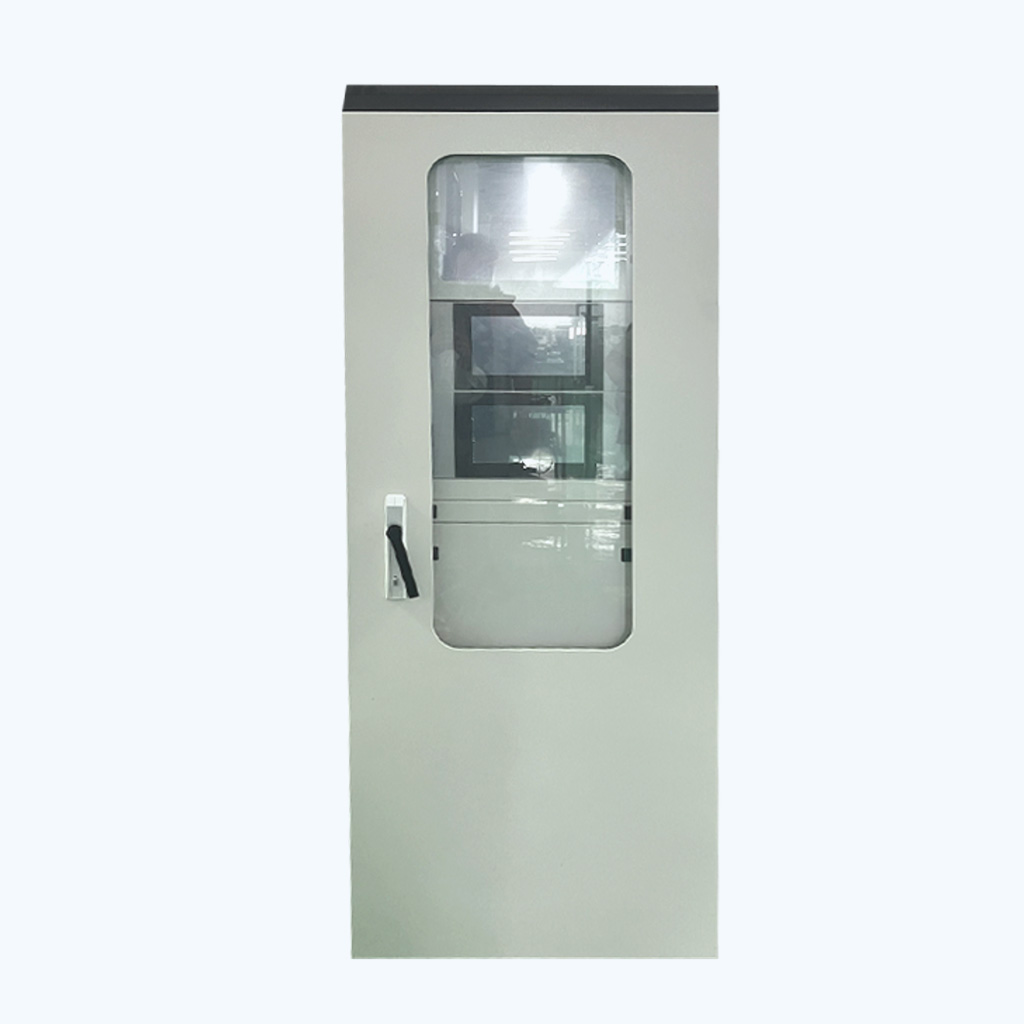

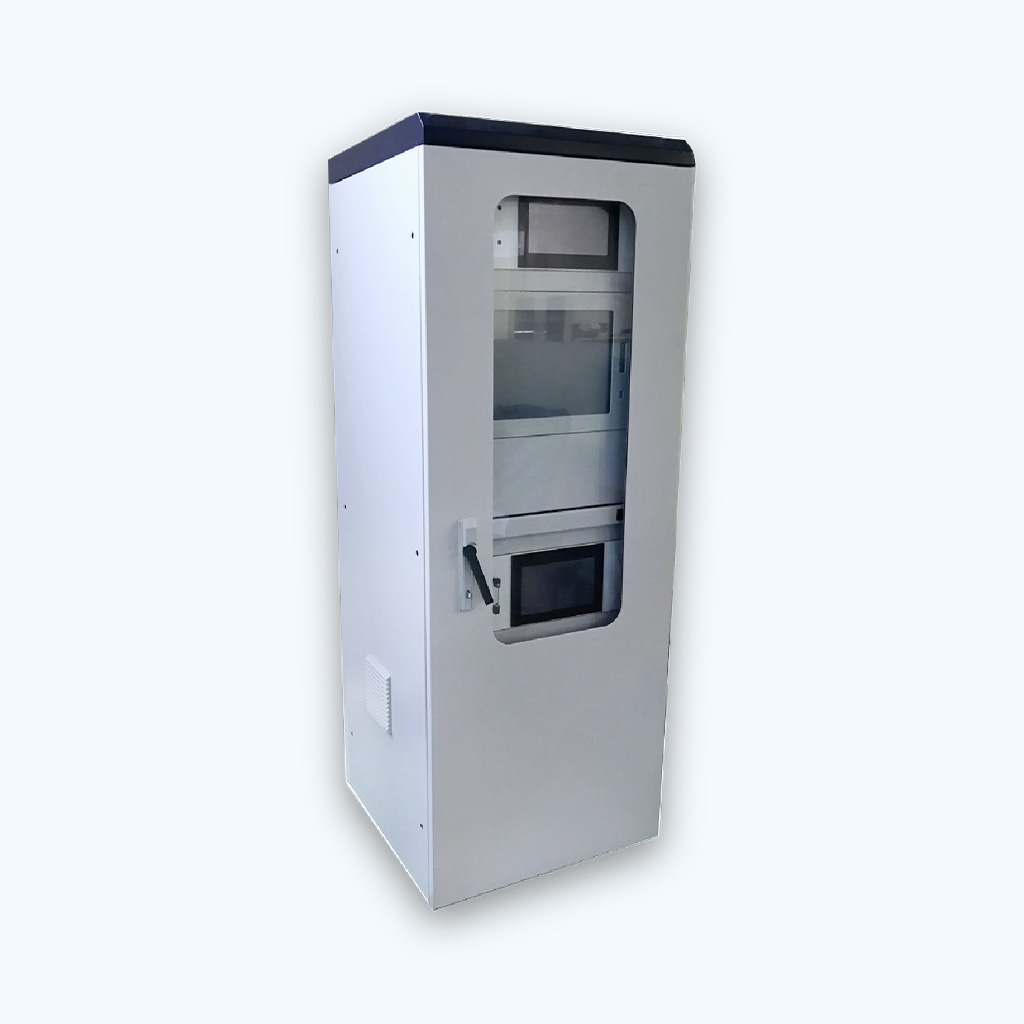

The sample pretreatment components are installed with the analyzer in the instrument cabinet, which is 1800×800×400 (mm).
▪ Full high temperature for applications where gas composition and gas characteristics are complex，max to 2000 degrees C.
▪ Using UV - DOAS and infrared technology, the measurement range is wide, the sensitivity is high, and the scanning speed is fast.
▪ Automatic water interference compensation, to ensure that HCL, HF and other special parameters measurement accurate.
▪ The system is well - extended and measures for multi gases.
▪ Use N2 or clean compressed air to correct zero points, no need for range gas, maintenance costs and maintenance is small.
▪ Two - stage high - efficiency condensation and dehumidification system, the dew point of the gas will be stably controlled at 4 ℃ or 5 ℃, automatic drainage.
▪ The sample gas passes through a tar filter to remove residual tar and dust.
▪ The human - machine interface is friendly and all necessary actions can be set and changed by touching the display，the system is window7.
▪ Various data transmission methods, 4 - 20mA, RS485, wireless transmission, network transmission, etc.
Parameters
▶ One sets, for one set below
| No. | Name | Specification | Unit | Quantity | Manufacturer | Working time |
| 1 | Probe rod pre-filter | B090109061 | pcs | 2 | Eranntex/China | 6 months |
| 2 | Insurance tube | B051106001 | pcs | 1 | Eranntex/China | 2 years |
| 3 | Sampling probe filter | B090109091 | set | 2 | Eranntex/China | 6 months |
▶ List of spare parts
| No. | Equipment Name | Specification | Quantity | Unit | Manufacturer |
| 1 | Sampling probe | FTSP-serie | 1 | set | Eranntex/China |
| 2 | Sampling pipeline | BWG-F8-F6-180℃ | 70 | m | Eranntex/China |
| 3 | UV-DOAS Gas Analyzer | DOAS3000 (NO, NO₂, CO, SO₂, NOₓ) | 1 | set | Eranntex/China |
| 4 | Pre-processing system and its cabinet | 1800×800×400 (mm) | 1 | set | Eranntex/China |
| 5 | System blow-back | -- | 1 | set | Eranntex/China |
| 6 | Standard gas | 8L AL | 7 | bottle | China |
| 7 | Standard gas | 40L AL | 1 | bottle | China |
| 9 | The thermometer | SITRANS T | 1 | set | SIEMENS |
| 11 | Flowmeter | SITRANS P | 1 | set | SIEMENS |
| 12 | System internal cables | -- | 1 | set | Eranntex/China |
| 13 | Spare parts | -- | 1 | set | Eranntex/China |
| 14 | HMI touch screen human-machine interaction HMI | TH3000 | 1 | set | Eranntex/China |
