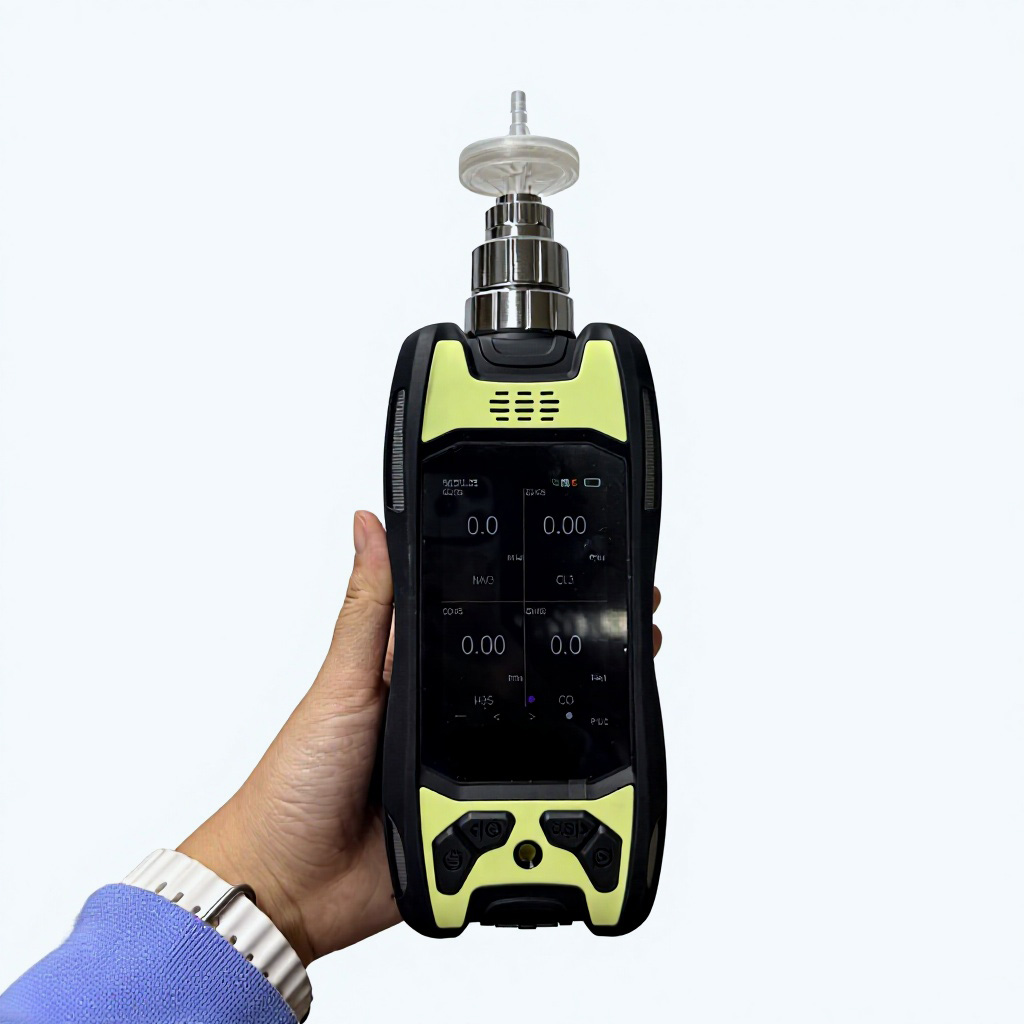

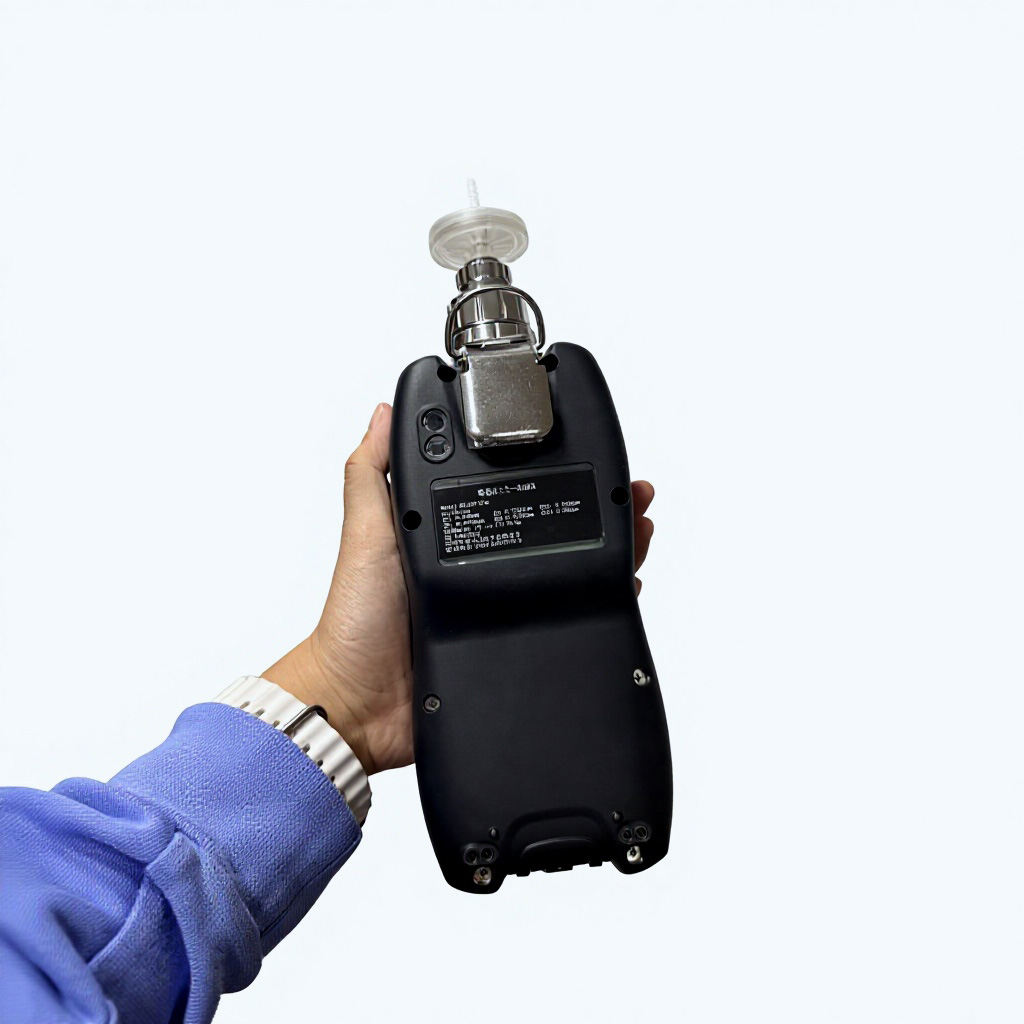

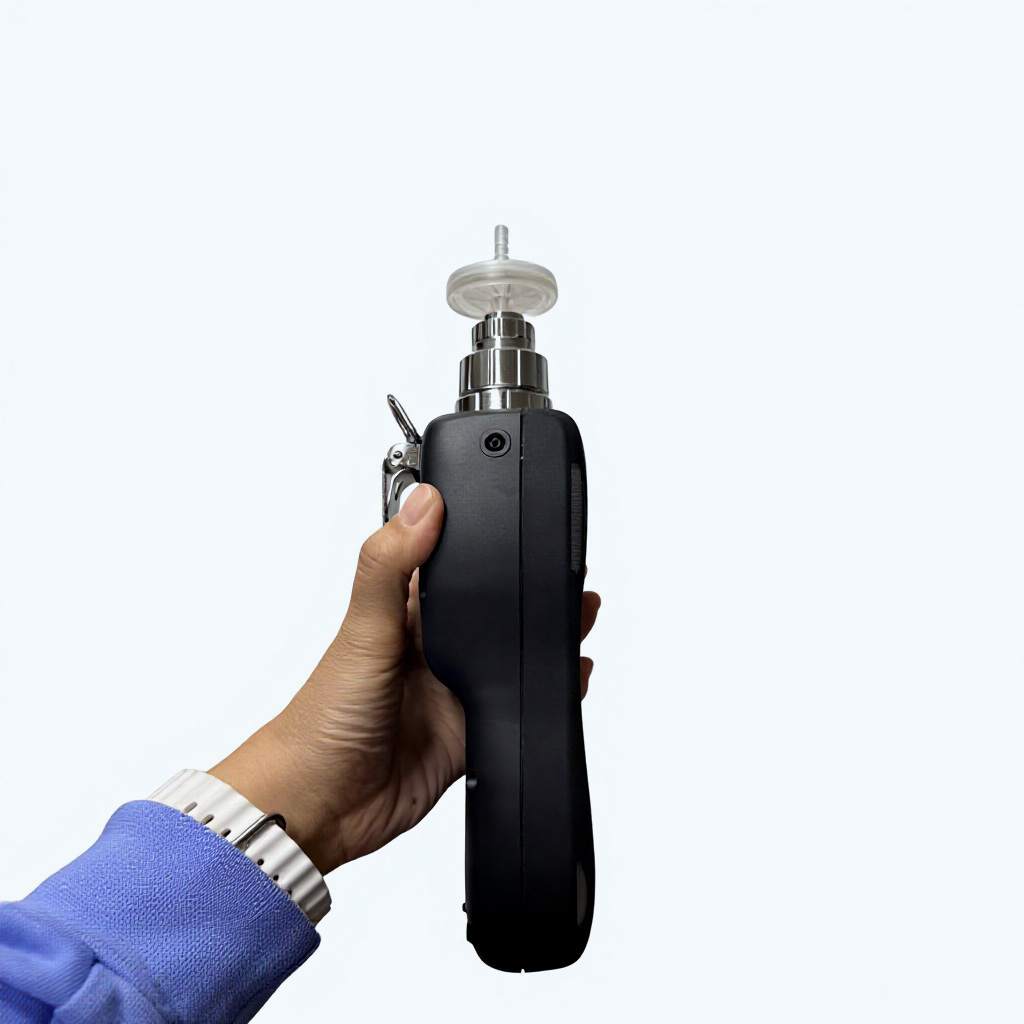

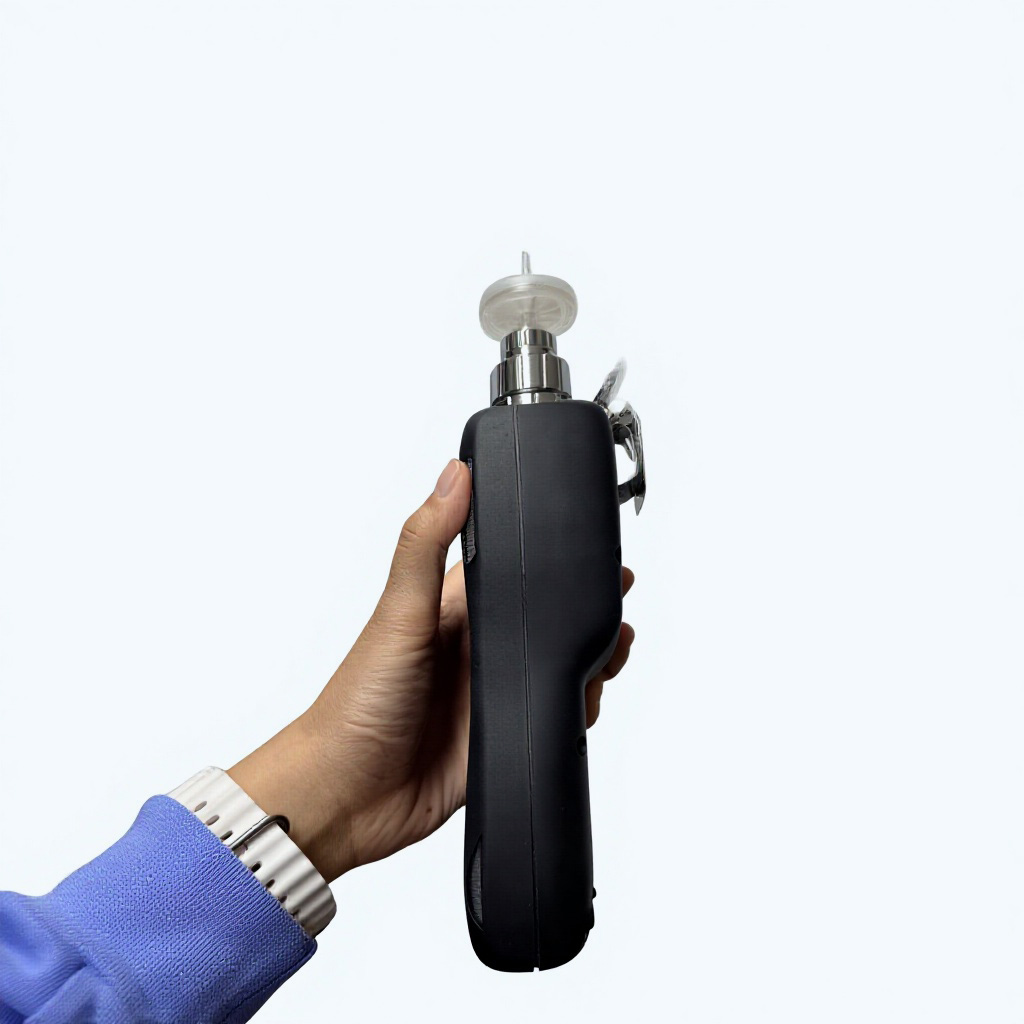

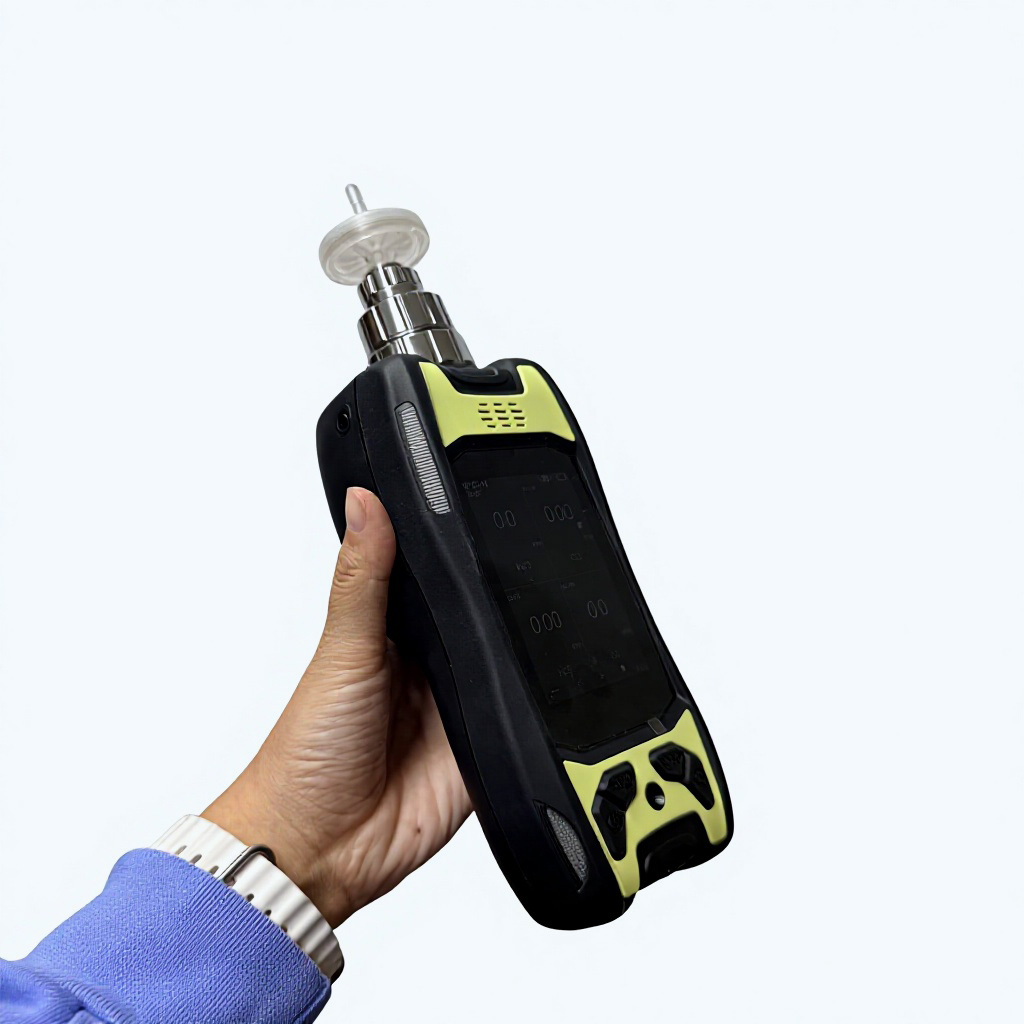

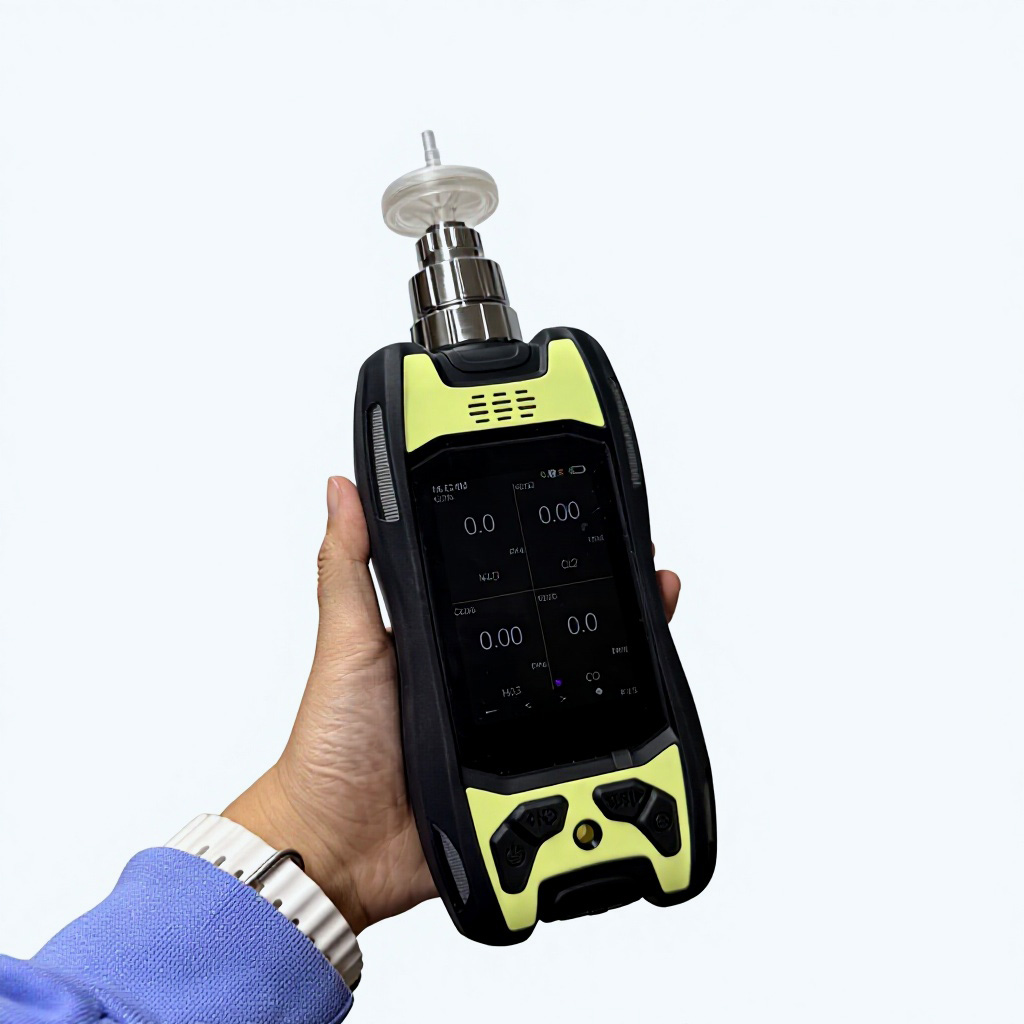

MS600S-AQI Portable Intelligent Air Quality Monitor
The MS600S-AQI Portable Intelligent Air Quality Monitor provides real-time data on various air pollutants, allowing users to assess their environment effectively. Its compact design ensures easy transport, enabling consistent monitoring across different locations to maintain a healthy atmosphere.
Overview
The MS600S-AQI Portable Intelligent Air Quality Monitor provides pumped-sampling detection of PM2.5, PM10, CO and CO₂, expandable to 6 parameters. Equipped with Android system, positioning function, multi-mode alarms and large-capacity storage, this explosion-proof, rugged portable monitor supports remote upgrade and flexible data output, perfectly suited for field ambient air quality monitoring.
Features
▪ ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
▪ Upto 6 gases simultaneously detection
▪ Android OS, support remote maintenance and OTA remote wireless upgrade
▪ GPS/Beidou precise positioning, LED lighting, SOS one-key call for help, 3D intelligent fall alarm, one-key positioning upload
▪ Built-in pump with 1000ml/m flow rate, 0.2m swan sampling probe
▪ Alarm types: LOW, HIGH, TWA ,STEL, alarm, concentration alarm, under pressure alarm, fault alarm, pump blockage alarm, man fell down alarm
▪ Alarm mode: sound and light alarm, sound and light + visual alarm, vibration alarm, voice (multi-language) alarm
▪ Communication: Type C, WiFi and Bluetooth
▪ Optional: Bluetooth printer, 4G, Display user information, real-time location, concentration information, longitude and latitude, custom address information, track query on the map,One-click photo taking (＞ 800W pixels)
▪ PC software for data acquisition and analysis
▪ 4 inch High-definition color screen, touchable screen, 800*480 pixels
▪ Zero point automatic tracking
▪ Automatic calibration with calibration system or manual calibration
▪ 16G big storage, 10,000,000 logs
▪ Anti-drop height: ≥ 2 meters
▪ High-strength, corrosion-resistant, fire-resistant polycarbonate and rubber protective housing,anti-fall, wear-resistant and anti-static
Specifications
▪ Detection Parameters : PM2.5, PM10, CO, CO2
PM2.5: laser sensor,0-1000ug/m3, 1ug/m3 resolution
PM10: laser sensor, 0-1000ug/m3, 1ug/m3 resolution
CO: electrochemical sensor, 0-100ppm, 0.01ppm resolution
CO2: IR sensor, 0-5000ppm, 1ppm resolution
▪ Accuracy:≤±2% (F.S), Respond time: T90≤20S
▪ Sensor lifetime: EC 2-3 years , Cat 2-3 years, IR 5-10 years, TC 2-5years，PID 2-3years
▪ Detection method: Pumped
▪ Battery: 10000mAh rechargeable lithium battery
▪ Protection level: IP66
▪ Product Size: 210×93×70mm(L×W×H)
▪ Weight: about 700g
▪ Protection grade: Exia II CT4 Ga
▪ Working environment: -20℃～+50℃, ≤95%RH (non-condensing occasions)
▪ Warranty time: 1 year
Application Scenes
The MS600S-AQI is extensively adopted for on-site ambient air quality inspection across gas stations,
oil exploitation sites, metallurgical plants, pharmaceutical facilities,
shipping terminals and gas pipeline stations,
alongside environmental monitoring and air treatment scenarios.
