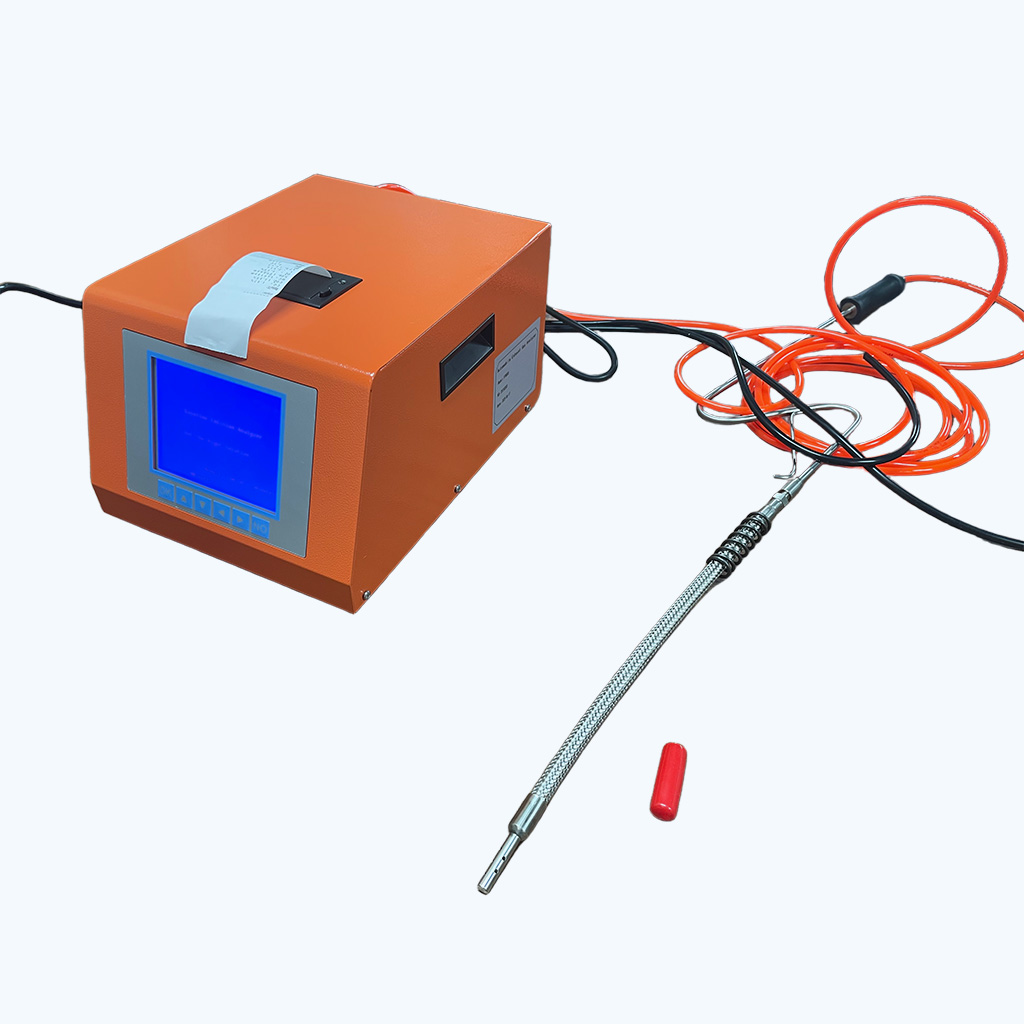

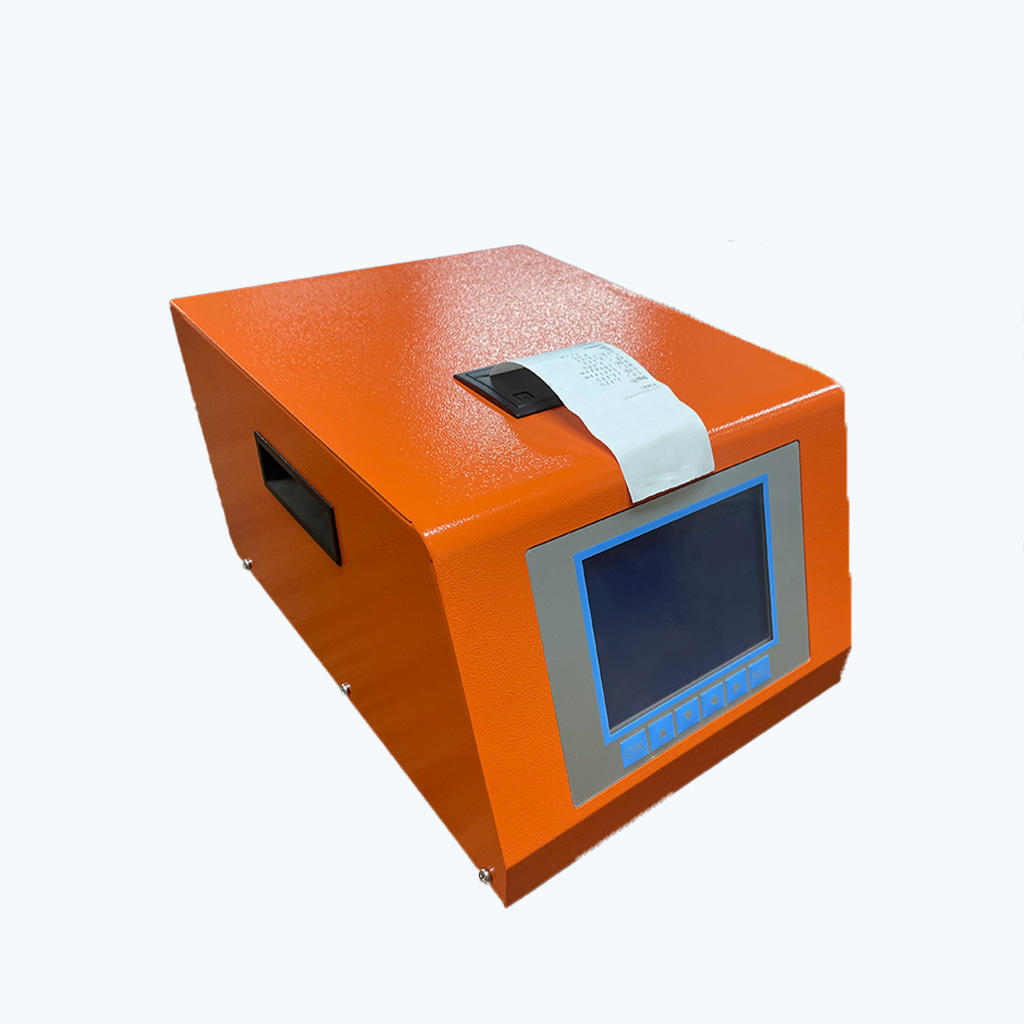

PTM500 5-Gas Automobile Exhaust Gas Analyzer for Vehicle Emission Testing
The PTM500 Automobile Exhaust Gas Analyzer is designed for automotive professionals seeking to accurately assess vehicle emissions in various settings, from repair shops to regulatory compliance checks. Capable of measuring five critical gases simultaneously, it streamlines the diagnostic process, ensuring quick and reliable results for effective monitoring and troubleshooting. With its user-friendly interface, the PTM500 enhances productivity, making it an essential tool for maintaining environmental standards and optimizing vehicle performance.
Overview
The PTM500 (5 Gases) Automobile Exhaust Gas Analyzer is a professional vehicle exhaust testing device specifically designed to measure key gaseous parameters-including HC, CO, CO2, O2, and NO-within motor vehicle emissions, while automatically calculating the Air-Fuel Ratio (λ). Featuring an entirely English-language operating interface and an LCD display, the instrument supports automatic zeroing, data storage, built-in printing capabilities, and an RS232 communication interface, thereby facilitating convenient data management and network integration. The device supports both standard idle and dual-idle testing modes, making it widely applicable in motor vehicle inspection stations, environmental emission testing agencies, and automotive repair and maintenance centers.
Features
▪ Used to measure the concentration of HC, CO, CO2, O2, NO in the Automobile Exhaust Gas
▪ Two kinds of Test Function: General and Two-speed idle
▪ Full English Menu Operation LCD (Liquid crystal) screen display
Auto-zeroing
▪ Automatic calculation and show the air-fuel ratio
▪ Equipped with RS232 digital serial communication
▪ interface to facilitate networking Optional function: rotate speed and oil temperature Measurement
▪ Equipped with functions of plate number and time display
▪ Can store and search 500 groups of data, built-in printer
▪ Measurable with Liquefied
▪ Petroleum Gas(LPG),Compressed Natural Gas(CNG),and gasoline and other alternative fuel vehicles
Parameters
| Environment conditions | Temperature: 0~40℃ humidity: ≤95% Atmosphere pressure: 670~106kPa |
| Power supply | AC220V ±10%; 50Hz ±1Hz |
| Measurement range | HC: 0~20000 ppm vol CO: 0~15.0 %vol CO2: 0~20.0 %vol O2: 0~25.0 %vol NO:0~5000 ppm vol λ: 0-9.9999 |
| Response Time | CO, HC, CO2≤10S ; NOx, O2≤15S |
| Indication Error | CO: ±0.06% (relative error: ±5 %) CO2: ±0.5% (relative error: ±5 %) HC:±12ppm (relative error: ±5 %vol) O2: ±0.1% (relative error: ±5 %) NO: ±25ppm( relative error±4 %) |
| Weight | 12.8KG |
| Packing Size | 600*500*330mm |
