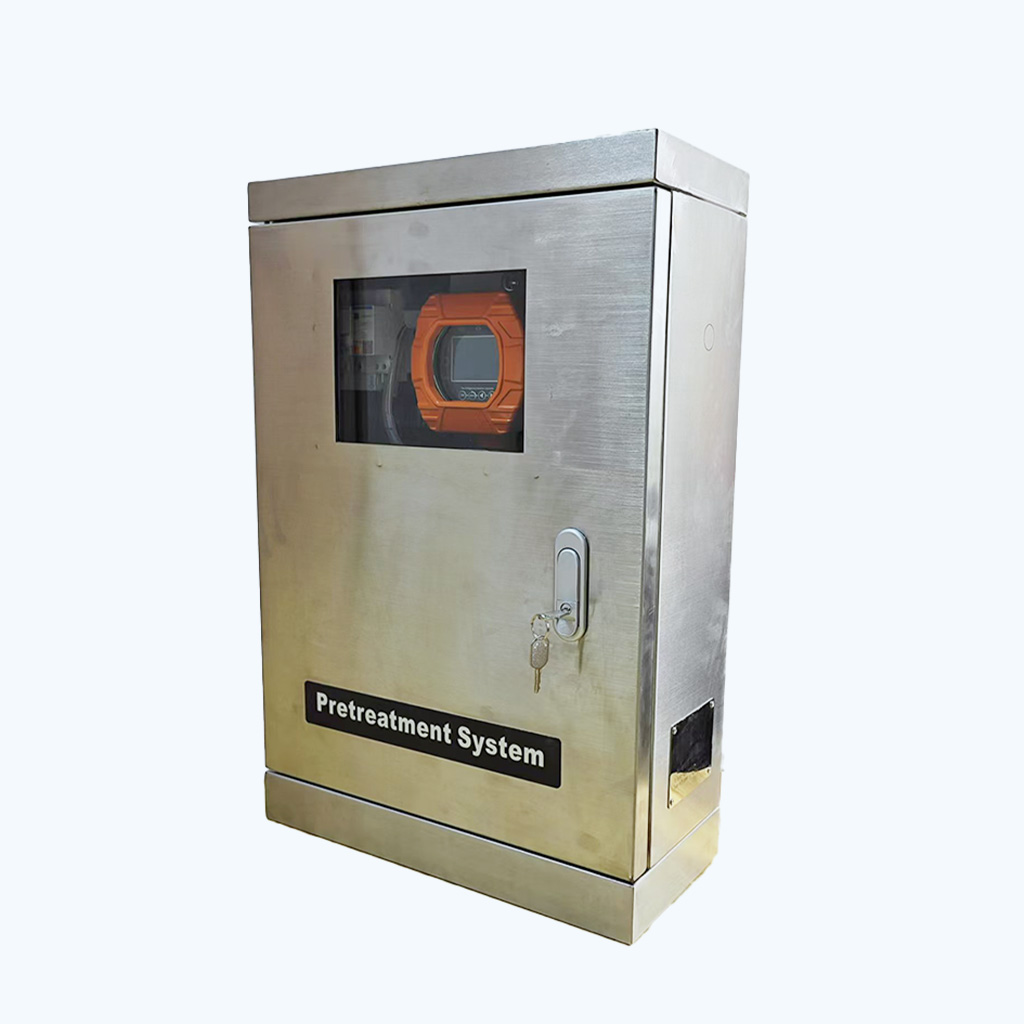

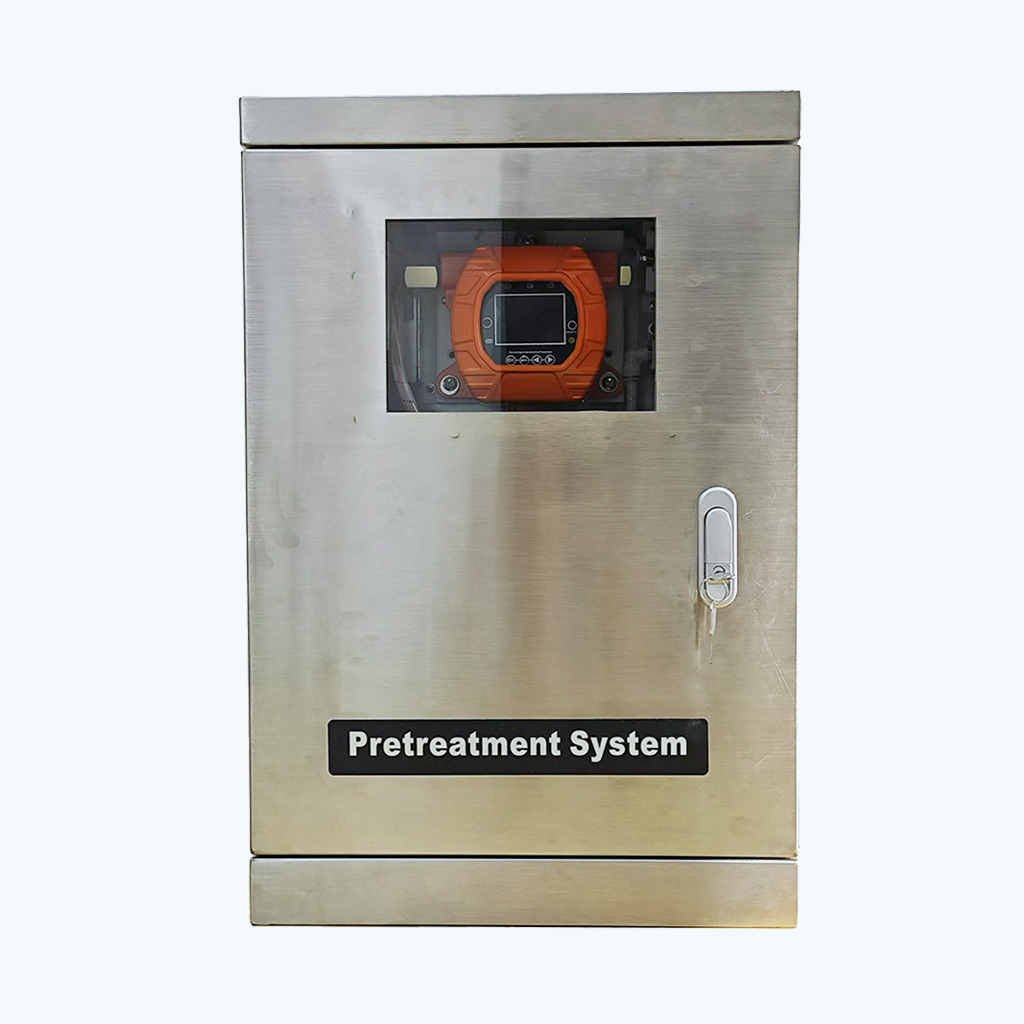

TH-1000B Gas Detection System for Industrial Gas Monitoring
The Simple Gas Detection System TH-1000B provides real-time monitoring of hazardous gas levels, ensuring a safe environment for workers. Equipped with advanced sensors, it allows for quick response to potential gas leaks, helping to prevent accidents and maintain compliance with safety regulations.
Overview

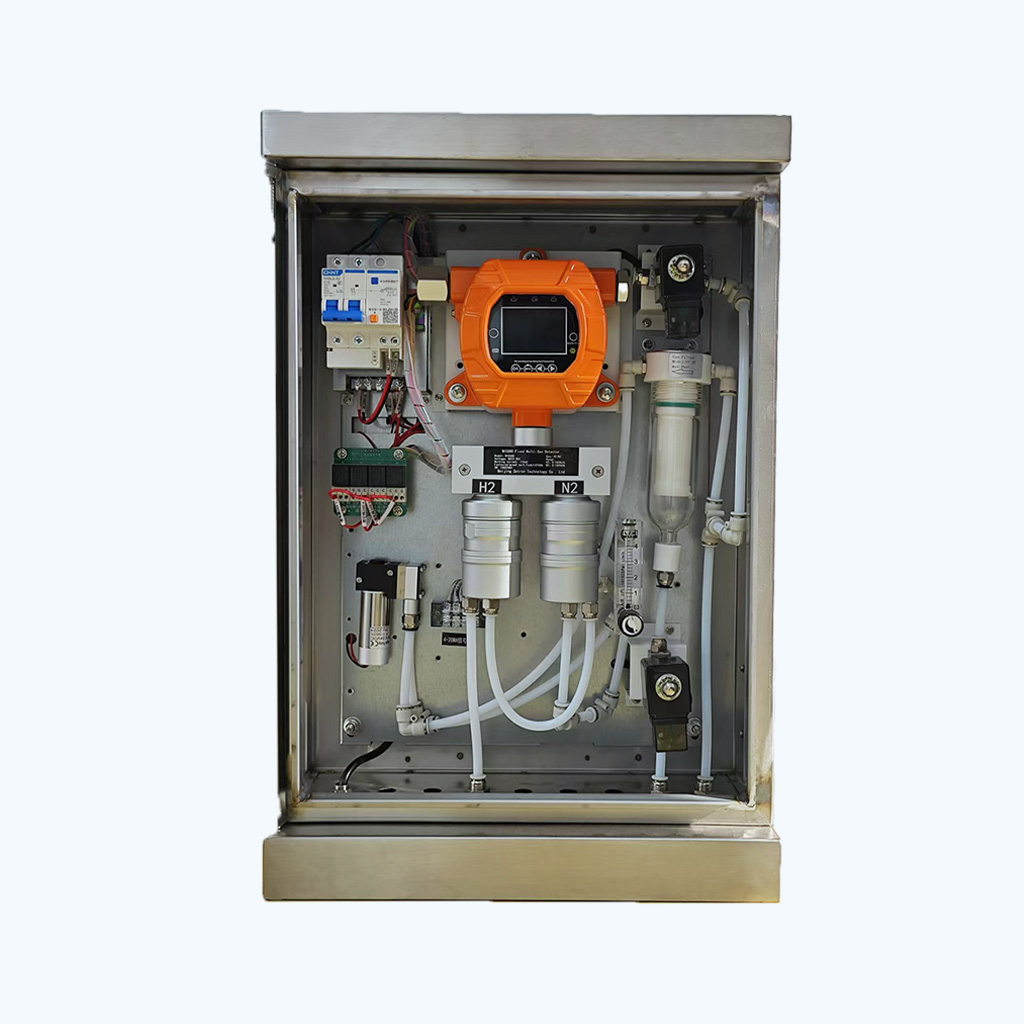

The on-line monitoring and pretreatment system is applied to 24-hour continuous on-line monitoring of on-site gas concentration. It is equipped with 7-inch high-definition color screen to display on-site concentration, over standard on-site audible and visual alarm (optional), remote signal GPRS, DTU, Lora and other transmission. The gas sensor of international famous brand is adopted. The main detection principles include: gas sensor based on the principles of electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photo ion, etc..
Features
▪ Optional 1-6 kinds of compound gas detectors
▪ Concentration display unit can be switched freely
▪ A variety of communication methods are available
▪ Infrared remote control
▪ Rich human-machine interface(1.7" HD color screen, display real-time concentration, alarm status).
▪ High temperature gas detection (optional).
▪ Data recovery function, you can select partial or full recovery in case of misoperation
▪ The maximum value and minimum value can be set to be displayed or not
▪ Multiple alarm modes, multi-directional indication of alarm status during alarm
▪ Multiple alarm mode settings: low alarm, high alarm, interval alarm, weighted average alarm
▪ Misoperation identification function: concentration calibration misoperation is automatically identified and prevented to avoid bad human factors
▪ Zero point automatic tracking, long-term use is not affected by zero point drift
▪ Multi-stage calibration of target point to ensure linearity and accuracy of measurement
▪ Wide working temperature: -40～+70℃, support temperature compensation
Intrinsically safe circuit design, explosion-proof, with secondary lightning protection and anti-static capability. Meet national standards and resist high-intensity pulse surge current impact. With anti-reverse connection function. Meets EMI, EMC standards
Parameters
| Detecting gas | Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc. |
| Testing range | 0～1、10、100、1000、5000、50000ppm（mg/m³）；0～100%LEL；0～200mg/L；0～20%, 50%, 100%VOL； Other ranges are optional |
| Resolution | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm; 0.1%LEL; 0.1mg/L; 0.01%VOL, 0.001%VOL; other resolutions can be customized |
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, etc., depending on gas type, range, site environment and user requirements. |
| Detection accuracy | ≤±3%F.S (Higher precision can be customized) |
| Linearity | ≤±2% |
| Repeatability | ≤±2% |
| Uncertainty | ≤±2% |
| Recovery time | ≤30 second |
| Response time | T90≤20 second |
| Signal Output | Bus system RS485 (RTU), three (four) wire system 4～20mA, optional: 0～20mA, 1～5V, 0～5V, 0～10V, wireless transmission, network transmission, SMS alarm. |
| Working Environment | Temperature：-40℃～+70℃，Humidity：10%～95%RH |
| Display | 1.7-inch high-definition color screen display |
| Working Voltage | 12 to 36VDC, 24V, 1A or more than 1A DC regulated switching power supply as standard for a single device |
| Power | 24V, 2.1A switching power supply can drive 40 toxic gas detectors, or 15 combustible and infrared gas detectors |
| Alarm method | Three level alarm, alarm point can be set. Live sound and light alarm (optional) |
| Protection level | IP65 (Probes) |
| Explosion-proof level | ExdⅡCT6(Probes) |
| External size | 400×180×600mm(L×H×W) |
| Weight | 1.8Kg |
Application Scenes
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, storage, flue gas analysis,
air treatment and all other occasions that require fixed installation and online detection of gas concentration.
