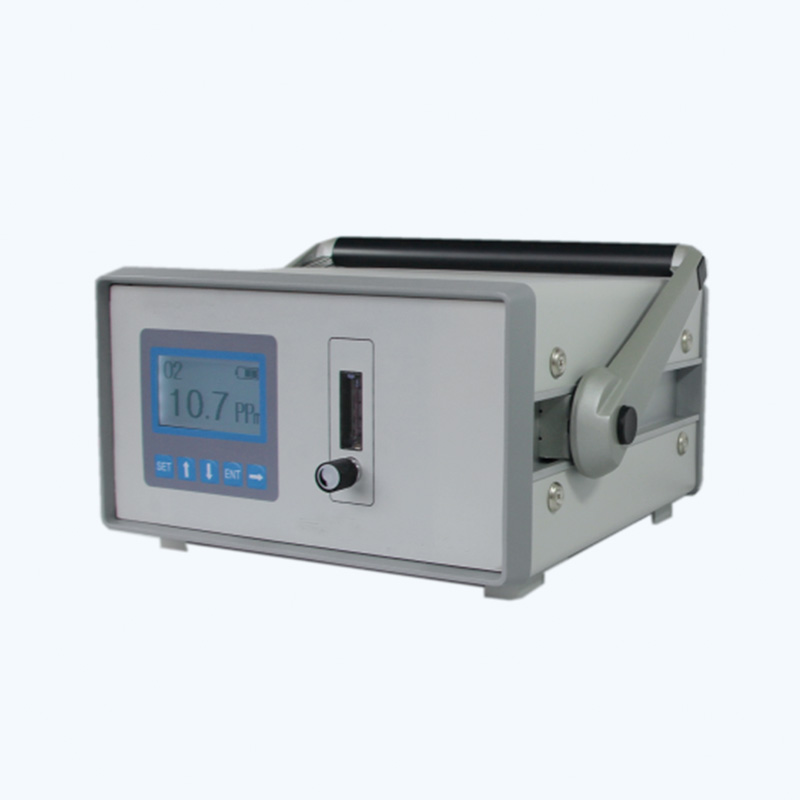

MIC300-A08 Oxygen Analyzer for Industrial O2 Measurement
The MIC300-A08 Oxygen Analyzer is designed for precise monitoring and analysis of oxygen levels in various industrial applications, ensuring optimal performance and safety.
Ideal for use in laboratories, manufacturing processes, and environmental monitoring, this analyzer provides real-time data for improved decision-making. Its user-friendly interface and reliable readings enable professionals to maintain regulatory compliance and enhance operational efficiency across a range of sectors.
Features
Oxygen analyzer features a 128*64 LCD display , a built-in high-performance lithium battery, and is portable and easy to use . It is a new type of intelligent industrial gas analyzer developed using imported electrochemical and ion flow technologies combined with advanced single-chip microcomputer technology . It is widely used for rapid analysis of oxygen content in air separation nitrogen production, chemical processes, high-temperature sintering furnace protective gases, electronic industry protective gases , and in the glass, building materials, and various mixed gases industries.
Parameters
| Measurement range | 0.01 % - 100% (measuring range can be customized) |
| Resolution | 0.01%/0.1% |
| Measurement accuracy | ≤±2%FS |
| Repeatability | ≤±1%FS |
| Stability | ≤±1%FS /7d |
| Response time | T 90 ≤30S |
| Sample gas flow rate | 400±50mL/min |
| Sample gas pressure | 0.10 MPa ≤ Inlet pressure ≤ 0.20 MPa |
| Sample gas temperature | 0-50 ℃ |
| Ambient temperature | -5℃ to + 50 ℃ |
| Ambient humidity | ≤90%RH |
| Charging power supply | 100～240VAC 50/60Hz 1A |
| Standby time | A single charge can last for 8-12 hours. |
| External dimensions | 2 60mm (width) x 145mm (height) x 330mm (depth) |
| Instrument weight | Approximately 4 kg |
| Measurement principle | Electrochemical sensors |
| Measuring medium | Common gases include inert gases , hydrogen, carbon dioxide, carbon monoxide , and hydrocarbons (if it contains SO2, NOx, NH3, H2S, etc., it must be specified when ordering). |
| Instrument lifespan | More than five years (normal use) |
| Sensor lifespan | More than two years (normal use) |
| Precision air pump | for the sample gas (must be specified when ordering). |
