MIC600S Trace Oxygen Analyzer for Low-Level O2 Measurement
The MIC600S Trace Oxygen Analyzer is designed for precise measurement of oxygen levels in a variety of industrial applications, from chemical processing to aerospace manufacturing.
It enables users to ensure optimal product quality and safety by monitoring trace oxygen concentrations in gas and liquid samples. With its robust design and advanced sensor technology, the MIC600S is ideal for environments requiring stringent oxygen control, helping businesses improve efficiency and maintain compliance in their operations.
Overview
MIC600S Trace Oxygen Analyzer is a high-precision, online instrument developed by our company for detecting and analyzing trace oxygen in inert gases. This instrument utilizes an electrochemical sensor combined with single-chip microcomputer control technology, resulting in high measurement accuracy and ease of use.

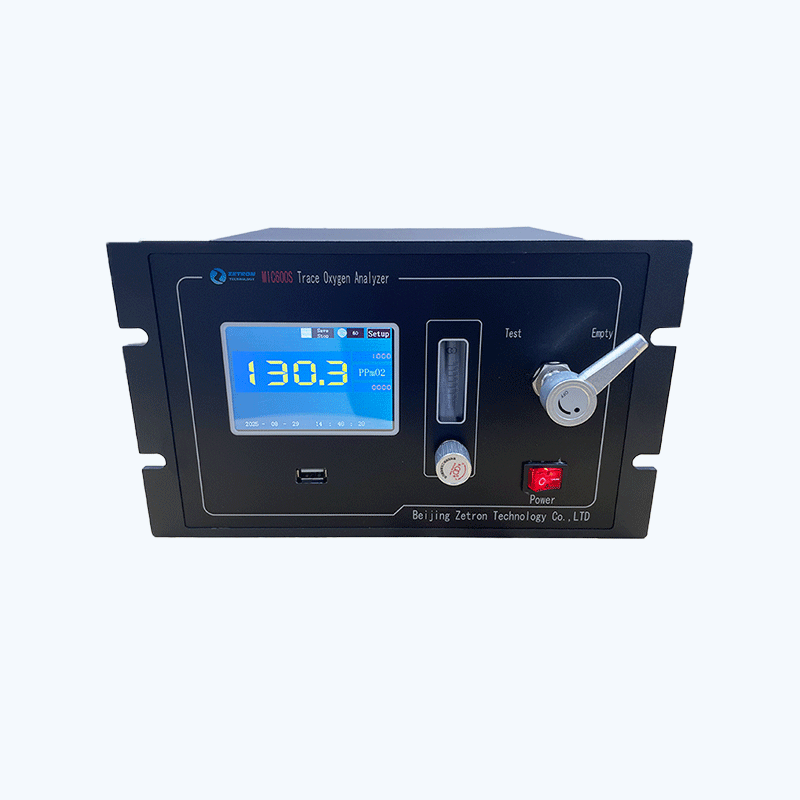

The instrument features a 3.5-inch touchscreen display with a narrow viewing angle and is intuitive and eye-catching. Its fully Chinese menu operation is easy to understand, simple, and reliable. It features control point output, an over-limit self-alarm (buzzer), and customizable control modes. It also includes a standard 4-20mA current output port and other external connections. When unattended, it can periodically record measurement values. When a measurement result exceeds the set alarm value , the instrument automatically alarms.
Features
▪ Integrated design, small size, light weight, simple structure, reasonable layout;
▪ Parameters such as purity, furnace temperature, thermocouple temperature, zirconium tube potential, etc. can be displayed for easy reference.
▪ Parameters such as standard current output, purity limit alarm, purity limit switch output, etc. can be set and modified by buttons;
▪ The measurement and control of the sensor furnace temperature are completed by the single-chip microcomputer, and it has the function of automatically cutting off the heating power supply when over-temperature occurs, which is safe and reliable;
▪ Built-in flow control system provides a stable sample gas flow for the sensor, so that the instrument has better stability and reliability;
▪ The instrument analysis process is continuous, and the range is automatically switched, which can be used for online analysis or laboratory analysis, etc.
▪ The real-time data storage function is convenient for users to check historical records, and can store up to 3,000 data. When the data record is full, it will be overwritten from the first data.
Parameters
| Model | MIC600S |
| Measuring range | 0.01～ 10/100 / 1000 PPm O2 |
| Accuracy | ≤±2%FS |
| Stability | zero drift ≤ ± 1 % FS/7d; Range drift ≤ ±2% FS/7d |
| Repeatability | ≤±1% |
| Sample gas flow rate | 400 ~ 500 ml/min |
| Response time | T95 < 5s |
| Sample gas pressure | inlet pressure ≤ 0.5MPa |
| Minimum resolution | 0.01 ppm |
| Control output | dual relay contact output, can be set arbitrarily |
| Contact capacity | 220VAC 2A; 24VDC 2A |
| Analog output | 4~20mA current signal |
| Overall dimensions | 244 (width) × 142 (height) × 230 (depth) |
| Opening size | 210 + 1 (width) × 132 + 1 (height) |
| Working environment | Temperature: -5℃～+50℃; Humidity: ≤90%RH |
| Working power supply | 100 ~220V AC , 50/60HZ |
| Fuse | 220V/1A (built into the power socket, one for backup) |
| Weight | about 3 kg |
Application Scenes
The instrument is suitable for the detection of oxygen content in gas in gas making, chemical industry, metallurgy, electronics industry, medical treatment and other fields.
