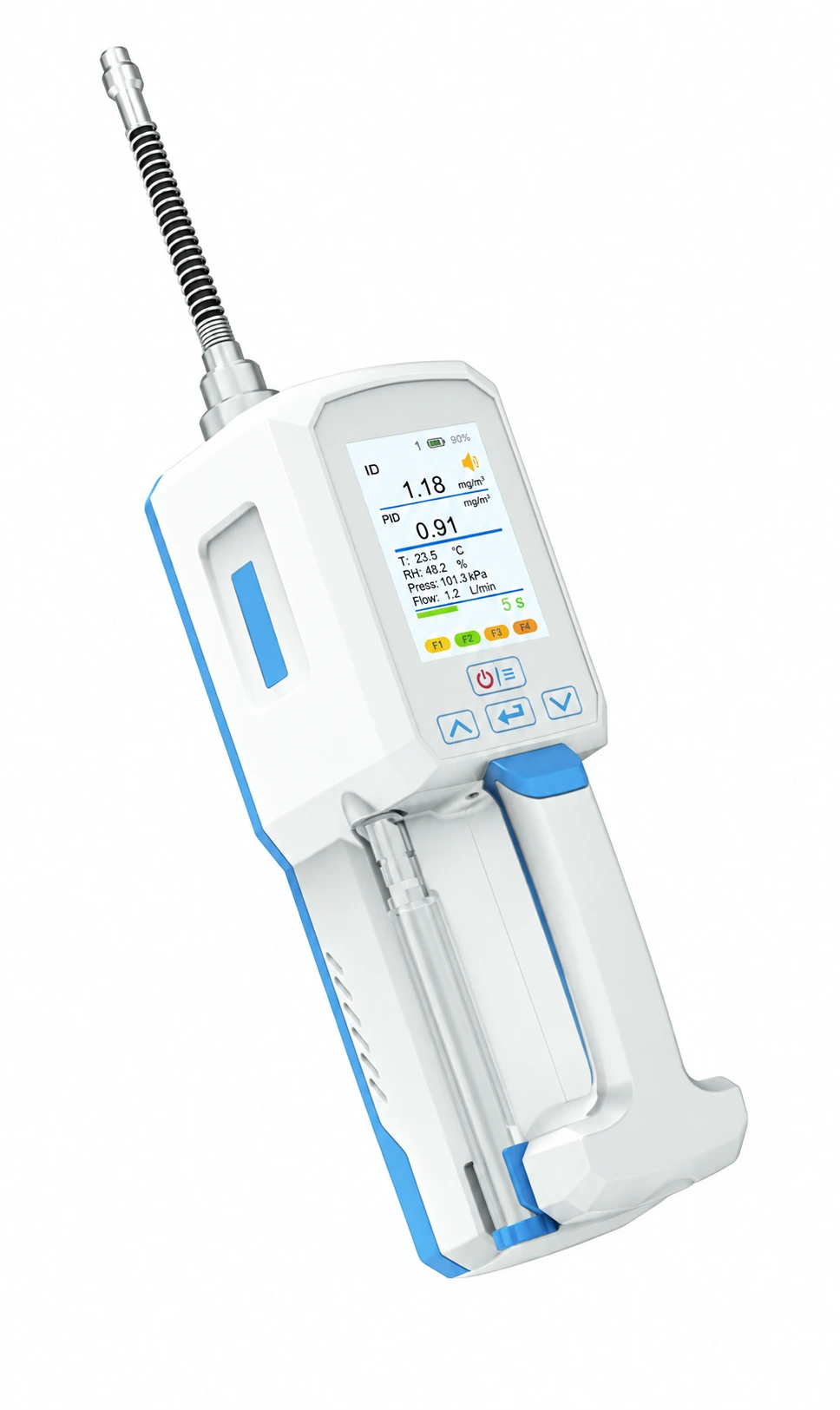

PTM100-H Handheld VOC Analyzer
Product Introduction
An explosion-proof handheld analyzer for environmental inspection and enforcement. The standard FID and optional PID cover organic-gas screening across a 0–50,000 ppm FID range. BeiDou positioning and UTC timestamps link readings to their location and measurement time for traceable records. Referenced methods include GB 20950 and HJ 733.
FEATURES
Environmental enforcement
of fugitive VOC emissions
LDAR and fugitive-emission enforcement.
Technical Specifications
|
Parameter |
Specification |
|
Measurement range |
FID: 0–50,000 ppm (methane) PID: 0–2,000 ppm (isobutylene) |
|
Detection limit |
FID: 0.5 ppm (methane) PID: 0.5 ppm (isobutylene) |
|
Accuracy |
FID: ±10% of reading or ±1 ppm, whichever is greater PID: ±10% of reading or ±0.5 ppm, whichever is greater |
|
Repeatability |
FID: 2% at 500 ppm methane PID: 1% at 100 ppm isobutylene |
|
Response time (T90) |
FID: ≤3.5 s at 2,000 ppm methane PID: ≤3.5 s at 500 ppm isobutylene |
|
Hydrogen endurance |
≥15 h |
|
Sampling flow |
≥500 mL/min |
|
Operating conditions |
−10 to 45°C, ≤95% RH, non-condensing |
|
Weight |
1.6 kg |
