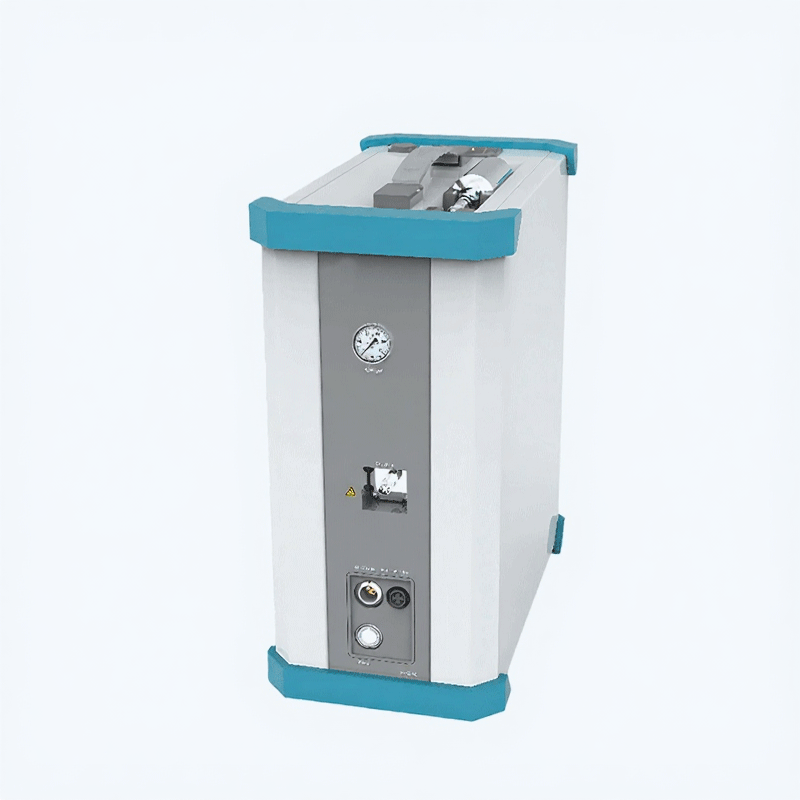

PTM400 Portable VOC Analyzer for Volatile Organic Compound Detection
The PTM400 Portable VOC Analyser is designed for professionals in environmental monitoring, industrial safety, and indoor air quality assessments, providing accurate and real-time measurements of volatile organic compounds.
Whether conducting site evaluations, ensuring compliance with health regulations, or assessing air quality in confined spaces, the PTM400 delivers reliable data in a compact and user-friendly format. Its portability allows for on-the-go testing, making it an essential tool for fieldwork and urgent assessments in various industrial and commercial settings.
Overview
The PTM400 portable VOC analyzer, combining chromatographic analysis technology with a hydrogen flame ionization detector, fully complies with the requirements of HJ1012-2018 and HJ38-2017 standards, and can be used to test total hydrocarbons, methane, non-methane total hydrocarbons and benzene series in ambient air and exhaust gas. The PTM400 is a highly integrated portable instrument that collects the sample to be tested and enters the quantitative loop, which is switched into different chromatographic columns for separation through valves. The total hydrocarbons and methane or benzene series enter the FID detector in turn, and the concentration of each component is measured respectively. The built-in processor obtains the values of total hydrocarbons, methane, non-methane total hydrocarbons and benzene series.
Features
▪ Highly integrated
Integrate the online monitoring system configuration into the portable instrument, with multiple application scenarios, and both online analysis and laboratory offline analysis capabilities
▪ High temperature throughout the process
High temperature heating throughout the process to avoid condensation and loss of samples; special treatment of sampling pipelines to minimize residue and adsorption
▪ Safe and reliable
Adopt solid-state hydrogen storage module, safe and stable, high hydrogen purity
▪ Low maintenance cost
Built-in gas source, reusable; no special consumables, consumable parts support separate replacement
▪ Intelligent and friendly
Automatic flame sensing, automatic judgment of ignition status and flameout protection; The software is fully functional and easy to use, the data handheld terminal (PDA) is wirelessly connected to the host, and the communication distance can reach 50 m
▪ Easy to carry
The single machine is light in weight, easy to carry and operate
Parameters
▶ Functional parameters
| Main parameters | Parameter range |
| Detection object | Total hydrocarbons, methane, non-methane hydrocarbons |
| Methane, ethane, propane, ethylene, acetylene, propylene, n-butane, isobutane, 1,3-butadiene, etc. (optional) | |
| Benzene, toluene, ethylbenzene, o-, m-, p-xylene, isopropylbenzene, styrene (optional) | |
| Detection principle | GC -FID , chromatographic column separation |
| Measuring range | 0 ~35000 mg / m3 , range can be customized |
| Detection limit | 50 ppb (methane); 50 ppb (benzene) |
| Repeatability | ≤1.5 % |
| Accuracy | ≤ ± 1%FS |
| Analysis cycle | Total non-methane hydrocarbons ≤ 1min , benzene series ≤ 3.5min |
| power supply | AC220V 50HZ or DC24V Battery life can last more than 4 hours in continuous use |
| Work Environment | -10~50 ° C , 10 ~90% RH |
| weight | About 12.5kg |
▶ Packing List
Standard configuration:
▪ 1 PTM400 host
▪ 1 metal hydride hydrogen storage bottle
▪ 1 dedicated power cord
▪ Rechargeable battery module
▪ Data handheld terminal (PDA)
▪ 1 USB software key
▪ Gas sampling line (including 1 pre-filter)
▪ 1 software operation manual
▪ Portable transport box
Optional configuration:
▪ GC-FID benzene measurement module
Optional accessories:
▪ HY1011 flue gas flow rate monitor
▪ 4G DTU module (LAN/WIFI)
▪ HY205 vacuum box gas sampler
Application Scenes
VOC control monitoring equipment operation and maintenance inspection
Pollution source online monitoring system comparison
Enterprise emission assessment
Environmental monitoring law enforcement
Plant boundary NMHC online monitoring system comparison
