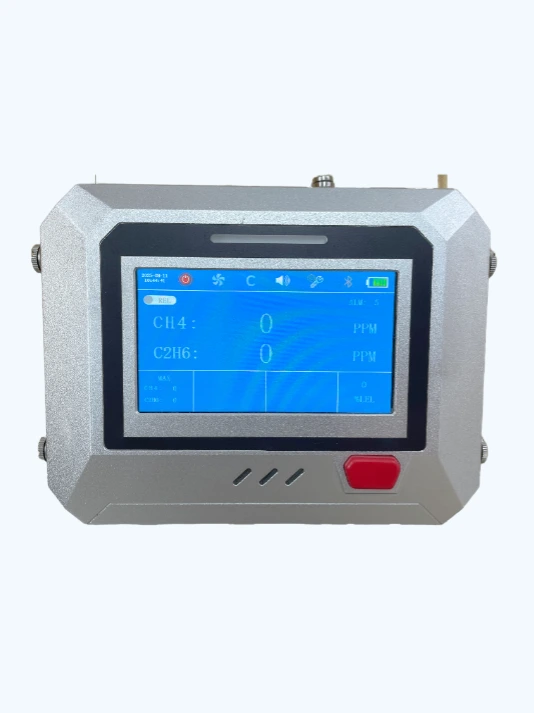

PTM600-EG Portable laser methane and ethane detector
Utilizing advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, the PTM600-EG is primarily used for natural gas pipeline leak detection. It simultaneously detects methane and ethane content, enabling differentiation between natural gas and biogas. Compared to traditional gas leak detection technologies, laser technology can quickly determine if a natural gas leak is present, offers higher detection sensitivity, and offers a longer service life, making it a high-tech product aligning with the times.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
- Simultaneous detection of methane and ethane.
- Highly specific, detecting only methane and ethane reactions.
- Intrinsically safe design.
- 10-year lifespan.
- Full range of ppm, %LEL, and %VOL for all-scenario applications.
- One-touch power on and intuitive touchscreen for easy and fast operation.
Technical Specifications
| Project | Describe |
| Measuring gas | Methane, ethane |
| Measurement method | Pump suction |
| Maximum inspiratory capacity | 1.5L/min |
| Range | Methane: 0~100000ppm; Ethane: 0~30000ppm |
| Response time | 0.5S |
| Sensitivity | 1ppm |
| power supply | Lithium-ion battery 7.2V 6800mAh or 12VDC |
| Working hours | Battery life ≥10 hours, standby ≥24 hours |
| Operating temperature | -25℃~50℃ |
| Operating humidity | <90 RH (non-condensing) |
| Explosion-proof signs | Exib IIB T4 Gb |
| Protection level | IP66 |
| Curb weight | ≤1500g |
| Dimensions | Length 170mm*Width 70mm*Height 130mm |
Probe Options
Applications
Municipal underground pipeline inspection, courtyard pipeline inspection, station inspection,
long-distance pipeline inspection, and special occasion inspection.
