IP65 Meteorological Monitoring Station RS485 / RS232 Outdoor Air Pollution Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Outdoor Air Pollution Monitor | Software | Cloud Platform |
|---|---|---|---|
| Sensor Type | Laser Scattering Method | Product Weight | 5 KG |
| Product Size | 340*235*220mm | Material | Aluminum |
| Output Signal | GPRS(Standard), RS485(Optional) | Install Type | Hanging, Lifting |
| High Light | IP65 Meteorological Monitoring Station,RS485 Outdoor Air Pollution Monitor,RS232 Outdoor Air Pollution Monitor |
||
Product Description

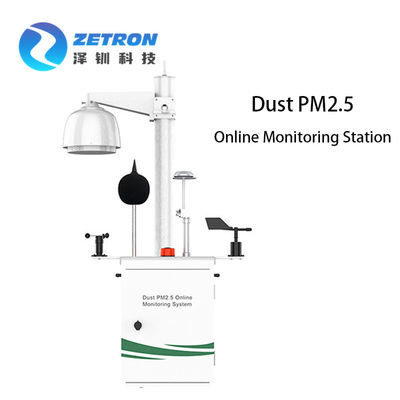

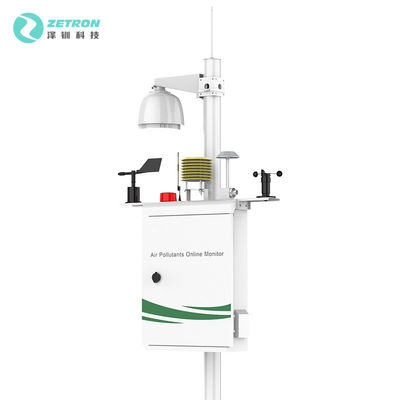

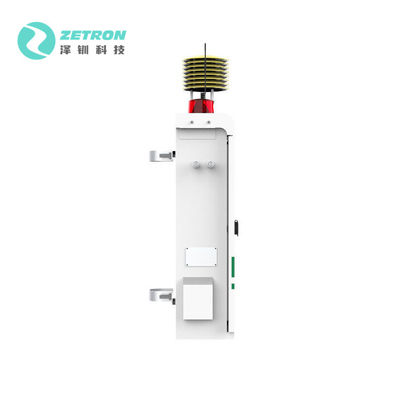

Meteorological monitoring station
PM2.5|PM10|CO|SO2|NO2|O3|TVOC|Noise|Wind|Temperature|Humidity
OVERVIEW
MS800A Air Quality Monitoring Station,data upload cloud platform, real-time early warning, modular design, free parameter selection, online monitoring PM10, pm2.5, Co, SO2, NO2, O3, TVOC, TSP, etc.
MS800A is our new air quality online multi-parameter monitoring system, the main monitoring gas type include: PM2.5, PM10, CO, SO2, NO2, O3, TVOC, temperature and humidity, wind speed and direction , noise and atmospheric pressure.
Outdoor LED screen, real-time display of monitoring data ,with solar power to provide real-time uninterrupted monitoring data.
FEATURES & BENEFITS
- Optional outdoor large screen, real-time display of test data.
- Optional solar power supply, continuous monitoring of equipment in the state of power outage.
- Integrated GPRS communication technology, real-time monitoring of atmospheric environment data, real-time transmission of data, real-time monitoring equipment operating status.
- IP65 protection design, lightning protection against surge.
- Realize various types of parameter acquisition, automatically upload network platform, automatically publish data.
- Using 32-bit high-speed processing core chip.
- Small size, modular design, grid flexible layout.
- Realize multi-parameter automatic monitoring and anti-interference technology design.
- High precision and reliable performances for outdoor and industrial environments.
APPLICATION
It could be used in a variety of environments, industrial production environment monitoring, tunnel traffic environment monitoring, and urban environmental monitoring. The atmospheric environmental data monitoring and analysis system can improve the processing and management of air pollution monitoring data, and provide decision-making basis for environmental planning and environmental assessment.
SPECIFICATIONS
| Data Efficient Transmission Rate | ≥95% |
| Remote Control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission Network | Automatically and real-time upload data, optional 4G/ GPRS/WIFI |
| Box Material | Q235 spray, Stainless box optional |
| Scaffold Material | Q235 |
| Scaffold Height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning Arrester | Length 1m, Q235 Galvanized material |
| Working Environment | Temperature: -30~70℃ Humidity: 10%RH~90%RH Pressure: 65~108Kpa |
| Protection Grade | IP65 |
| Power Supply | AC220V/50Hz/Solar power (optional) |
