0~1000ppm CO Detector Gas Alarm For Home Security OEM Accept

Place of Origin China
Brand Name Zetron
Certification CE ISO EN 50291 approved
Model Number ZKD-C618
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Carbon Monoxide Alarm Detecting Gas CO/Carbon Monoxide
Material ABS Plastic Certificate CE ISO EN 50291 Approved
Sensor Electrochemical Sensor Color White
Warranty 1 Year Alarm Mode Audible And Visual Alarm
Size 100*100*27mm Weight 160g
High Light

1000ppm CO Detector Gas Alarm

,

ISO CO Detector Gas Alarm

,

OEM Home CO Detector

Leave a Message
Product Description

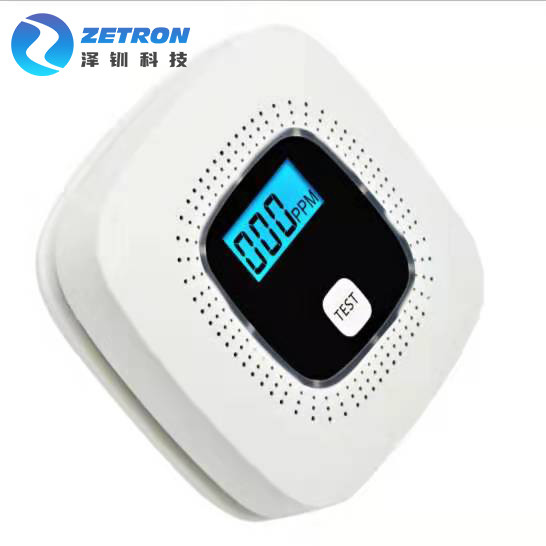

ZKD-C618 Carbon Monoxide / CO Alarm

OVERVIEW


ZKD-C618 is a smart carbon monoxide alarm adopts high quality electrochemical sensor, combined with advanced electronic technology and sophisticated process, with the advantages of stable operation and long service life.
ZKD-C618 is certified by CE, EN50291,RoHS,REACH, reliable, safe and reliable.



Detectable Gas Carbon Monoxide (CO) Mode ZKD-C618
Detect Range 000~1000 ppm Sensor Type Electrochemical sensor
Battery 3*1.5V AA Battery Alarm Mode Voice&Red LED light flash
Alarm current <200mA Static current <80uA
Weight 160g Dimensions 100*100*27mm
Temperature 0~40 ℃ Humidity 20~≤90%RH
Sensitivity/Alarm Time Alarm Standard: EN (EN 50291)
50PPM: within 60 to 90 minutes;
100PPM: within 10 to 40 minutes;
300PPM: within 3 minutes;
400PPM :immediately Alarm




FEATURES


AUTOMATIC SELF-TEST FUNCTION
1. This CO alarm has automatic self-test function to detect ant failure of hardware, which is performed about every 1minute in normal standby status.

5 YEAR SENSOR LIFE
1. Motorola IC control, without false alarming
2. High accuracy electrochemical sensor.
3. When the concentration of CO reaches the alarm setting value, the detector emits an audible and visual alarm indication.


LOW POWER STANDBY
1. 3*1.5V AA battery.
2. Low current consumption, ultra-long standby time.
3. Low battery Indicator:Chirp every 30s as battery lower than 3.3V with green LED flashing and Lb on LCD


DIGITAL DISPLAY
1. Displays the level of carbon monoxide the unit is sensing. Shows CO level in PPM.
2. Standby: Green Led flashes once every 30s. Alarm: Red Led quickly flashes 4 times with unit chirping every 5 seconds, then repeat.
Mal-function Indicator: Chirp every 30s with green LED out and Err on LCD.


Easy Installation
The detector must be screwed to your ceiling because that's where smoke heads for when something starts to burn. Do not installed in the high humidity places such as bathroom. And not in the kitchen, you can safely place an smoke detector close to, but not in the kitchen.
1. Choose a right surface and fix the base of the detector with screws
2. Insert 3*1.5 AA batteries into the battery box following the indication of positive and negative poles.
3. Place the host on the base and screw it tight.
4. Installation completes.
Note: There should be no shelter within 0.5 m of the detector



APPLICATION


The device is highly sensitive, can respond quickly, accurate measurement of low level concentration of smoke.
It's suitable for homes, office buildings, factories, schools, hotels, warehouses, entertainment places, trains etc.
