MS104K-S Portable Multi Gas Detector Honeywell 4 In 1 Gases Large Capacity Data

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS104K-S
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Range 0-10, 100ppm, Other Ranges Can Be Customized Display Mode 2.31 Inch 320X240 High-definition Color Screen Display, 4-button Operation
Explosion-proof Mark Exia II CT4 Ga Working Temperature -40℃~+70℃
Dimension 130×68×34mm(L×W×H) Weight 200g
High Light

portable multi gas detector honeywell

,

4in1 portable multi gas detector honeywell

,

large capacity data portable multigas detector

Leave a Message
Product Description

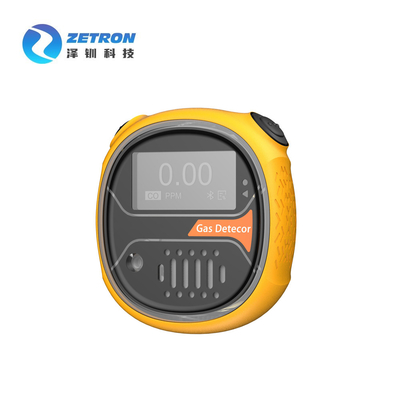

Portable Germane Detector MS104K-S



OVERVIEW



MS104K-s portable germane tester is a mobile compound gas detector for rapid detection of germane concentration. It can detect up to 1 to 4 gases at the same time and has a large-capacity data storage function. The MS104K-s portable germane tester uses a 2.31-inch high-definition color screen to display the concentration in real-time, and uses a well-known brand of the gas sensor. The main detection principles are electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoion.



FEATURES





●Waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference,

Passed the national standard test and CMC measurement instrument production license certification

●Protection level IP65

●2.31-inch high-definition color screen displays real-time concentration, alarm, time, temperature, humidity, storage, communication, power,

Charge status and other information, the menu interface uses high-definition simulation icons to display the function names of each menu

●Large-capacity data storage function, supporting 100,000 data storage capacity. Support real-time

Storage, timing storage, or only alarm concentration data and time, support local viewing and deleting data,

The data can also be uploaded to the computer through the USB interface, and the data can be analyzed, stored, and printed with the host computer software.

●USB charging port, overcharge, over-discharge, overvoltage, short circuit, overheat protection, 5-level accurate power display

●Using 2100mAH rechargeable polymer battery  can work continuously for a long time

●Sound and light alarm, vibration alarm, visual alarm, under-voltage alarm, fault alarm, shutdown alarm.

●The alarm value can be set, and the alarm mode can be selected as low alarm, high alarm, and interval alarm

●It can be selected to detect 1~4 kinds of gases at the same time, and the unit can be switched freely

Optional units: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L

●Three display modes can be switched: display the concentration of four gases at the same time, the concentration of the single-channel gas and the real-time curve are displayed in large fonts, each channel

It can be switched between automatic circulation or manual circulation. You can set whether to display the maximum value, the minimum value, and the gas name, and you can view the history.

●Chinese and English interfaces can be selected, the default Chinese interface

●Data recovery function

●Zero-point automatic tracking, long-term use will not be affected by zero-point drift.

●Multi-level calibration

●Mistaken operation of concentration calibration is automatically identified and prevented.

●Support OEM or ODM customization, RS485 communication is optional

●Optional environmental temperature and humidity measurement function, more other functions or communication interface can be customized.



PARAMETER



Detection gas: Germane GeH4, optional: simultaneous detection of 1 to 4 gas concentrations, depending on the sensor and site environment

Detection range: 0-10, 100ppm, other ranges can be customized

Resolution: 0.01ppm higher resolution can be customized

Detection principle: electrochemistry, other principles are optional, according to gas type, range, site environment and user needs

Sensor life: 2-3 years

Detection method: diffusion measurement

Display mode: 2.31 inch 320X240 high-definition color screen display, 4-button operation

Detection accuracy: ≤±3%(F.S)

Alarm mode: sound and light alarm, vibration alarm, visual alarm, sound and light + vibration + visual alarm, close alarm optional

Response time: T90≤30 seconds

Recovery time: ≤30 seconds

Power supply: DC3.7V

Battery capacity: 2100mAH high-capacity rechargeable polymer battery

Use environment: temperature -40℃~+70℃; relative humidity ≤0~95%RH (non-condensing occasion)

Temperature detection: -40℃~+70℃, accuracy ±0.5℃, optional function

Humidity detection: 0~100%RH, accuracy ±3%RH, optional function

Data storage: standard configuration of 100,000 pieces of data capacity, support local viewing, deletion or data export, storage time interval can be set arbitrarily

Communication interface: USB (charging and communication), optional RS485 communication interface

Interface language: Chinese or English can be set, the default Chinese interface

Explosion-proof type: intrinsically safe

Explosion-proof mark: Exia II CT4 Ga

Protection grade: IP65, dustproof and splashproof

Dimensions: 130×68×34mm(L×W×H)

Weight: 200g

Standard accessories: manual, certificate, warranty card, USB charger (including data cable), color paper packaging box, back clip

Optional accessories: high-grade aluminum alloy instrument box, external handheld sampling pump (including 0.4m stainless steel sampling handle or 0.9m retractable sampling handle)
