Ms104k-S Portable Multigas Detector Four In One Ultra Low Power Consumption

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS104K-S
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Range 0-10, 100ppm, Other Ranges Can Be Customized Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
Explosion-proof Mark Exia II CT4 Ga Working Temperature -40℃~+70℃
Dimension 130×68×34mm(L×W×H) Weight 200g
High Light

low power consumption portable multigas detector

,

four in one portable multigas detector

,

ms104k-s handheld multi gas detector

Leave a Message
Product Description

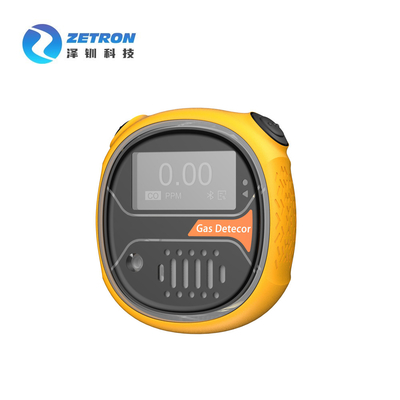

MS104K-S Portable 4in1 Gas Detector



OVERVIEW



MS104K-S is a compact, ultra-low power consumption, mobile gas detector for rapid detection of gas concentration. It can detect 1~4 kinds of gas at the same time at most. It has the function of large-capacity data storage. MS104K-S portable gas detector adopts a high-counting array display to display the concentration in real-time and record storage.
Protection level P65, up to IP68 needs special treatment, waterproof splash, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference.



FEATURES



●Waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference,

Passed the national standard test and CMC measurement instrument production license certification

●Protection level IP65

●2.31-inch high-definition color screen displays real-time concentration, alarm, time, temperature, humidity, storage, communication, power,

Charge status and other information, the menu interface uses high-definition simulation icons to display the function names of each menu

●Large-capacity data storage function, supporting 100,000 data storage capacity. Support real-time

Storage, timing storage, or only alarm concentration data and time, support local viewing and deleting data,

The data can also be uploaded to the computer through the USB interface, and the data can be analyzed, stored, and printed with the host computer software.

●USB charging port, overcharge, over-discharge, overvoltage, short circuit, overheat protection, 5-level accurate power display

●Using 2100mAH rechargeable polymer battery  can work continuously for a long time

●Sound and light alarm, vibration alarm, visual alarm, under-voltage alarm, fault alarm, shutdown alarm.

●The alarm value can be set, and the alarm mode can be selected as low alarm, high alarm, and interval alarm

●It can be selected to detect 1~4 kinds of gases at the same time, and the unit can be switched freely

Optional units: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L

●Three display modes can be switched: display the concentration of four gases at the same time, the concentration of the single-channel gas and the real-time curve are displayed in large fonts, each channel



Ms104k-S Portable Multigas Detector Four In One Ultra Low Power Consumption 0Ms104k-S Portable Multigas Detector Four In One Ultra Low Power Consumption 1Ms104k-S Portable Multigas Detector Four In One Ultra Low Power Consumption 2





PARAMETER



Detection gas
Complex gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, flammable gas EX) or any other single gas, except individual
sensors with high power consumption
Detection range
CO (0 ~ 1000ppm), H2S (0 ~ 100ppm), O2 (0 ~ 30%VOL), Ex (0 ~ 100%LEL),Other range can be customized
Display mode
HD LCD dot matrix display, double button operation
Detection accuracy
≤±3% (F.S)
Response time
T90≤30s
Data storage
Standard 20,000 pieces of data capacity, Support the local view, delete or data export, storage time interval arbitrary Settings
Communication interface
Infrared communication, Optional Bluetooth, LORA communication, etc
Explosion-proof mark
Exia II CT4 Ga
Protection grade
IP65, Dustproof, Waterproof splash
Dimensions

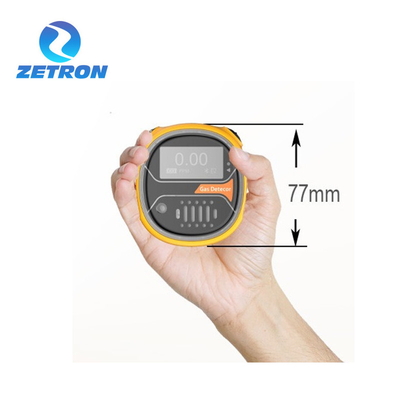

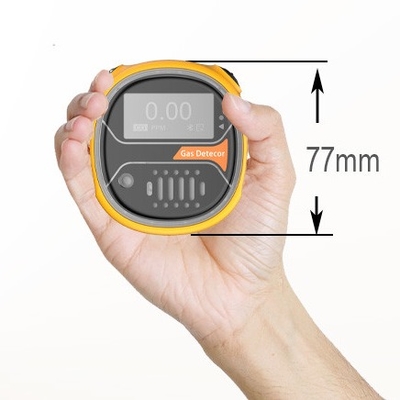

77×68×35mm(L×W×H)
Weight
Less than 150g
