Metal Casing Handheld Carbon Monoxide Tester Pump Suction

  • Metal Casing Handheld Carbon Monoxide Tester Pump Suction
  • Metal Casing Handheld Carbon Monoxide Tester Pump Suction
  • Metal Casing Handheld Carbon Monoxide Tester Pump Suction
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS100
Minimum Order Quantity 1 Piece
Packaging Details paper carton
Payment Terms L/C, D/A, T/T
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sampling Method Pump Suction/dispersive Resolution 1ppm 0.1%LELE,0.1%VOL
Accuracy ±3%FS Display 2.5-inch LCD Screen
Protection Grade IP66 Size 114*60*26mm (L*W*H)
High Light

metal casing handheld carbon monoxide tester

,

pump suction handheld carbon monoxide tester

,

metal casing carbon monoxide meter handheld
Leave a Message
Product Description

Metal Casing Pump Suction

Handheld Carbon Monoxide Detector



OVERVIEW


MS100 portable high precision toxic gas, combustible gas, oxygen gas, etc detector, is a method of continuous detection of toxic gas, combustible gas, oxygen gas, etc concentration in the nature of safety equipment, the use of imported non dispersive infrared technology sensor, can accurately and quickly detect the concentration of toxic gas, combustible gas, oxygen gas, etc, effectively guarantee the life safety of the staff, intelligent level two alarm function greatly meet the requirements of industrial field safety monitoring equipment. Beautiful and professional portable design for mobile use, the product is widely used in the fields of petroleum, chemical, metallurgy, petrochemical, bio pharmaceutical, environmental protection at home and school laboratory.



FEATURES & BENEFITS



  • Imported high-performance sensor, long service life;
  • Built-in high-performance air pump, the flow rate is stable, can switch control;
  • Navigation button, user-friendly and easy to operate;
  • Can store 100,000 sets of data;
  • Intelligent algorithm, more accurate measurement results;
  • 2600mA large capacity lithium battery, continuous working time of more than 20 hours (electrochemical principle);
  • %VOL, %LEL, mg/m3, PPM, PPH, PPB units can be selected;



SPECIFICATION



Number
Type of gas
Range
Respond timeT90 (S)
1
ASH3
0-5ppm
<90
2
Br2
0-20/200ppm
<60
3
C2H2
0-10/100ppm
<90
4
C2H4
0-10/100ppm
<80
5
CH2O
0-10/50ppm
<80
6
CH3SH
0-10ppm
<90
7
CH4
0-100%LEL
<30
8
CL2
0-10/50/200ppm
<90
9
CLO2
0-1/50ppm
<90
10
CO
0-100/500/1000ppm
<30
11
ETO
0-10/100/500ppm
<120
12
H2
0-1000/40000ppm
<60
13
H2O2
0-100/500ppm
<60
14
H2S
0-100/1000ppm
<60
15
HCL
0-50/200ppm
<80
16
HCN
0-50ppm
<30
17
HF
0-10/100ppm
<90
18
NH3
0-20/100/1000ppm
<90
19
NO
0-250/2000ppm
<60
20
NO2
0-20/2000ppm
<60
21
O2
0-30%VOL
<25





Item Description
Detecting gas: H2
Working principle: Catalytic combustion, electrochemistry, infrared absorption spectrum principle
Sampling method: Pump suction/dispersive
Measure range: 0-1000,10000,40000,100%LEL,100%VOL(Optional, other range can be customized)
Resolution: 1ppm,0.1%LELE,0.1%VOL
Accuracy: ±3%FS
Repeatability: <3%
Respond time: T90 ≤30 sec
Alarm method: Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
Operation method: Key operation(Life time of keys:2000000 times)
Material of host: Full metal jacket, strong wear resistant corrosion, feel is good
Working temperature: -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas)
Working humidity: 10%RH ~95%RH,No condensation
Working pressure: 86kPa~106kPa
Battery: Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
Charger: Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
Charging time: ≤6 hours, total charged time 12 hours
Continuous working time: ≥12 hours
Dimension: 135x65x35mm(LxWxH)
Weight About 0.46Kg
Protection grade: IP66
Execution standard: GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
Quality assurance: One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.

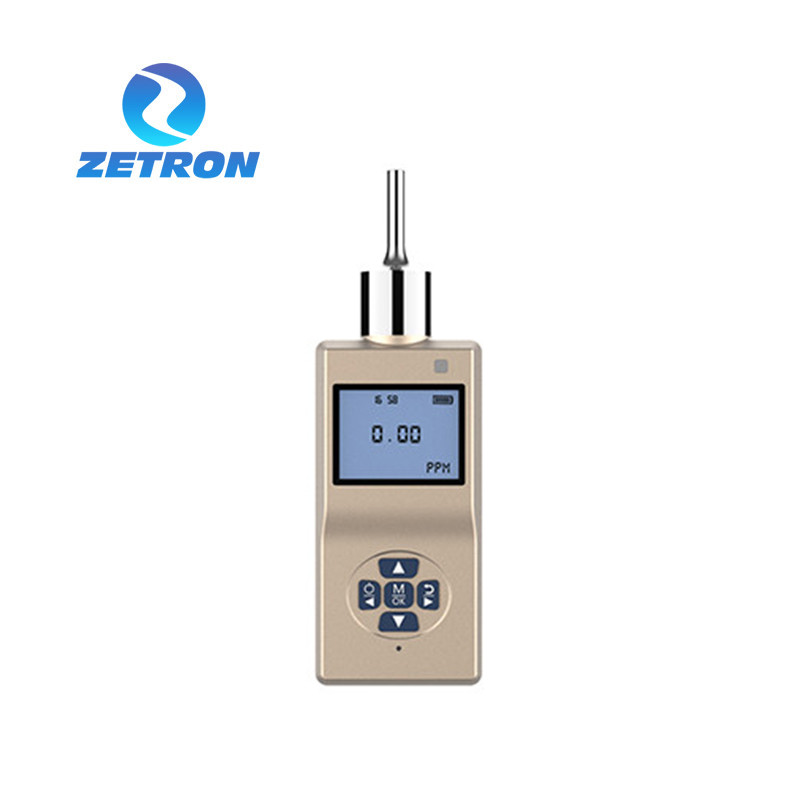

Metal Casing Handheld Carbon Monoxide Tester Pump Suction 0

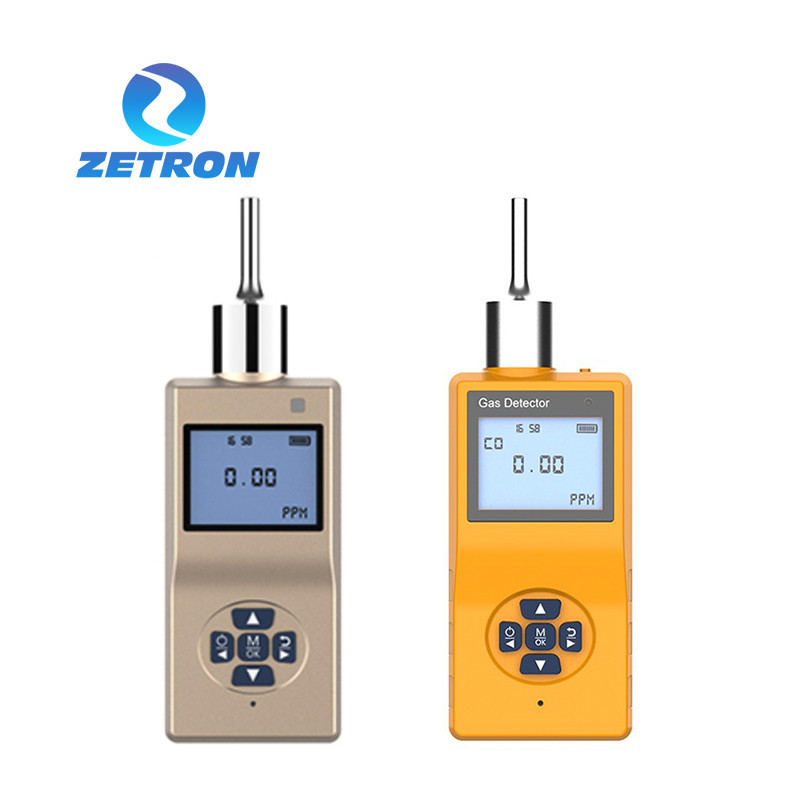

Metal Casing Handheld Carbon Monoxide Tester Pump Suction 1

Metal Casing Handheld Carbon Monoxide Tester Pump Suction 2



APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, explosion prevention.The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.



Metal Casing Handheld Carbon Monoxide Tester Pump Suction 3
