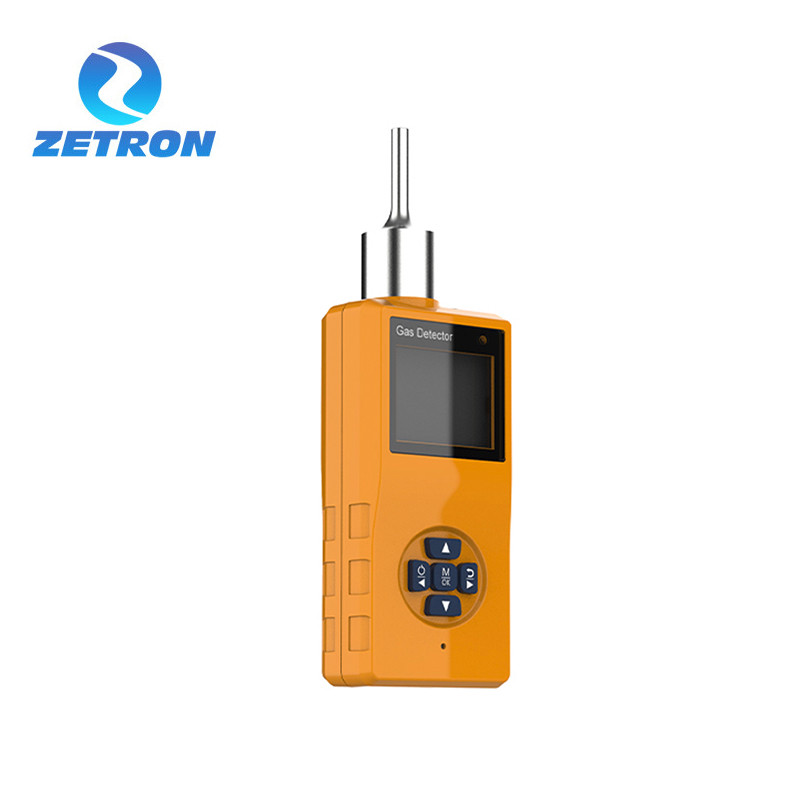

Ip66 Ms100-P Toxic And Harmful Gas Detector Plastic In Chemical Industry

  • Ip66 Ms100-P Toxic And Harmful Gas Detector Plastic In Chemical Industry
  • Ip66 Ms100-P Toxic And Harmful Gas Detector Plastic In Chemical Industry
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS100-P
Minimum Order Quantity 1 Piece
Packaging Details paper carton
Payment Terms L/C, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Portable Gas Detector Size 114*60*26mm (L*W*H)
Weight About 0.46Kg Detecting Gas Toxic And Harmful Gases
Protection Grade IP66 Continuous Working Time ≥12 Hours
Highlight

ip66 harmful gas detector

,

chemical industry harmful gas detector

,

chemical industry portable single gas detector
Leave a Message
Product Description

Plastic Material Pump Suction Portable

Single Gas Detector



OVERVIEW


The pumped portable nitrogen detector adopts new and original imported sensors. The measurement results are more accurate and stable.The built-in high-performance suction pump has faster detection speed, 2.5-inch dot matrix display interface, and intuitive and generous readings. The first-class process design brings strong Rock-like quality.



FEATURES & BENEFITS



1,Built - in high performance air pump, flow rate is stable, can switch control;



2,5.is Navigation button, user-friendly and easy to operate;



3,Support switching between Chinese and English;



4,Can store 100,000 sets of data;



5,Intelligent algorithm, more accurate measurement results;





Number Type of gas Range Respond timeT90 (秒)
1 ASH3 0-5ppm <90
2 Br2 0-20/200ppm <60
3 C2H2 0-10/100ppm <90
4 C2H4 0-10/100ppm <80
5 CH2O 0-10/50ppm <80
6 CH3SH 0-10ppm <90
7 CH4 0-100%LEL <30
8 CL2 0-10/50/200ppm <90
9 CLO2 0-1/50ppm <90
10 CO 0-100/500/1000ppm <30
11 ETO 0-10/100/500ppm <120
12 H2 0-1000/40000ppm <60
13 H2O2 0-100/500ppm <60
14 H2S 0-100/1000ppm <60
15 HCL 0-50/200ppm <80
16 HCN 0-50ppm <30
17 HF 0-10/100ppm <90
18 NH3 0-20/100/1000ppm <90
19 NO 0-250/2000ppm <60
20 NO2 0-20/2000ppm <60
21 O2 0-30%VOL <25
22 O3 0-1/10/100ppm <90
23 PH3 0-20/1000ppm <30
24 SIH4 0-50/200ppm <60
25 SO2 0-20/2000ppm <40
26 THT 0-50mg/m3 <60



PARAMETER



Working principle: Catalytic combustion, electrochemistry, infrared absorption spectrum principle
Sampling method: Pump suction/dispersive
Measure range: 0-100%VOL(Optional, other range can be customized)
Resolution: 0.1%VOL,0.01%VOL
Accuracy: ±3%FS
Repeatability: <3%
Respond time: T90 ≤30 sec
Alarm method: Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
Operation method: Key operation(Life time of keys:2000000 times)
Material of host: Full metal jacket, strong wear resistant corrosion, feel is good
Working temperature: -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas)
Working humidity: 10%RH ~95%RH,No condensation
Working pressure: 86kPa~106kPa
Battery: Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
Charger: Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
Charging time: ≤6 hours, total charged time 12 hours
Continuous working time: ≥12 hours
Dimension: 135x65x35mm(LxWxH)
Weight About 0.46Kg
Protection grade: IP66
Execution standard: GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
Quality assurance: One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.



Ip66 Ms100-P Toxic And Harmful Gas Detector Plastic In Chemical Industry 0





APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarm, to ensure that the safety of staff life is not threatened, production equipment is not lost.
