Xb-660f Temp Pressure Flow Monitoring Instrument With Micro Differential Pressure Sensor

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number XB-660F
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
External Working Temperature Instrument -20~300℃ Flow Rate Range 0-40m/s
Temperature Range 0-300℃ Pressure Range 2000Pa
Sampling Mode In-line, In-situ Working Power AC220V±5% 50Hz
High Light

inline flow meter with temperature sensor

,

temp pressure flow monitoring instrument

,

in situ flow monitoring instrument

Leave a Message
Product Description

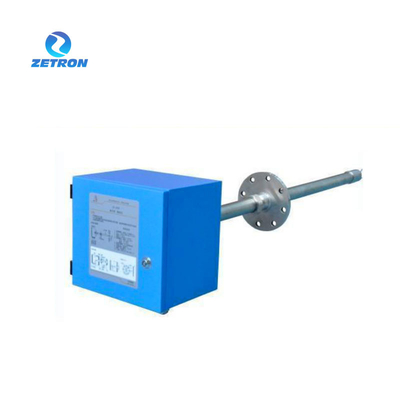

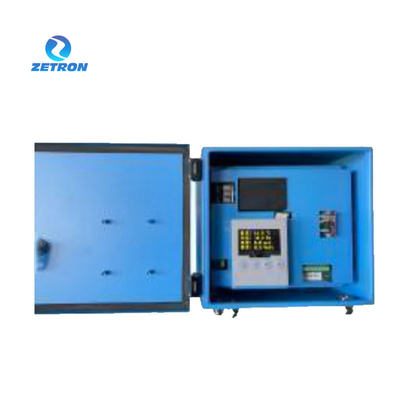

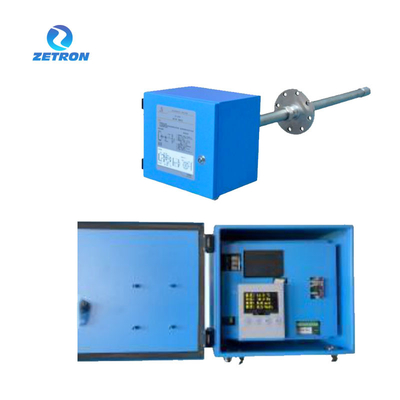

XB-660F Temp Pressure Flow Monitoring Instrument

The XB-660F temperature, pressure, flow, and humidity monitor comprises a pitot tube, thermal resistance, micro pressure difference / absolute pressure sensor group, back blowing unit, and signal control processor. It is an integrated flow rate, dynamic pressure, static pressure, and smoke temperature monitor specially developed for the high dust, high temperature, high humidity, and high corrosion environment of exhaust gas monitoring. It is applicable to the real-time continuous measurement of the flow rate, pressure, temperature, and flow of exhaust gas by the continuous exhaust gas monitoring system (CEMS). The pitot tube, pressure sensor, and temperature sensor are used to measure the dynamic pressure, static pressure, and temperature of the exhaust gas. These parameters are proportional to the measured exhaust gas flow rate, so the flow rate of the exhaust gas can be quantified.



Features:



* Originally imported sensor chips, to ensure the accuracy and service life of the instrument

* Debuggable probe rod, adjust the length of the probe rod by itself according to the need.

* Probe rod made of 316F, corrosion resistance.

* Increased humidity measurement, no need to purchase a separate humidity meter more cost-effective. simple installation and easy maintenance.

* Real-time online monitoring of humidity, temperature, static pressure, dynamic pressure, and flow rate real-time upload.

* Set with automatic zero calibration, the automatic blowback Pitot tube is not easy to clog long service life removable pressure module for more convenient maintenance.

* Positive and negative power protection modules can be used without worrying about reverse connection and burning the machine.

* Debuggable probe rod, adjust the length of the probe rod by itself according to the need.

* Probe rod made of 316F, corrosion resistance.

* Increased humidity measurement, no need to purchase a separate humidity meter more cost-effective. simple installation and easy maintenance.

* Real-time online monitoring of humidity, temperature, static pressure, dynamic pressure, and flow rate real-time upload.

* Set with automatic zero calibration, the automatic blowback Pitot tube is not easy to clog long service life removable pressure module for more convenient maintenance.



Temperature measurement method
TP100 thermistor
Pressure measurement method
Micro differential pressure sensor
External working temperature
Instrument: -20~300℃
Flow rate range
0-40m/s
Temperature range
0-300℃
Pressure range
2000Pa
Flow rate measurement accuracy
±2.5%FS
Pressure measurement accuracy
±2.5%FS
Temperature measurement accuracy
±2.5%FS
Blowback gas
Instrument gas 0.3~0.8MPa
Transmission protocol
Modbus protocol
Pitot tube
316F stainless steel material
Display mode
two-colour LCD display, LCD display resolution 3 or 4 decimals, software for setting, no backlight since 30 minutes (can be set),
current loss 4mA (no backlight)
Communication mode
RS485,4-20MA communication mode
Sampling mode
in-line, in-situ
Working power
AC220V±5% 50Hz
Main board power consumption
standby ≤ 3 W, back-blowing, zero calibration ≤ 25 W
Probe length
conventional 0.5m, 1.0m, customizable (<1.8m) scalable adjustment
Service life
meter > 24 months, sensor > 20 months (used under normal conditions)
Installation
plug-in, DN65 standard flange installation
