Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS104K
Minimum Order Quantity 1 set
Price USD 145/set- 879/set
Packaging Details 130*68*34mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 In 1 Gas Detector Type Electrochemical Sensor Gas Detector
Function PID TVOC Air Detector Gas Unit Ppm LEL
Sampling Method Diffusion Sampling Alarm Type Light+Sound+Vibration
Display 2.31 Inch Color Screen Gas H2S O2 CO Ex (optional)
High Light

Diffusion Type Carbon Monoxide Testers

,

USB Storage Carbon Monoxide Testers

,

Diffusion Carbon Monoxide And Gas Detector

Leave a Message
Product Description

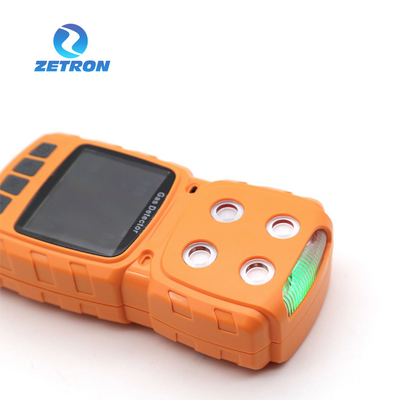

Portable CO Detector



OVERVIEW



Data recovery function; in case of misoperation, it is possible to select partial or full recovery. It is possible to set whether to display the maximum value, minimum value, average value, or not. Standard USB charging port, with charging protection function, USB hot plug supported, and the charging status instrument can work properly. 2100mA high capacity rechargeable polymer battery is adopted, so it is possible to work for a long period of time.

Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage 0Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage 1

Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage 2Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage 3Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage 4

Ms104k Diffusion Type CO Carbon Monoxide Testers / Detector USB Storage 5



FEATURES



1. Multi-gas made simple, easy to wear, slim and compact
It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely .
Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.


2. Compact design, easy to use
Handy and durable, the MS104 is intuitive to operate single-handedly using three function keys.
The easy-to-read color display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.

3. Large Data Storage Management, release and documentation in no time
Standard configuration is the data storage capacity for 100, 000 entries.
Real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored.
It is supported to use the local host to view, and delete data, and upload the data via USB interface to the computer for data analysis or printing.RS485 communication is an optional configuration.

4. Clear signaling design
The signal system of the MS104K is based on a clear color code: sound & light alarm, vibration alarm, display screen visual alarm.These are also documented in the data logger.



SPECIFICATION



Gas
CO
Range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm and other ranges can be customized.
Resolution
0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more)
Detection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error
≤±3% F.S (higher precision levels can be customized)
Linearity
≤±2%
Repeatability
≤±2%
Uncertainty
≤±2%
Response time
T90≤30 seconds
Recovery time
≤30 seconds
Working environment
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH
Power supply
3.7VDC, 3000mA high capacity rechargeable polymer battery
Display mode
2.31-inch high-definition color screen
Alarm mode
It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Data storage
Standard configuration is the data storage capacity for 100, 000 entries
Protection level
IP65
Explosion-proof mark
Exia II CT4 Ga
Exterior dimensions
130×68×34mm (L×W×H)
Weight
200g



APPLICATION



All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
