MS500-VOC Pump Type VOC Tester For Steel Production Gas Detection

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MS500-VOC
Minimum Order Quantity 1 set
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Gas Analyzer Model Number MS500
Type Infrared Sensor Protection Level IP66
Weight 350g Size 180*78*33mm
High Light

Pump Type VOC Tester

,

Steel Production Gas Detection VOC Tester

Leave a Message
Product Description

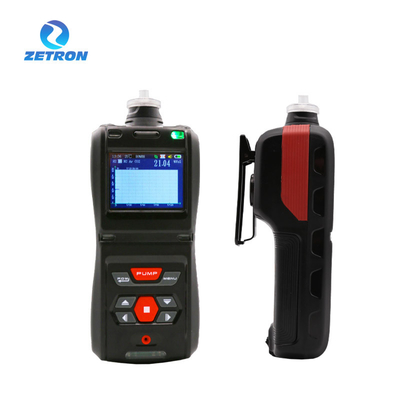

MS500-VOC Portable VOC Tester


OVERVIEW


MS500 series is suitable for detecting the concentrations of gases such as petroleum, chemical, pharmaceutical, environmental protection, and combustion gas distribution. It has a 2.5-inch high-definition color screen, displays information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high-definition simulation graphics to display the function name of each menu.




FEATURES


①Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.
Alarm types include: concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.



PARAMETERS



Measuring gas
VOC
Measuring range
0-1.000,2.000,5.000ppm
Other ranges can be customized
Resolution
0.01 ppm
0.1 ppm
Other ranges can be customized
Sensor type
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
Measuring type
Built-in pump-suction type
Response time
T90<20s
Display
2.5-inch high-definition color screen
Alarm method
sound & light alarm; vibration alarm; sound & light + vibration alarm;turning off the alarm
Battery
DC3.7V, 3000mA high capacity rechargeable polymer battery
Data storage
Standard capacity is 100,000 entries.
Housing
Rubber enclosure
Weight
350g



APPLICATION


All the cases which requires the portable rapid detection of gas concentrations such as Steel, coking, cement, glass, electricity, non-ferrous, waste incineration, industrial furnace density and other elevated sources, petrochemical, chemical, pharmaceutical, automotive manufacturing, machinery and equipment manufacturing furniture manufacturing, packaging and printing industries that emit volatile organic compounds (VOCs).
