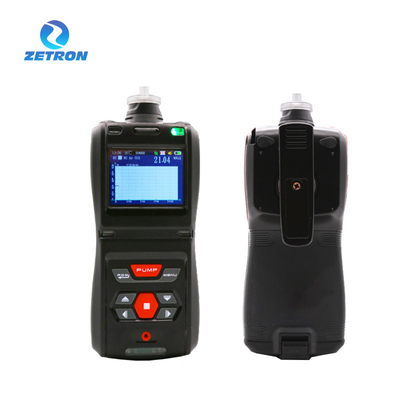

Zetron MS500 High Precision Personal VOC Monitor Portable Single Gas Detector IP66
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Gas Analyzer | Model Number | MS500 |
|---|---|---|---|
| Type | Portable Multi Gas Detector, Infrared | Color | Black |
| Protection Level | IP66 | Size | 180*78*33mm |
| Highlight | Zetron Personal Voc Monitor,High Precision Personal Voc Monitor,IP66 Personal Voc Monitor |
||
Product Description
MS500 Portable Gas Detector
OVERVIEW
MS500 series is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space. It is possible to simultaneously detect 1 ~ 5 types of gases, and the types for detection are more than 500 types.
Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch between three display modes.
PARAMETERS
|
Measuring gas
|
VOC
|
|
Measuring range
|
0-1.000,2.000,5.000ppm
Other ranges can be customized
|
|
Resolution
|
0.01 ppm
0.1 ppm
Other ranges can be customized
|
|
Sensor type
|
Other Sensors: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
|
|
Measuring type
|
Built-in pump-suction type
|
|
Response time
|
T90<20s
|
|
Display
|
2.5-inch high-definition color screen
|
|
Alarm method
|
sound & light alarm; vibration alarm; sound & light + vibration alarm;turning off the alarm
|
|
Battery
|
DC3.7V, 3000mA high capacity rechargeable polymer battery
|
|
Data storage
|
Standard capacity is 100,000 entries.
|
|
Working temperature
|
-40 ℃ ~ + 70 ℃
|
|
Working humidity
|
≤10 ~ 95% RH
|
|
Housing
|
Rubber enclosure
|
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter |
|
Dimension (L×W×H)
|
180×78×33mm
|
|
Weight
|
350g
|
|
Ex grade
|
Ex ia IIC T6 Ga Intrinsically safe type
|
|
Ingress protection
|
IP66
|
APPLICATION
All the cases which require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, steel, coking, cement, glass, electricity, non-ferrous, waste incineration, industrial furnace density and other elevated sources, petrochemical, chemical, pharmaceutical, automotive manufacturing, machinery and equipment manufacturing furniture manufacturing, packaging and printing industries that emit volatile organic compounds (VOCs).
