MS600 Series Portable Composite Compound Gas Monitor Detector For Confined Space

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS600-VOC
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Function Portable Gas Analyzer Allowable Error ≤±1% F.S (other Precision Levels Can Be Customized)
Power Supply 3.6VDC, 6000mA High Capacity Rechargeable Polymer Battery Display Mode 2.5-inch
Size 180*78*33mm (L*W*H) Weight 0.35(kg)
High Light

Portable Composite compound gas monitor


compound gas monitor For Confined Space

Leave a Message
Product Description

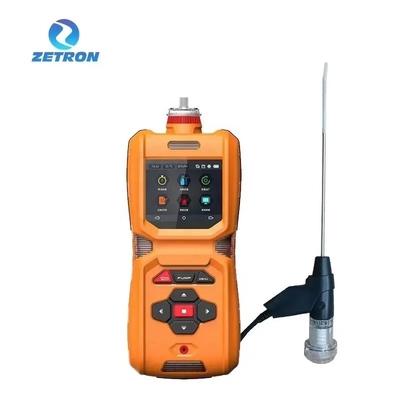

MS600-VOC Portable Multiple Gas Detector




MS600 Series Portable composite gas detector can be used in mobile rapid and accurate detection of a variety of gas concentrations and measurement of environmental temperature and humidity.




*Built-in humidity dust filter, preliminary treatment of the detection gas, so as to protect the equipment.
*Multiple alarm modes, and multi-directional and three-dimensional indication alarm states.
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
*Zero-point automatic tracking; long-term use will not be affected by the zero drift.
*Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
*Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of the next concentration calibration.
*Data recovery function.

*Detection principles include electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on. Depending on the type of gas, range, field environment, and user demand.
*Mis-operation recognition function: automatic recognition and prevention of the concentration calibration misoperation, which is possible to avoid the poor performance that may be caused by human factors.



Gases to be detected
VOC and so on.Optional configuration: temperature and humidity measurements.
Detection range
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Allowable error
≤±1% F.S (other precision levels can be customized)
Response time
T90≤20 seconds
Recovery time
≤30 seconds
Sample gas temperature
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Power supply
3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode
2.5-inch high-definition color screen
Detection mode
Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml/min,
the three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Communication interface
USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level
Explosion-proof mark
Exia II CT6
Exterior dimensions
180×78×33mm (L×W×H)
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter


MS600 Series Portable Composite Compound Gas Monitor Detector For Confined Space 0



The detector is widely used in the petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, and explosion prevention.


MS600 Series Portable Composite Compound Gas Monitor Detector For Confined Space 1
