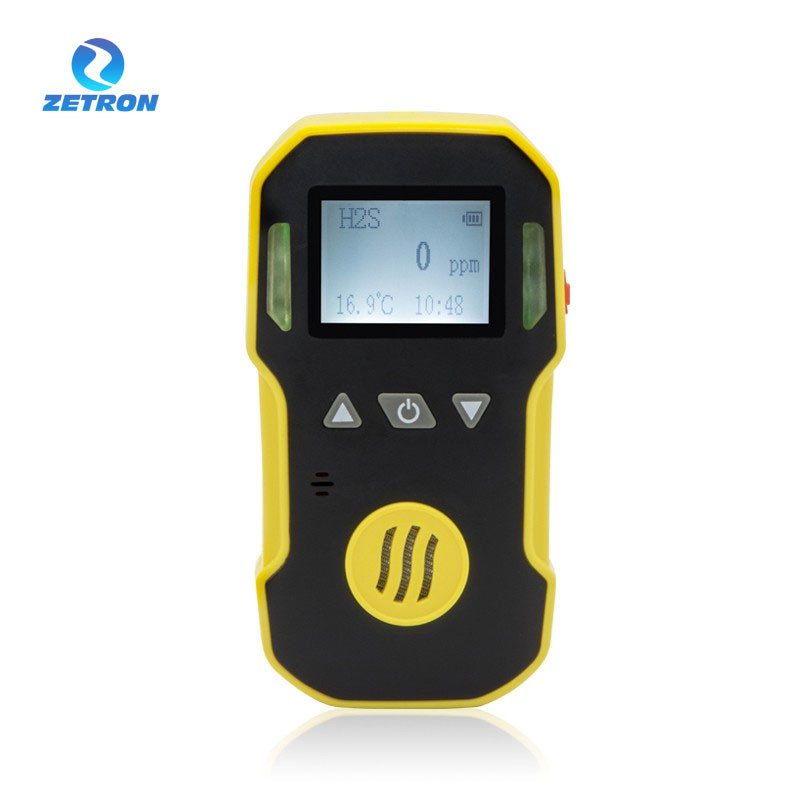

BH-90A Zetron Handheld Gas Leakage Monitor For Combustible Gas

Place of Origin China
Brand Name Zetron
Certification CE
Model Number BH-90A
Minimum Order Quantity 1 set
Packaging Details 160*70*28mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Gas Detector Accuracy ≦±5% F.S.
Operating Voltage DC3.7V Li Battery 1500mAh Temperature -20℃~50℃
Exterior Dimensions 100mm×60mm×30mm(L × W × H) Weight About 130g (including Battery But Without Accessories)
High Light

Zetron Handheld Gas Leakage Monitor

,

Combustible Handheld Gas Leakage Monitor

Leave a Message
Product Description

BH-90A Portable Single Gas Detector

OVERVIEW


BH-90A portable single gas detector can make continuous detection of combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipes or mines and keeps the workers safe, and prevents the facilities from being destroyed. The detector, adopting an excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts an embedded MCU controller, easy to operate.
The shell adopts special high-strength material and anti-smooth rubber, with the characteristics of water-proof and dust-proof.



FEATURE



Gas Detected:
combustible gas (CH4, C3H8, H2) and toxic gas, oxygen, and Other rare toxic gas like ammonia, NO, PH3, NH3, NO2, HCN, SO2, etc also available, Can be specified by the Customer in advance.
*Advanced MCU control with low power consumption;
*Adjustable low and high alarm levels;
*Adjustable calibrating level;
*High concentration protection for combustible gas;
*Self-test for the combustible gas sensor;
*Low battery indication;
*Self-adjustment function
*Visual and audible alarm with vibration;
*Advanced self-examination and self-renovation function
*Password management to avoid the wrong operation;
*Explosive-proof housing.



PARAMETER

Accuracy≦ 5% F.S.
Response timeT<30s
IndicationLCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration
Operating Environment

Operating temperature -40℃~70℃ (for combustible gas)
Operating temperature: -20℃~50℃ (for toxic gas)

Humidity<95%RH non-condensing
Operating voltageDC3.7V Li battery 1500mAh
Working time≧8h continuously
Charging time4h~6h
Sensor life2 years
Protection categoryIP65
Weightabout 130g (including battery but without accessories)
Dimension100mm×60mm×30mm

BH-90A Zetron Handheld Gas Leakage Monitor For Combustible Gas 0
