MFT-900 Integrity Test Machine Zetron Leak And Seal Strength Tester Non Destructive Testing

Place of Origin China
Brand Name Zetron
Model Number MFT-900
Minimum Order Quantity 1 pcs
Packaging Details paper carton
Delivery Time for 1-50 pcs, 7 work days; more than 50 pcs, to be negotiated
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Packaging Leak Tester Model Number MFT-900
Test Pressure Sensor Error≤±1%F.S. Minimum Detectable Aperture 2μm
Unit Mbar ,kpa, Psi, Kgf/cm2 Display Method 10-inch Touch Color Touch Screen
Voltage AC100V-240V, 50/60Hz, Power ≤200W Weight Host: About 30kg
High Light

leak seal strength integrity test machine

,

non destructive integrity test machine

,

ndt leak and seal strength tester

Leave a Message
Product Description

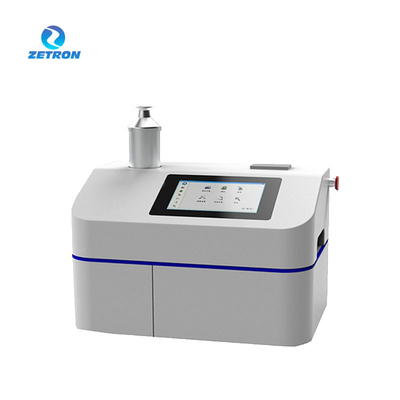

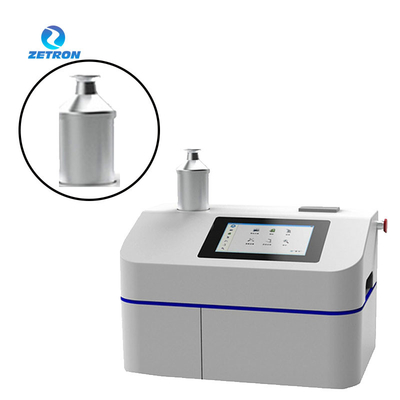

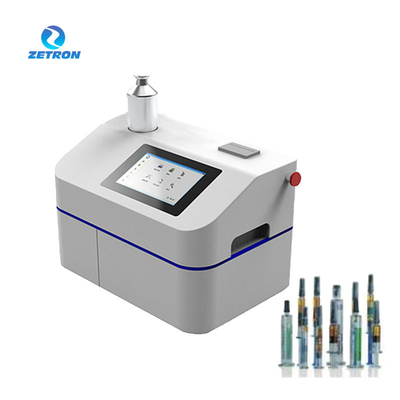

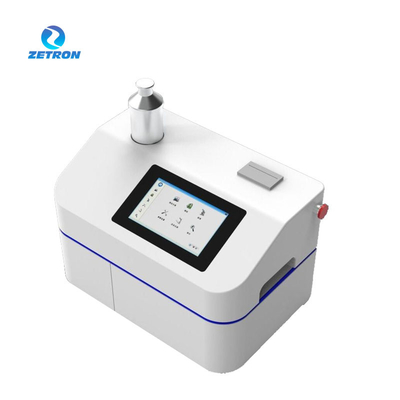

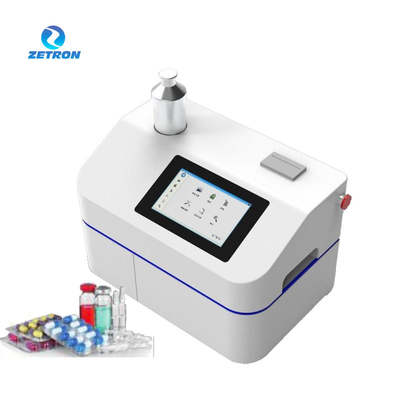

MFT-900 Packaging Leak Tester



OVERVIEW


Packaging Tightness Tester, detection type: vials ampoules, pre filled syringes, cartridge bottles, infusion bagsBFS packaging, pharmaceutical industry sealing integrity leak detection solutions. compliance fDA 13287 standard: meet one of USP 1207 test methods: non-destructive testing method.


FEATURES


・Comply with USP <1207>, ASTM F2338 standards and FDA standards.

Semi-automatic detection, suitable for small batch and multi-variety testing.

Non-destructive non-destructive testing, high accuracy, repeatability, sensitivity.

・The instrument is used for vacuum pressure difference detection.

・The leak rate can be automatically converted into defect aperture μm.

・Databasestorage of test results for easy quality management.

・Database storage of test results for easy quality management.

・Touch-type man-machine interface, simple and quick operation: after setting/selecting the test program, only need to manually put in/take out the test sample.



ADVANTAGE FUNCTION



・ Automatically test the flow rate and change the aperture size during the whole process.
・ Automatic leak flow calibration function.
・ Equipped with standard leaks (standard positive bottles, with third-party certification).
・ Four-level user authority management meets FDA 21CFR PART 11 requirements.
・ With audit trail function.
・ Split design, the test chamber is located above the host, and various test chambers can be provided according to different product types.
・ We also provide users with supporting services related to tightness testing, including positive bottle(mould) production, standard leak rate/annual leak verification, new sample mold customization, sample methodological parameter development and verification, etc.
・ The test cavity is customized according to customer needs to ensure that the test cavity is fully matched with the customer's product, and rapid and sensitive testing.



Application

MFT-900 is suitable for sealing integrity testing of pharmaceutical packaging to prevent moisture, oxygen, and microorganisms from contaminating products. Medicines: bottled, bagged, boxed, ampoules, vials, cartridges, prefilled needles (PFS), (BFS), (FFS), etc. Spray cans: plunger spray cans; bag-lined spray cans; "energy jacket" spray cans; flexible tube spray cans.


SPECIFICATIONS



Differential pressure sensor ±2kpa, error≤0.5%F.S.
Differential pressure resolution 0.1pa
Test pressure sensor Error≤±1%F.S.
Test pressure range -0.1~0.2Mpa /-0.1~0.7MPa/-0.1~1.0Mpa(operational)
Minimum detectable aperture

2μm ( for IV bag minimum 5μm)



Display method 10-inch touch color touch screen
Voltage AC100V-240V, 50/60Hz, power ≤200W
Weight Host: about 30kg
Audit trail <=5 years of storage Multiple event logs, which can be queried according to time
Authority management Login with username and password, level 4 authority, meet FDA 21CFR PART 11 requirements
Print function Built in printer
History record <=5 years storage
Data backup Support U disk to export data
Interface Ethernet USB RS485(operational)
