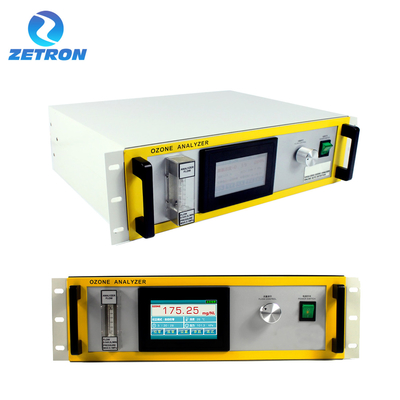

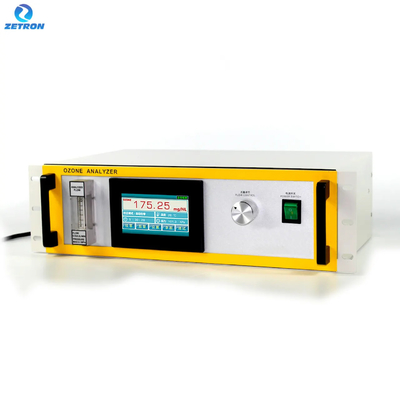

Zetron UVOZ-3000 Rack-Type Ozone Analyzer Automatic Zero-Point Calibration Ozone Concentration

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UVOZ-3000
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T,
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ozone Analyzer Model UVOZ-3000
Display Interface 4.3-inch Touch Screen Operation Interface Content Interface Ozone Concentration, Temperature, Pressure; (yield Calculation And Data Recording Can Be Customized)
Display Unit Option Of G / Nm 3, Mg / NL,% WT; Display Resolution 0.01g/Nm3
Gas-flow Rate 0.5L±0.2L/min Input Pressure <0.1MPa
Concentration Error ≤0.5%FS Instrument Size 133mm (height) 482mm (width) 300mm (deep), 19-inch 3U Chassis; (Note 1 Mg/L = 1 G/m3 = 467 PPM)
Leave a Message
Product Description

UVOZ-3000 Ozone Detector

OVERVIEW



This ozone concentration analyzer adopts dual optical path UV light source system, with UV LED light source management system inside, the UV LED lamp can reach the measurement state within 1 minute after powering on, and adopts separated gas chamber and light cell design structure, the gas chamber has the features of no leakage, high pressure resistance, resistance to the impact of ozone gas of large flow rate, easy to clean, easy to maintain, easy to operate, and low cost of use. Mainly used for continuous detection of various industrial environments to detect the concentration of ozone gas production, ozone generator outlet concentration measurement, so as to calculate the ozone generator feeding production, can also be used for pipelines and containers in the ozone gas concentration analysis and detection.



FEATURES



With touch screen operation interface, real-time display of ozone gas concentration, with pressure and temperature compensation and display, automatic calibration time and manual calibration mode can be set.


High concentration range (g/Nm3, mg/NL) with flow input function, real-time display of ozone generator output.


With two groups of relay signal output, users can freely choose the high alarm point and low alarm point signal output.


Core sensor components using foreign UV LED light source, foreign photoelectric receiver components, dual-optical sampling structure, according to foreign instruments designed and developed independently of the gas chamber sealing structure of the gas chamber and the light cell structure, with pressure resistance, impact resistance and other characteristics, the use of an independent light cell and the gas chamber of the structure of the way, easy to maintain and replace.


It is equipped with automatic zero correction function to ensure the stability of the zero point and prevent the zero point deviation from affecting the accuracy of the detection concentration, and the gas flow, pressure and flow rate remain unchanged during the zero calibration operation to prevent the impact of the gas flow from affecting the zero calibration, and the zero calibration operation can be completed without shutting down the ozone inlet to ensure that the Ozone Concentration Analyzer can be operated continuously for 24 hours a day.





PARAMETER





model UVOZ-3300C
Measure the range 0-300g/Nm3
Optional range 0-400g/Nm3;0-200g/Nm3;0-100g/Nm3;0-50g/Nm3;0-10000ppm;
Light source life About 30,000-50,000 hours;
Sampling method Positive pressure sampling, negative pressure sampling (optional);
Display interface 4.3-inch touch screen operation interface;
Content interface Ozone concentration, temperature, pressure; (yield calculation and data recording can be customized)
additional function Temperature compensation, pressure compensation;
Display unit Option of g / Nm 3, mg / NL,% WT;
display resolution 0.01g/Nm3;
gas-flow rate 0.5L±0.2L/min;
input pressure <0.1MPa;
Concentration error ≤0.5%FS;
linear error ≤0.5%FS;
precision ≤±3%
zero drift <±0.3%.FS;
reaction time Signal 0.03 seconds, display 0.3 seconds;
ambient temperature -20~50℃
Pipe interface mode Quick twist (stainless steel);
Tandem sample caliber Φ 8 (8mm * 6mm) (optional);
Bypass sampling caliber Φ6(6mm*4mm);
communication mode RS-485;
Output method 4-20 mA (active);
Following the electrical signal High alarm point following the electrical signal, low alarm point following the electrical signal;
source AC 110-220V;
size

133mm (height) 482mm (width) 300mm (deep), 19-inch 3U chassis;

(Note 1 mg/L = 1 g/m3 = 467 PPM);

Free warranty 24 months (host sensor);





APPLICATION



Ozone generator manufacturers,

Municipal water industry,

Industrial wastewater industry,

Fine chemical industry,

Food and drinking water industry,

Space disinfection industry,

Swimming pool disinfection industry,

Flavor synthesis industry ,

other industries using ozone generators.
