MS104K-M 4 In 1 Portable Gas Analyser O2 H2S CO Combustible Gas/LEL Multi Gas Detector

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS104K-M
Minimum Order Quantity 1
Price 329-345USD
Packaging Details paper carton,15X10X5cm,4kg
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 In 1 Portable Personal Safety Protection Gas Detector O2 H2S CO LELL Model Number MS104K-M
Usage Industrial, Laboratory, Other Detecting Gas Can Be Customized Upto 500 Gases 16 At A Same Time
Alarm Type Vibration+Sound+Light Alarm Sensor Imported High-precision Sensor
Sampling Method Pump And Diffusion Sampling Response Time T90<20s
Size 90×70×38mm(L×W×H) Weight 200g
High Light

LEL Portable Multi Gas Detector

,

Combustible Gas Portable Multi Gas Detector

,

4 In 1 Portable Gas Analyser

Leave a Message
Product Description
MS104K-M Four in One Gas Detector

OVERVIEW

4 in 1 Portable Personal Safety Protection Gas Detector O2 H2S CO LEL is mainly used to quickly and accurately detect gas leaks or alarm when gas concentration exceeds the standard. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc.

FEATURES

★Wireless transmission (optional): LORA, SOS one-key call for help function.
★Fall alarm.
★Data recovery function , can partially or fully restore the factory data.
★Maximum value, minimum value, weighted average value can be displayed.
★Multiple alarm mode alarm mode settings, alarm multi-directional three-dimensional indication of the alarm state
APPLICATION SCENES

Widespread applications for MS104K-M include gas, warehouse, fire safety, emergency rescue, confined spaces, petroleum, chemical industry, coal mine, metallurgy refining, medical, and environmental protection, among other fields.

SPECIFICATION



Delection Gases
1-4 gases(Carbon monoxide CO,hydrogen sufide H2S,oxygen O2,flammable gas Ex,carton dioxide CO2 VOC,etc)
Depends on site environment and user needs
Gas Ranges
0-1000,5000,10000ppm.100%Vol,100%LEL.Depends on site environment and user needs
Resolution
0.001ppm (0-10ppm high precision)
0.01ppm (0-10 ppm)
0.01ppm (0-100 ppm)
0.1ppm (0-1000 ppm)
1ppm (0~5000 ppm and above)
0.1%LEL:0.01%Vol
Unit Display
Optional units:umol/mol ppm,mg/m3,%Vol,%LEL
Gas Sensor Principle
Electrochemistry,catalytic combustion,infrared,thermal conductivity,semiconductor,PID photoionization,etc.Depending on the
range,application and user needs
Sensor Life
Electrochemistry 2-3 years,catalytic combustion 2-3 years,infrared 5-10 years,thermal conductivity 2-5 years,
PID 2-3 years
Detection
Diffusion/pumping type,standard configuration: external pump
Display
2 inch LCD
Display Content
Real-time concentration,unit,gas name,alarm status,time,storage,communication status,power,charging
status,etc
Detection Accuracy
Typical accuracy≤±3%FS
Response Time
T90≤ 20seconds(general)
Working Power Supply
DC7.4V
Battery Capacity
7.4V,1400mAh Rachargeable polymer battery,without overcharge,overdischarge,overvoltage,short circuit and
oveheating protection funchions
Operating Hours
More than 100 hours (Diffusion type,non-catalytic sensor)
Alarm Volume
More than 90dB
Usage Environment
Temperatune:-20℃-+50℃,can be customized-40℃+70℃,relative humidity:10-95%RH
Communicalion Interfaoe
Standard Type-C port for communicafion,standard cradle charging base (Fully charged in 2 hours)
Data Storage
Standard capacity 200,000 data recording, supports local viewing,detection or data export,and the storage time interval can be set
arbitrarily

Language
Chinese or English optional,defaut Chinese interface
Explosion-proof Type
Intrinsically safe Exia II CT4 Ga,Atex certificate
Protection level
IP68
Dimension
90*70*38mm(L*WxH)
Weight
About 380g
Standard Accessories
Instructions,certficate,USB Charger (including data cable),charging dock,instrument case,external pump caltbration cover),fiter individual

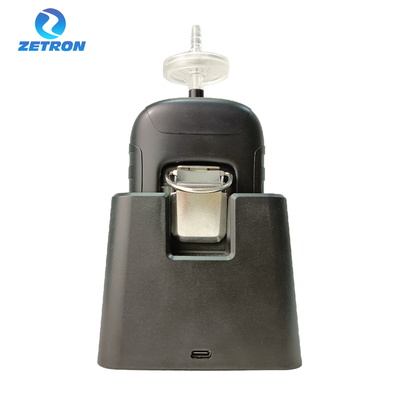

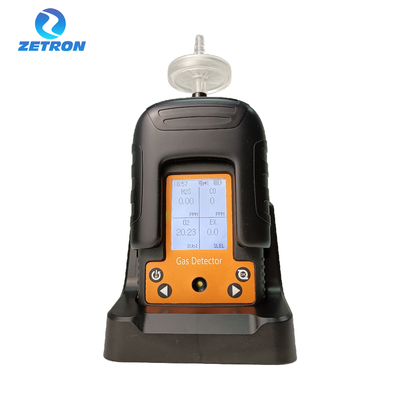

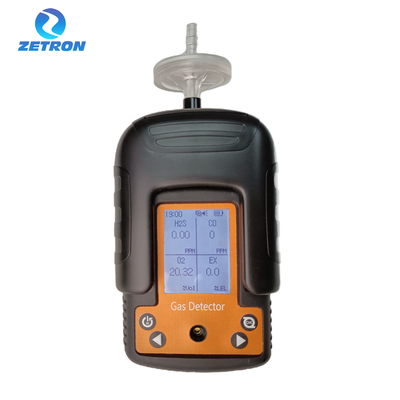

MS104K-M 4 In 1 Portable Gas Analyser O2 H2S CO Combustible Gas/LEL Multi Gas Detector 0

MS104K-M 4 In 1 Portable Gas Analyser O2 H2S CO Combustible Gas/LEL Multi Gas Detector 1
