Product Details
Product Name Display Solution For Sensors Model Number S320
Digital Input 1 X SDI For Dew Point And Flow Sensors Analog Input 1 X 0 ... 20 MA Or 1 X 4 ... 20 MA Or 1 X 0 ... 10 V
Alarm Output 2 Relays, 230 VAC, 3 A Display Graphic Display, 220 X 140 Pixels With Back Light
Material ABS Protection Class IP65
Dimensions 118X93X133mm Weight 0.52 Kg
Highlight

Industrial Sensors Display Solution

,

Cost Effective Display Solution

,

SUTO S320 Display Solution
Leave a Message
Product Description

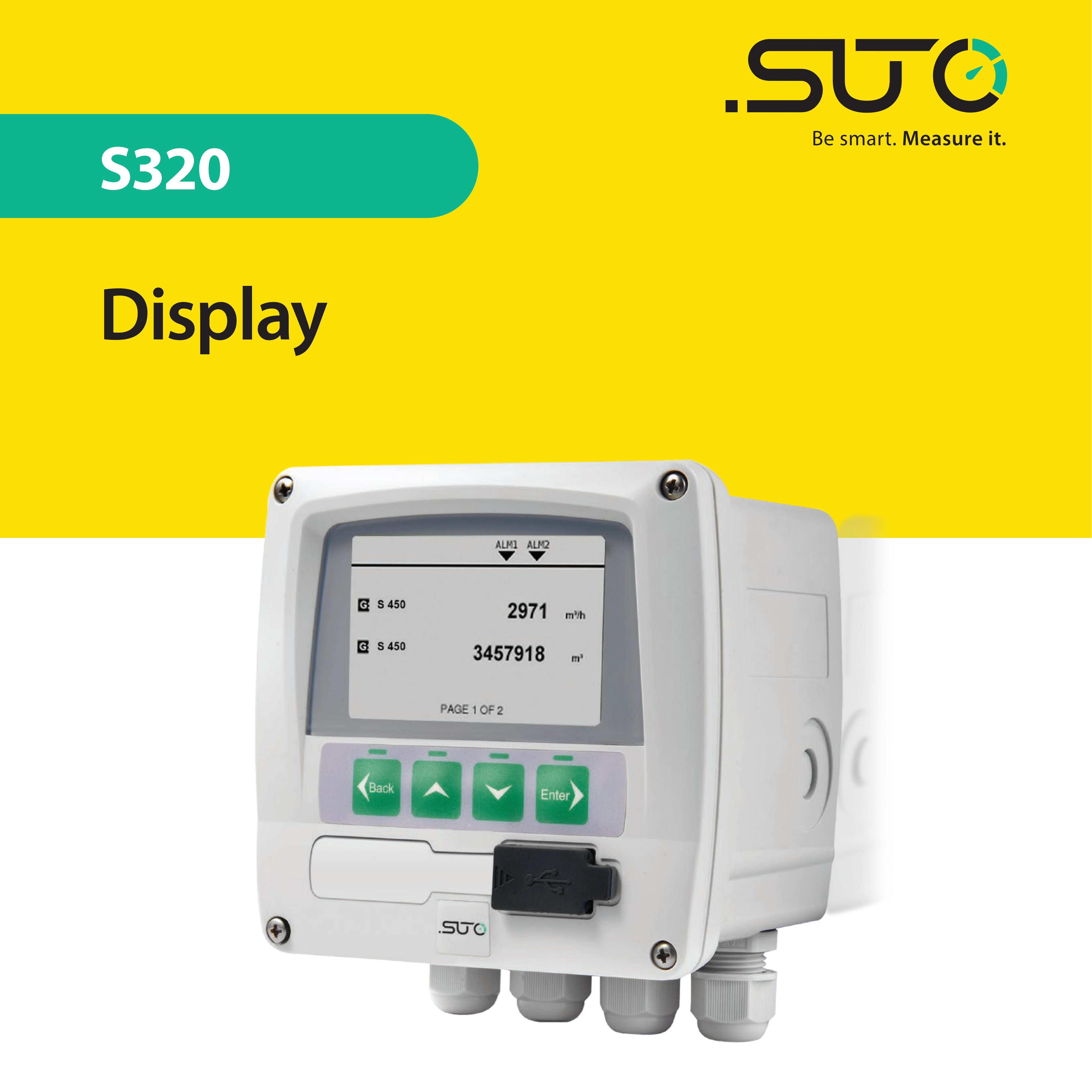

S320 Display Solution for Sensors

OVERVIEW


The S320 Display for compressed air and gas sensors provide a cost-efficient display solution for industrial applications. The display has an input for SUTO flow meters and dew point sensors. It also comes with an analog sensor input (0… 20 mA, 0… 10 V).


FEATURES



  • Affordable plug & play display solution
  • Easy display of hard-to-reach sensors
  • USB Interface for configuration with S4C software
  • Easy installation with wall casing
  • Alarm settings on screen menu
  • Alarm relays integrated for process monitoring
  • 1 SUTO sensor + 1 Analog sensor input
  • Panel installation for machine monitoring

SUTO S320 Cost Effective Display Solution For Industrial Sensors 0

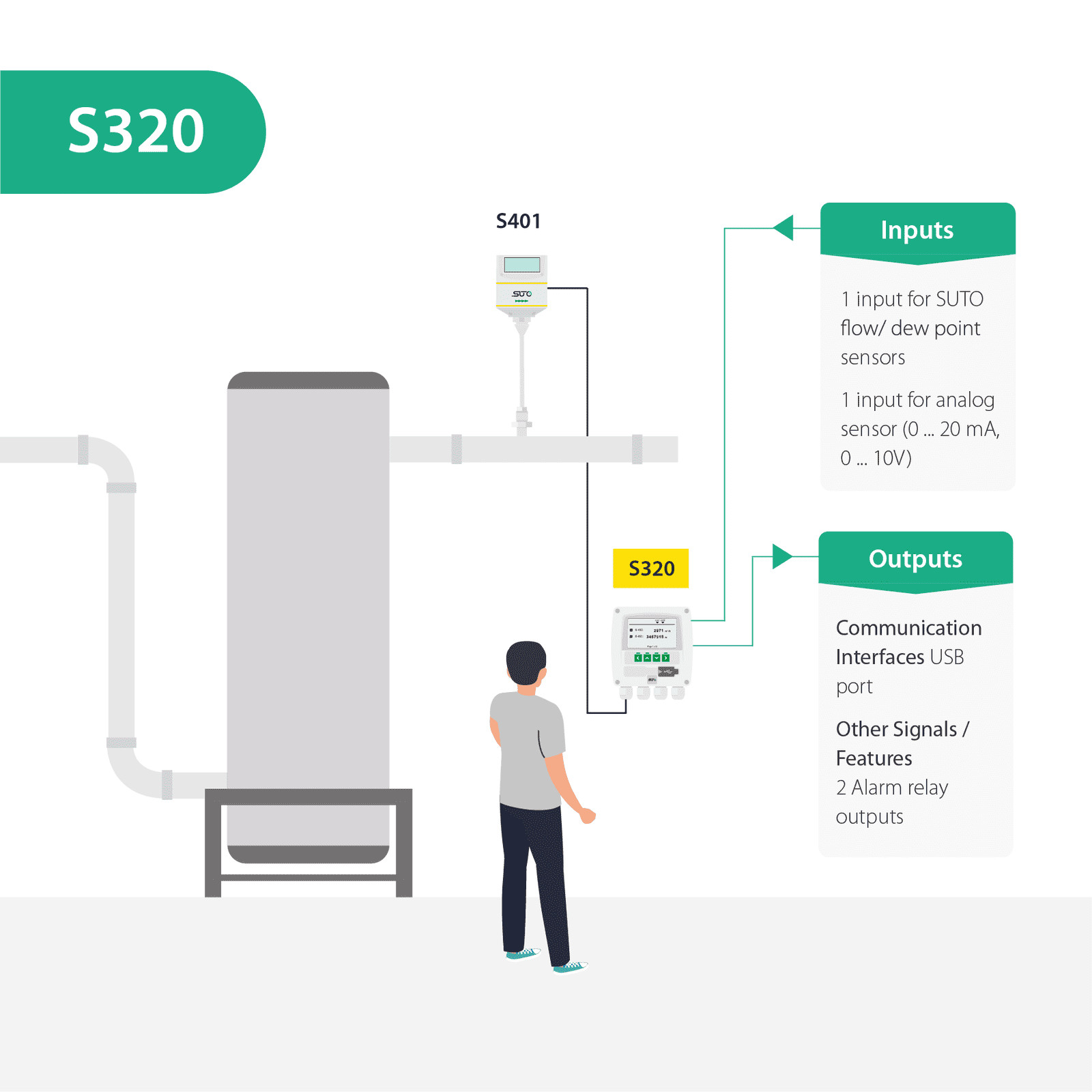

APPLICATION SCENES


Convenient data reading from difficult-to-access sensors.



SPECIFICATION


SIGNAL / SCHNITTSTELLE & VERSORGUNG


Input signals
Digitaler Eingang 1 x SDI für Taupunkt- und Durchflusssensoren
Analoger Eingang 1 x 0 ... 20 mA or 1 x 4 ... 20 mA or
Impulseingang 1 x 0 ... 10 V
Output signals
Alarm-Ausgang 2 Relais, 230 VAC, 3 A
Electrical data
Power supply 100 ... 240 VAC, 15 VA (Option A1640)
18 ... 30 VDC, 15 VA (Option A1641)
Sensor supply 24 V, 10 W
Data interface
Connection USB to PC
Operation Keyboard, 4 keys

GENERAL DATA


Configuration
PC Software S4C-Display software
Display
Integrated Size: 5” high-resolution graphic display
Resolution: 800 x 480 pixels touch screen
Material
Housing PC + ABS
Miscellaneous
Protection class IP65
Approvals CE
Weight 0.52 kg
Housing Panel, wall mountable
Dimensions See dimensional drawing
Cable entry diameter 4.5 ... 8 mm
Cable Supply: AWG 12 ... AWG 24, 0.2 ... 2.5 mm²;
Signals: AWG 16 ... AWG 28, 0.14 ... 1.5 mm²
Weight 0.52 kg
Operating conditions
Ambient temperature 0 ... +50 °C
Ambient humidity < 90 %
Storage temperature -20 ... +70 °C
Transport temperature -30 ... +70 °C

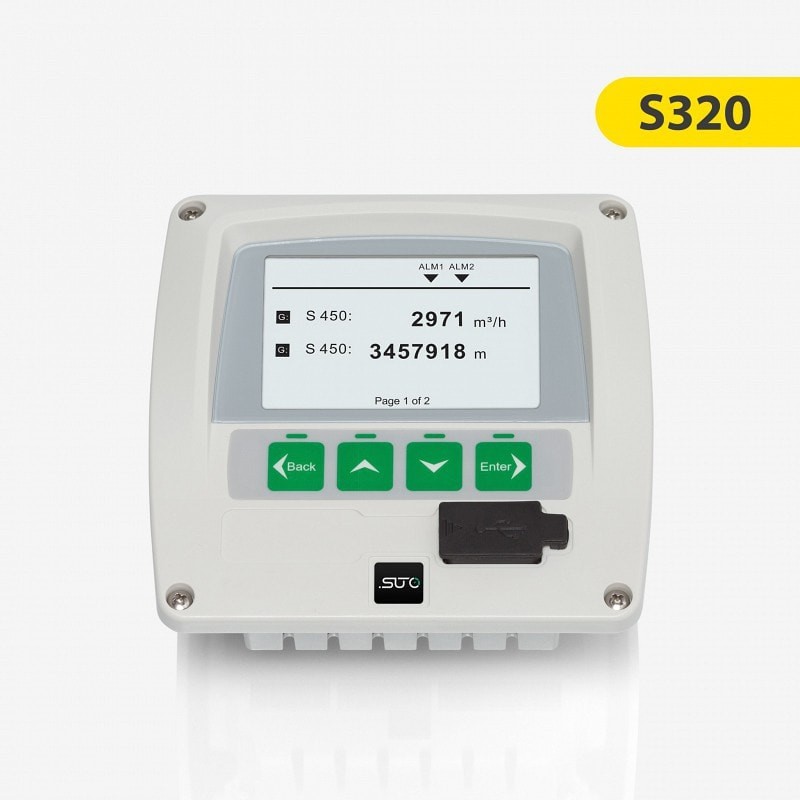

SUTO S320 Cost Effective Display Solution For Industrial Sensors 1

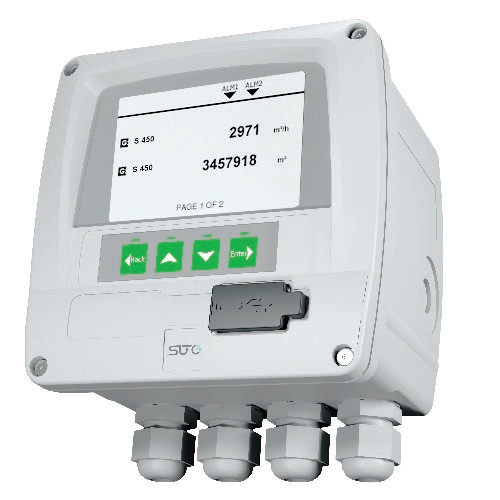

SUTO S320 Cost Effective Display Solution For Industrial Sensors 2

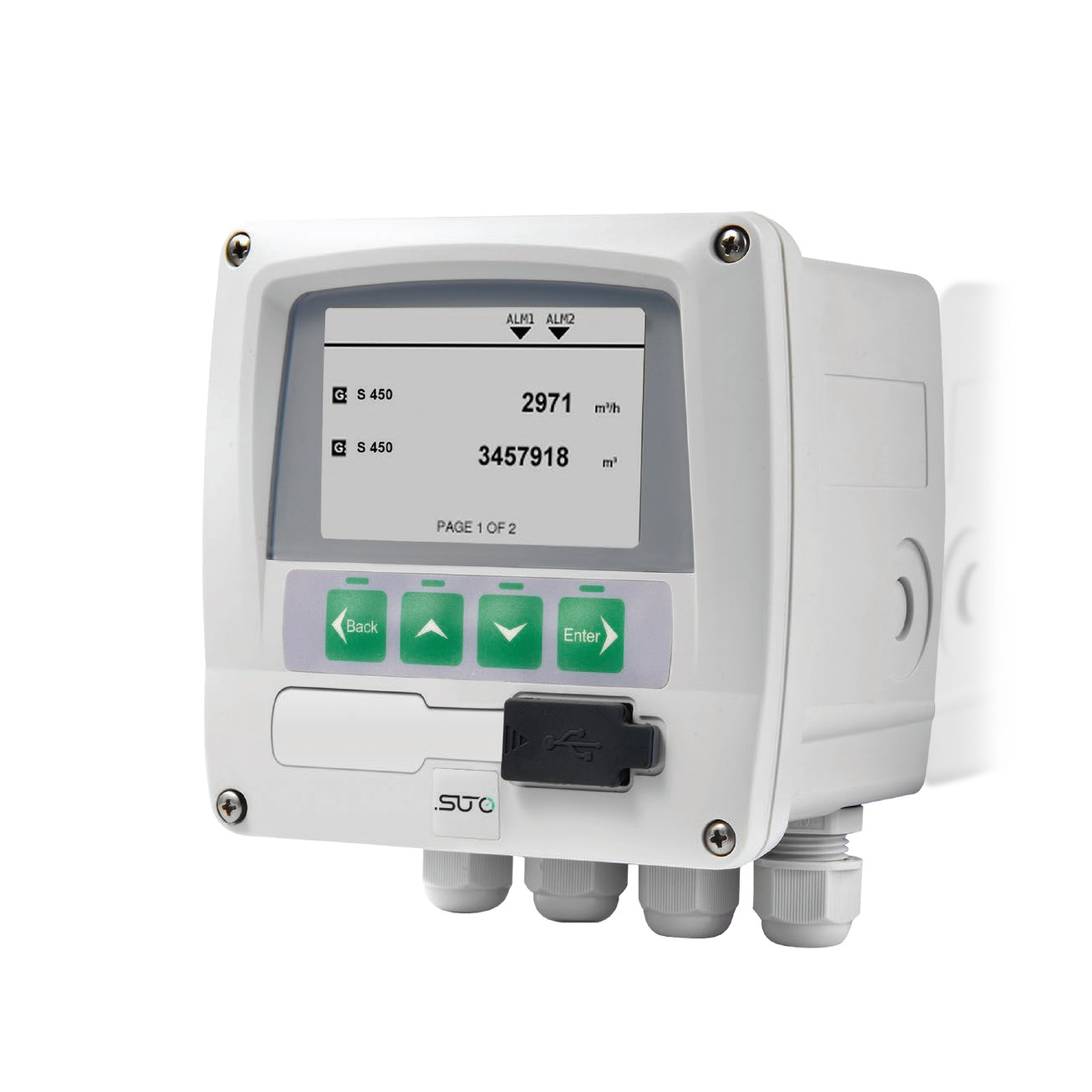

SUTO S320 Cost Effective Display Solution For Industrial Sensors 3
