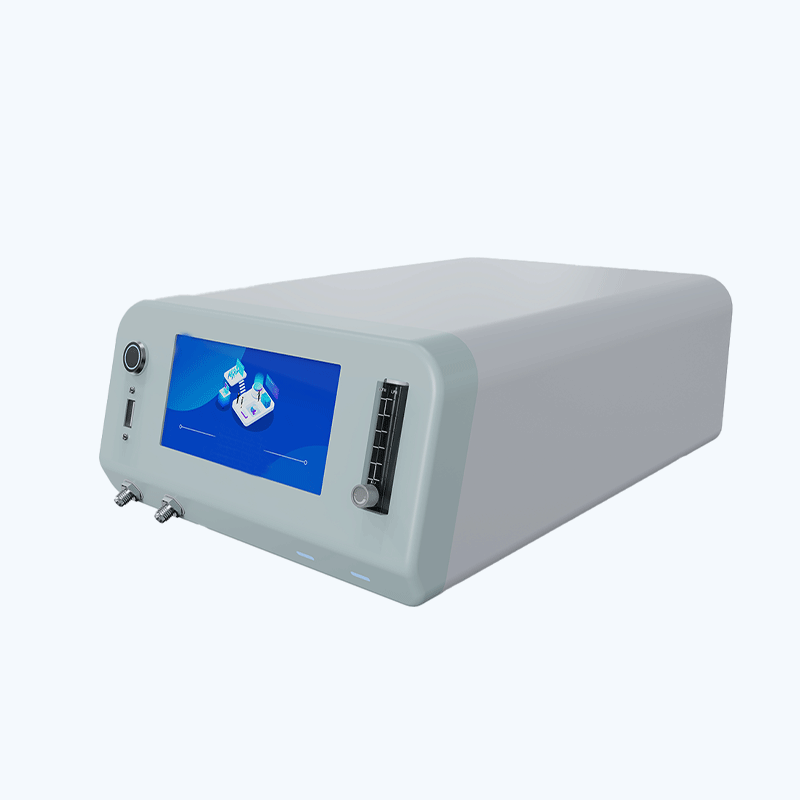

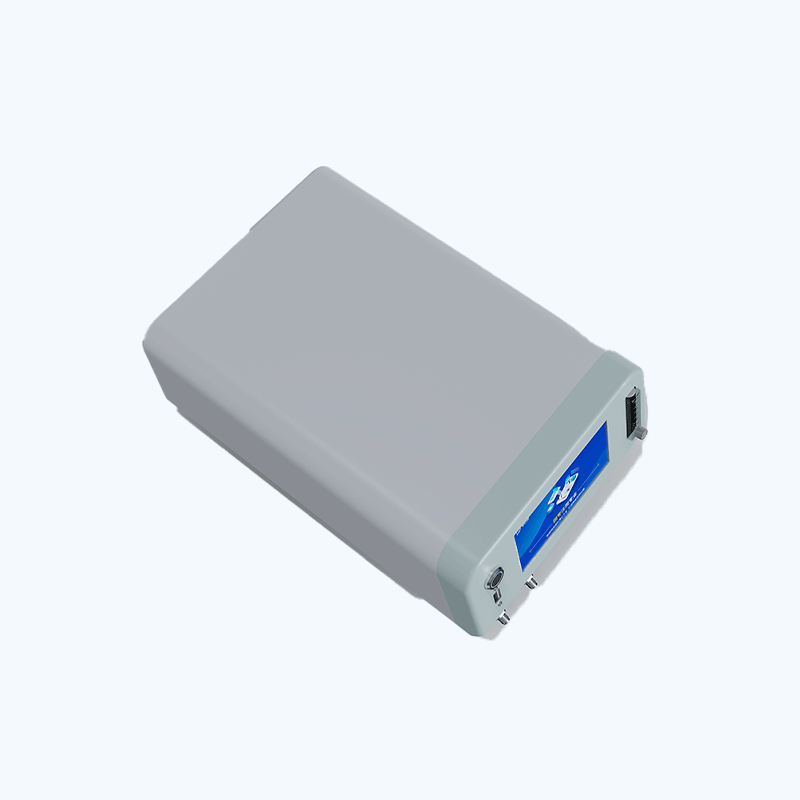

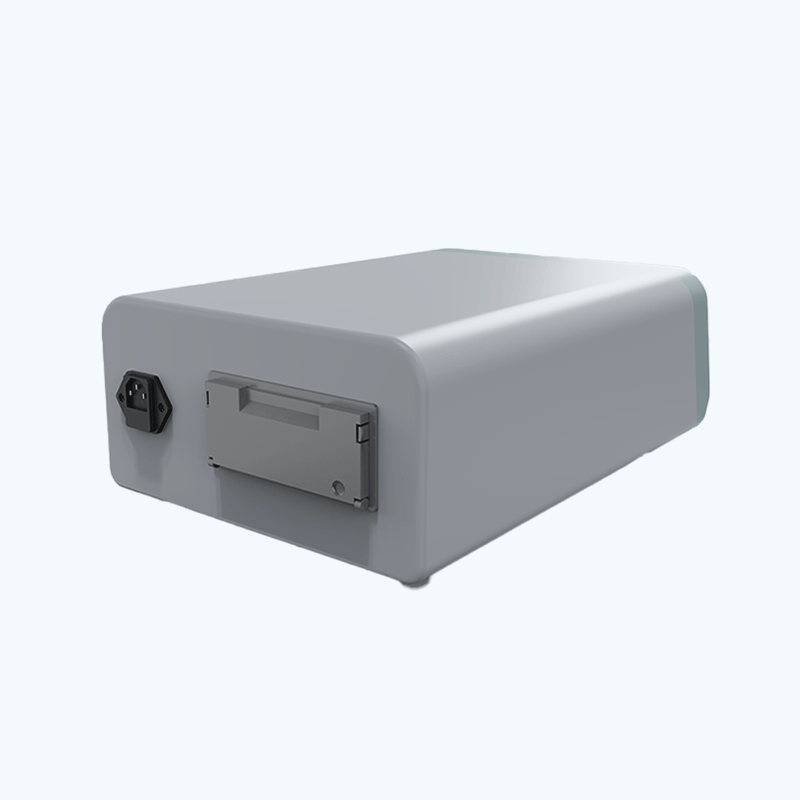

TA-3.5 Online TOC Analyzer for Continuous Water Monitoring
Overview
Features
▪ The instrument is waterproof and dustproof;
▪ Computer port operation, one port can control multiple detection units (optional);
▪ It has functions such as electronic signature and audit tracking;
▪ The UV lamp window is easy to observe and maintain;
▪ The disassembly-free design is convenient for observation and maintenance of
working conditions;
▪ The storage data cycle can be set.
▪ With IQ/OQ/PQ files
Parameters
| Parameter | Specification |
| Power supply | (100‑240) VAC 50/60Hz |
| Power consumption | 100W |
| Tolerance | ±3% |
| Repeatability | RSD≤3% |
| Detection range | (0‑1500.0) μg/L |
| Water sample required conductivity range | (0‑5.1) μS/cm@25℃ |
| Sample temperature | (1‑90)℃ |
| Ambient temperature | (10‑60)℃ |
| Signal output interface | RS232/RS485/4‑20mA |
| Enclosure | Stainless steel |
| Dimensions & Weight | 442422cm; 5kg |
| Warranty time | One year |
Application Scenes
Detection of total organic carbon concentration in purified water, water for injection and
high-purity water in the pharmaceutical industry;
Detection of TOC in ultrapure water in the semiconductor industry, power plants, scientific research units, pharmaceutical industry, chemical industry, etc.;
Online monitoring of water production systems in the pharmaceutical industry, ultrapure
water preparation systems and chip process in the semiconductor industry, deionized
water preparation processes in power plants, etc.
