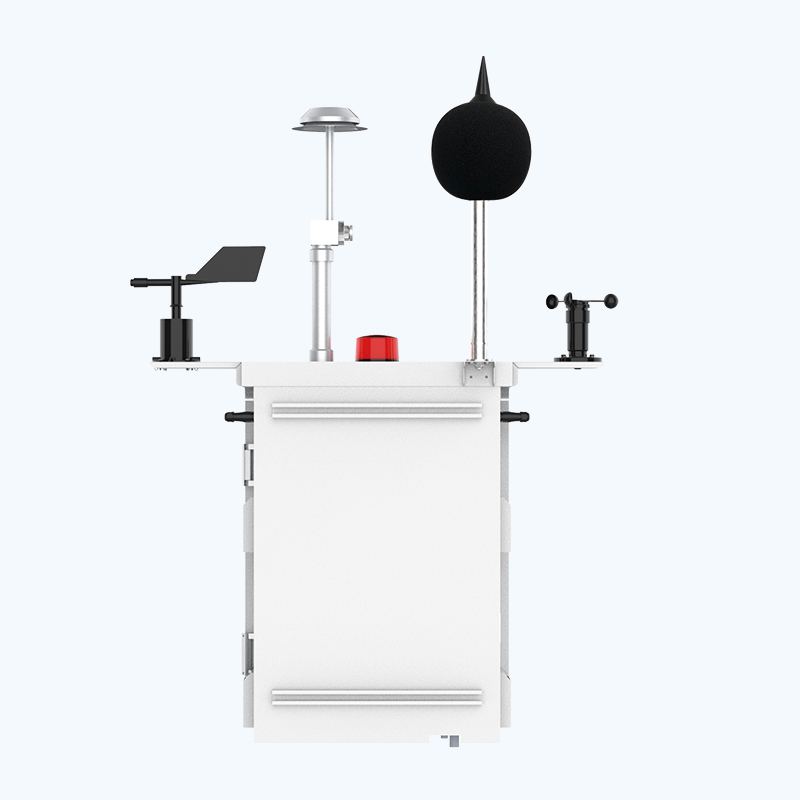

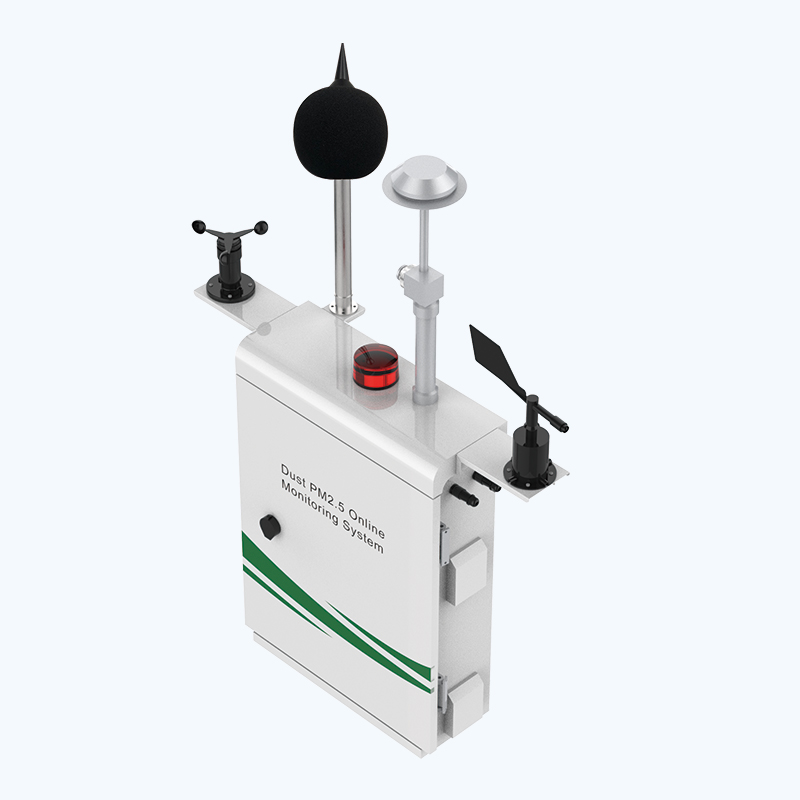

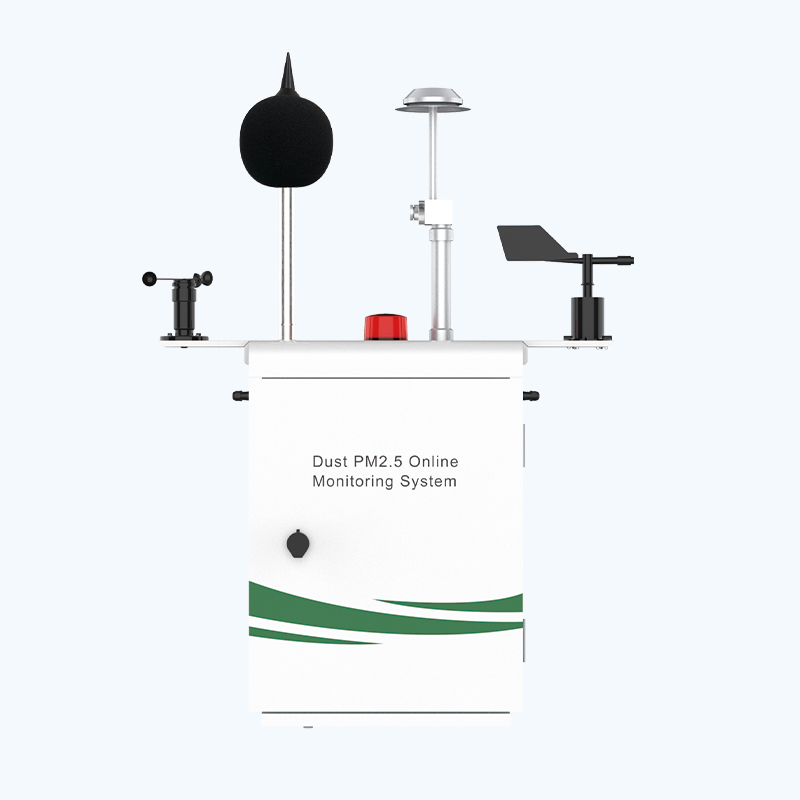

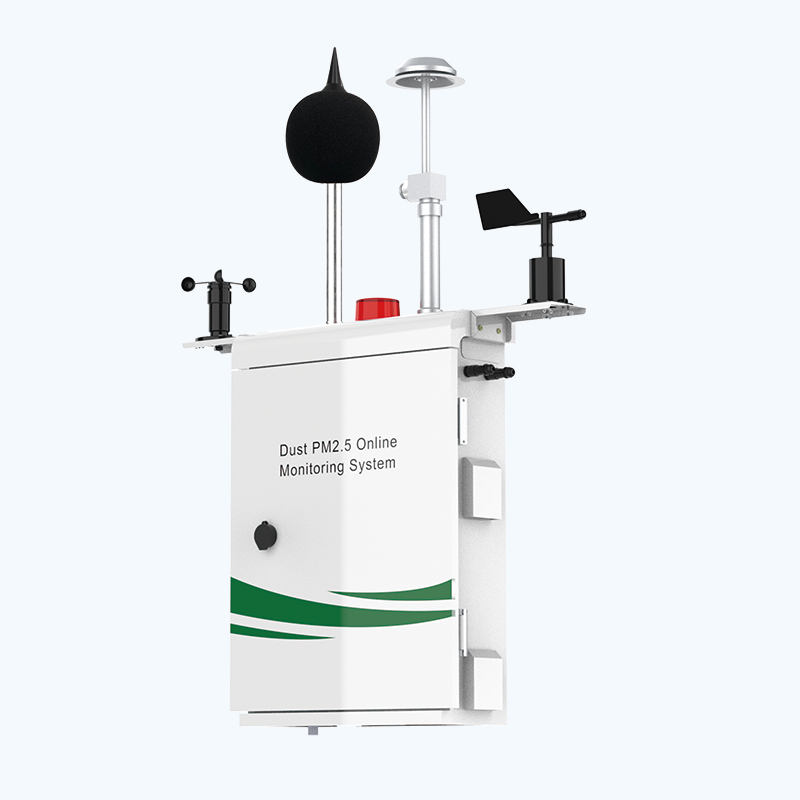

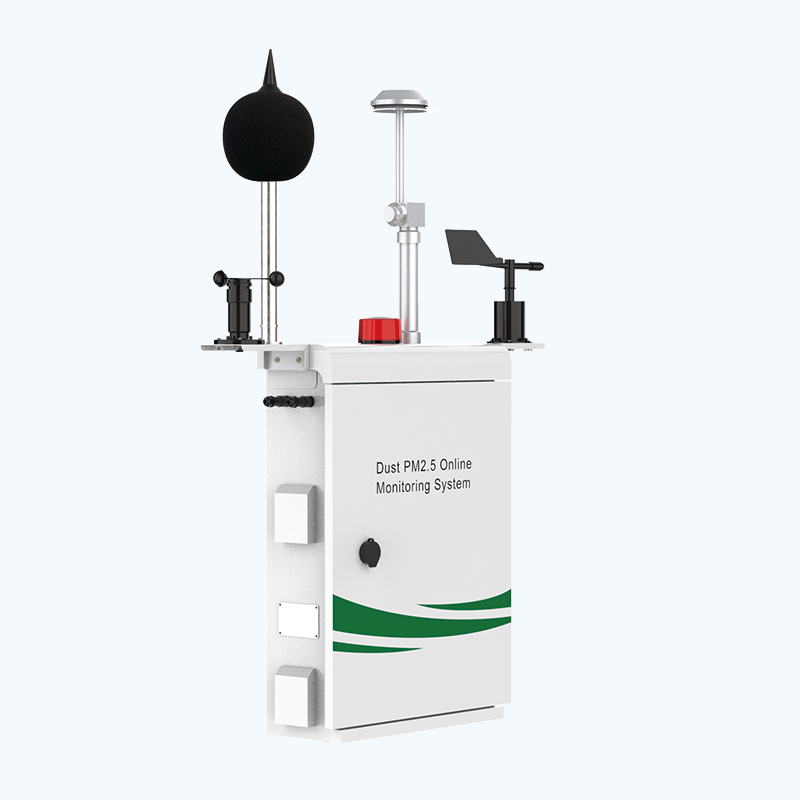

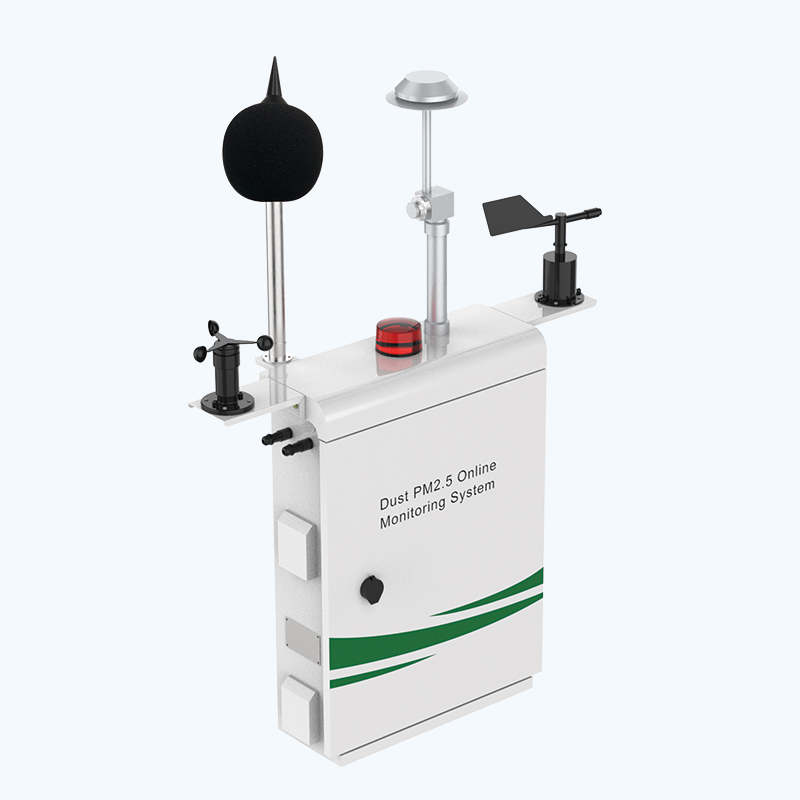

MS800A Online Air Quality Monitoring System for Ambient Air Monitoring
Introducing the "Touch Control Screen", designed to enhance user interaction in various B2B environments. Perfect for conference rooms, manufacturing floors, or retail spaces, this intuitive touchscreen allows seamless navigation and quick access to essential applications, streamlining operations and boosting productivity. Whether facilitating presentations, managing inventory, or enhancing customer engagement, the Touch Control Screen adapts to your needs, making complex tasks simple and efficient.
Overview
MS800A air quality on-line monitoring system (AQMS) combines the technique of electrochemical sensor and laser sensor technology. It can monitor air pollutants CO, PM2.5 and PM10 parameters, combined with no horizon unique temperature and humidity compensation algorithm and other related patent technology measured in gas detection and dust to minimize the influence of environment temperature and humidity on the detection results.
Features
▪ Modular design, suitable for large-scale grid layout;
▪ Can simultaneously measure PM10 and PM2.5, TSP, SO2, NO2, CO, such as O3 concentration;
▪ Industrial-grade embedded processor, suitable for harsh outdoor environment;
▪ Remote data transmission, can also read the system status information remotely, fault diagnosis;
▪ The sampling of particulate matter is controlled by dynamic heating dehumidification control;
▪ Long life anti-interference sampling power system, quiet, efficient; The sampling
Advantages
Product details
Parameters
▶ Our team
| Model | MS800A | Materials | Cold-roll steel sheets |
| Detection Mode | Diffuse | Instation | Post installation |
| Dimension | 620*440*160mm (L*W*H) | Work Tem | -20℃–50℃ |
| Data output | RS485 Modbus, 4G LTE(Optional) | Work Hum | 10% -95%RH (No condensation) |
| Preheat | 90S | Power | AC220V/50Hz, Solar power optional |
| IP grade | IP53 | Dissipation | 80W (MAX) |
▶ Particulate matter parameter
| Cutter | Whirlwind physical cutter | Resolution | 1 ug/m3 |
| Sampling time | Defuat 5 minutes (Customizable) | Samling method | Pumped |
| Diameter | PM2.5, PM10, TSP | Heating | Automatic |
| Measuring range | PM2.5 (0-1000) μg/m3 | Err alarm | Real-time display of fault alarm |
| PM10 (0-1000) μg/m3 | Calibration | Automatic |
▶ Gas factors parameter
| Factor | Measuring range | Resolution | Error of indication | T90 |
| O₃ | 500ppb | 1 ppb | ≤ ±10%FS | 120s |
| NO₂ | 500ppb | 1 ppb | ≤ ±10%FS | 90s |
| SO₂ | 500ppb | 1 ppb | ≤ ±10%FS | 90s |
| CO | 50 ppm | 0.1 ppm | ≤ ±10%FS | 90s |
▶ Optional gas sensor (Maximum 2 kinds)
| Factor | Measuring range | Resolution | Error of indication | T90 |
| TVOC | 10 ppm | 0.01 ppm | ≤ ±10%FS | 90s |
| H₂S | 20 ppm | 0.1 ppm | ≤ ±10%FS | 90s |
| NH₃ | 20 ppm | 0.1 ppm | ≤ ±10%FS | 90s |
▶ Atmosphere parameter (Optional)
| Factor | Measuring range | Resolution | Precision |
| Temperature | -30℃~50℃ | 0.1℃ | ±1℃ |
| Humidity | 0~95%Rh | 1%Rh | ±5%Rh |
| Wind speed | 0~30m/s | 0.1 m/s | ±1m/s |
| Wind direction | 0~360 ° | 1 ° | / |
| Pressure | 300~1100hPa | 1 hPa | / |
| Noise | 30 dB(A) ~ 130 dB(A) (A‑weighting) | / | ±3dB |
| Rainfall | 0~4mm/min | 0.1mm | ±0.4 mm (when ≤10 mm); ±4% (when >10 mm) |
| Illumination | 0~200000 Lux | / | ±7% (25℃) |
Application Scenes
Urban residential areas, key industrial enterprises and other fixed pollution source area environmental monitoring; Unorganized open space environment monitoring for road traffic, catering, agricultural production and tourist attractions; Boundary transport of key pollution sources.
