PTM600 Exhaust Gas Leak Detector IP66 6 In 1 Composite Gas Detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Flue Gas Analyzer | Place Of Origin | Beijing, China |
|---|---|---|---|
| Model Number | PTM600 | Warranty | 12 Months |
| Explosion-proof Gas Detector | Exia II CT6 | Gas Unit | PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l. |
| Size | 230*210*120 Mm (L*H*W) | Weight | 2.5(kg) |
| Highlight | PTM600 Exhaust Gas Leak Detector,IP66 Exhaust Gas Leak Detector,6 In 1 Composite Gas Detector |
||
Product Description

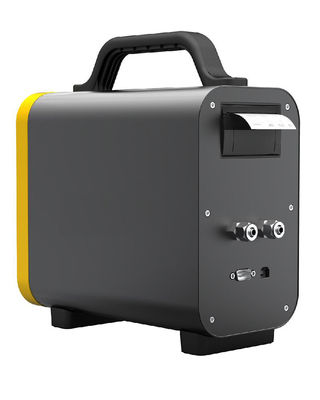

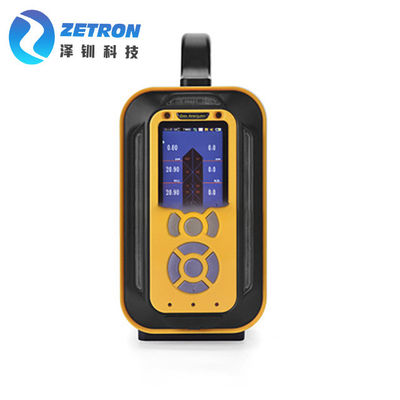

PTM600 Six-in-One Composite Gas Detector
OVERVIEW
PTM600 can be used in accurate detection and analysis of a variety of gas concentration and measurement of environmental temperature and humidity. It adopted advanced electric circuit design, mature kernel algorithm processing, unique external appearance design, had achieved a number of patents about the software works, external appearance, and so on. It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.
SPECIFICATION
|
Gases to be detected
|
Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Optional configuration: temperature and humidity measurements. |
||||
|
Detection range
|
0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
|
||||
|
Resolution
|
0.01ppm or 0.001ppm (0 ~ 10 ppm)
0.01ppm (0 ~ 100 ppm) 0.1ppm (0 ~ 1000 ppm) 1ppm (0 ~ 10000 ppm or more) 0.01 mg/l (0 ~ 200 mg/l) 0.1% LEL 0.01%LEL 0.001% Vol |
||||
|
Detection principle
|
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
|
||||
|
Sensor service life
|
Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years. |
||||
|
Allowable error
|
≤±2% F.S (other or higher precision levels can be customized)
|
||||
|
Linearity
|
≤±2%
|
Repeatability
|
≤±2%
|
Uncertainty
|
≤±2%
|
|
Response time
|
T90≤20 seconds
|
Recovery time
|
≤30 seconds
|
||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
|
||||
|
Sample gas temperature
|
-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
|
||||
|
Power supply
|
3.6VDC, 10000mA high capacity rechargeable polymer battery
|
||||
|
Display mode
|
3.5-inch high-definition color screen
|
||||
|
Alarm mode
|
It is possible to set as sound & light alarm, vibration alarm, turning off the alarm.
|
||||
|
Protection level
|
IP66
|
||||
|
Explosion-proof mark
|
Exia II CT6
|
||||
|
Exterior dimensions
|
230×210×120 mm (L×H×W)
|
||||
|
Weight
|
2.5Kg
|
||||
FEATURES
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper level computer communication software)
·SD card storage
·USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system
· External remote sampling pump
· Multiple humidity dust filter
· CD-ROM (upper level computer communication software)
·SD card storage
·USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
APPLICATION SCENES
It's suitable for all levels of traffic, public security testing stations, environmental protection exhaust control points at all levels, teaching laboratories of colleges and universities, automobile manufacturers, engine manufacturers, motorcycle manufacturing areas, as well as the use of one, two and three types of automobile repair plants, 4S shops, automobile repair and maintenance departments.
