32A Mini Laser Methane Detector GPS ATEX Location Tracking Bluetooth
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Japan TGE Laser Methane Mini 32A GPS ATEX Location Tracking Bluetooth Handheld Laser Methane Gas Detector | Units | Ppm х M / % Vol х M / % LEL х M |
|---|---|---|---|
| Detection Speed | 0.1S | Protection Level | IP55 |
| Operationg Temperature | –17～50℃ | Explosion Proof | Exd IIC T6 Gb |
| Power Supply | Nickel Metal Hydride, Rechargeable | Size | 7 * 17.9 * 4.2 Cm |
| Weight | 0.6kg | ||
| Highlight | 32A Laser Methane Detector,Mini Laser Methane Detector,Laser Methane Mini Gas Detector |
||
Product Description

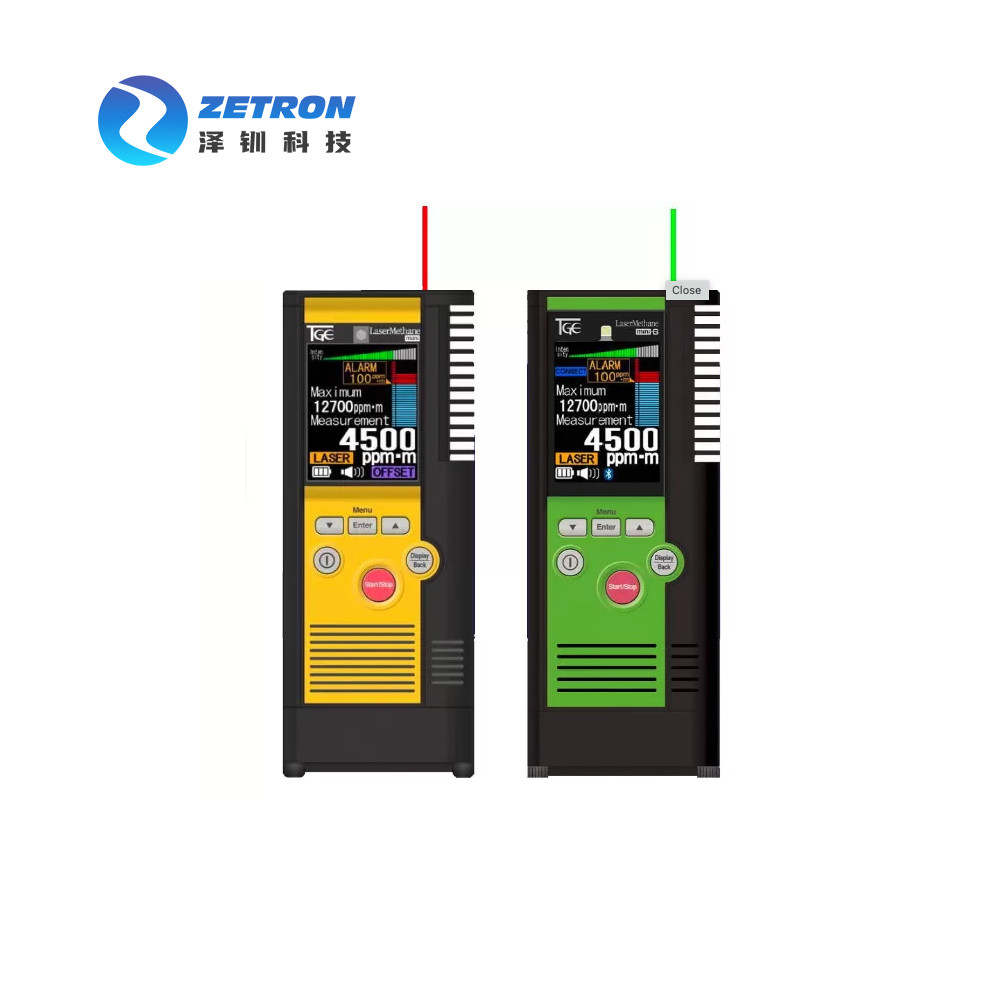

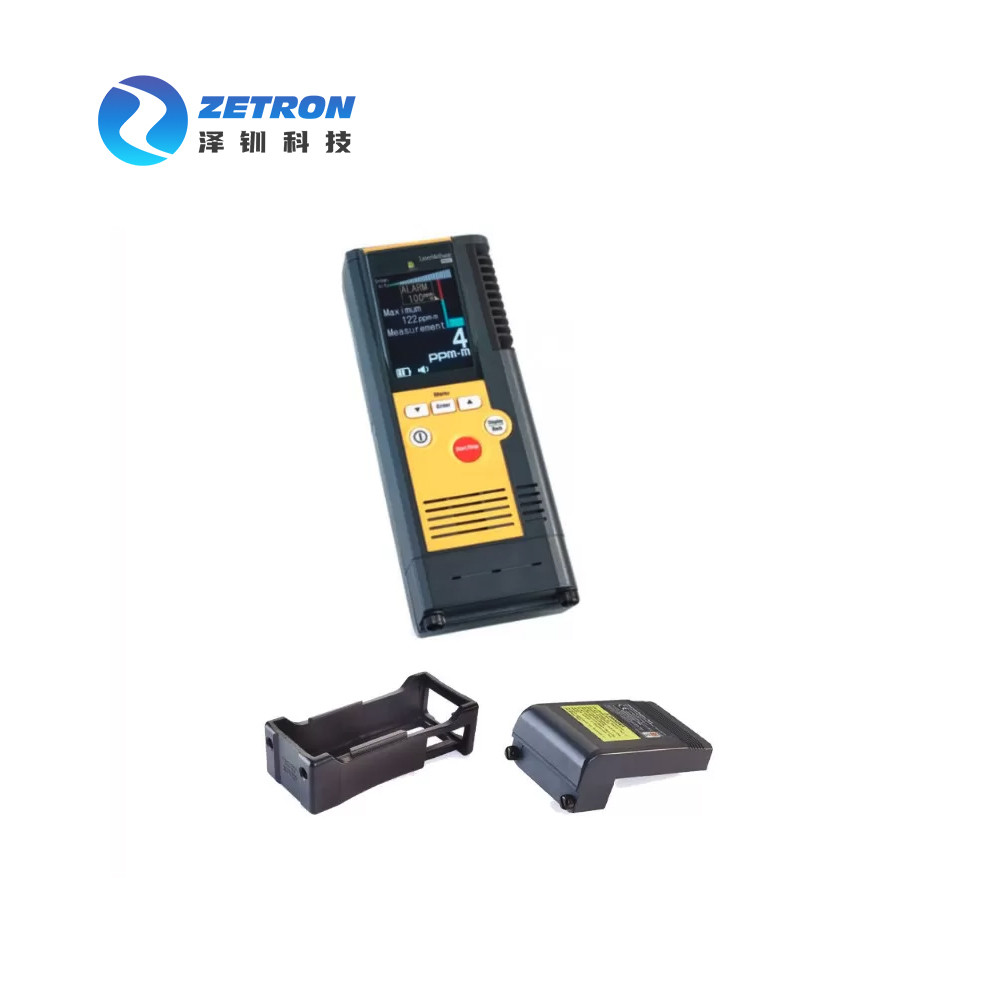

Japan TGE SA3C32A Laser Methane Mini Methane Detector
OVERVIEW
Laser Methane mini (LMm) is a compact handheld detector for the detection of methane gas at a safe distance (0-100m).
Utilising laser technology, methane leaks are located by pointing the laser beam towards the suspected leak, or along the survey line.
This revolutionary technology removes the need to access elevated places, reducing cost and improving the speed of leak detection activities.
LMm is ideal for use in industrial, commercial and research environments, anywhere that methane could be present and in need of locating or monitoring.
LMm is easy to operate and requires no maintenance. An automatic self-check during start-up ensures consistent performance and reliability every time unit are turned on. The green laser guide light is highly visible even under strong sunlight simplifying the task of locating leaks.
The Bluetooth option combines the benefit of LMm with additional data storage functions, allowing connection to an Android device using the GasViewer app.
Important data including gas level, time, date and location are combined and can then be saved or emailed to a central point.
SPECIFICATIONS
| Gas to be measured | Methane (CH4) and methane-containing gases (natural gas or similar) |
| Measurable level | 1～50,000ppm/m |
| Measurable accuracy | ±10% Measuring range : 100 to 1,000ppm-m |
| Measuring Speed | 0.1second |
| Measurable distance | 0.5m to 30m 0.5m to 100m (using a reflect sheet) |
|
Power Supply
|
Dedicated rechargeable battery |
| Continuous Operation Time | Approx4hours (at25℃, Display level : 4 Blinking Mode) |
|
Laser Safety Class
|
Guide light : Class3R Measurement light : Class1 (IEC 60825-1 : 2007) |
| Intrinsically Safe Category | (EN 60079-0 : 2012 , EN 60079-11 : 2012,EN 60079-28 : 2007) |
| EMC | EN 61326-1 : 2013 |
|
|
Operating temperature range:–17～50℃
Splash-proof and dust-proof structure (IP54) |
| Dimension and weight |
70(W)×179(D)×42(H)mm
600g or less (including a battery) |
FEATURES & BENEFITS
- Remote measurement and detection, up to 100 meters (using a reflect sheet)
- No specialist or special access equipment required to detect leaks
- ATEX approved for industrial use and now includes mining applications
- Two versions available with & without Bluetooth
- Real-time data display
- GPS location tracking
- Data storage for traceability
- Ability to capture and store images
APPLICATION
Laser Methane Detectors for natural gas leak detection remote monitoring of elevated methane gas concentrations in ambient air.
It is specifically designed for the constant scanning and monitoring of mission-critical areas such as Leak detection, Emission monitoring , Gas line surveys, Tank inspections, Landfill emission monitoring, Plant safety audits.
