ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m

Place of Origin China
Brand Name zetron
Certification CE
Model Number ZRD2100
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Laser Methane Detector Detecting Gas Laser Remote Methane Gas Leak Detector
Measuring Range 0 To 99,999 Ppm*m Protection Level IP54
Size 206mm×200mm×76mm Weight 2.6kg
High Light

remote laser methane detector handheld

,

100m laser methane detector

,

100m methane gas leak detector

Leave a Message
Product Description

ZRD-2100 Remote Methane Leak Detector

OVERVIEW



ZRD-2100 Remote Methane Leak Detector uses international advanced tunable diode laser absorption spectroscopy technology (TDLAS), which can detect methane gas within a certain distance. At the same time, through optimization design and independent research and development, the detection distance and accuracy of the detector are greatly improved, which is the most powerful safety guarantee for gas inspection and leak detection.

SPECIFICATION



Detection Method
Hand-held Laser Remote Methane Gas leak Detector which can detect 100m
Detection Gas
Methane
Measurement Method
Laser Reflection
Measurement Range
0 to 99,999 ppm-m
Detection Distance
100m nominal. Actual distance may vary due to
background type and conditions
Sensitivity
5 ppm-m at distances from 0 to 15m
10 ppm-m or better from 15 to 100 m
Measurement Accuracy
±10%
Response Time
0.1s
Detection Alarms Modes
Buzz with LCD turning red

 Laser Eye Safety

IR Detector Laser:
Class I
Green Spotter Laser:
Class IIIa; Do not stare into the beam or view directly with optical instruments.
Display
Large easy to read backlit LCD
Compliance
EMC (EN61000-6-2, EN6100-6-4) Pending
Self Test & Calibration
Built-in Self-Test and Calibration function verifies
operation and adjusts laser wavelength for maximum sensitivity. Test gas cell integrated with carrying case.
Battery
Rechargeable Lithium battery
Battery Operating Life
8 hours (Internal battery)
Battery Charger
External, in-line, 220 VAC, 50/60 hertz universal type with charge indicator
Enclosure
IP54 (Water splash and Dust resistant)
Size
206mm×200mm×76mm

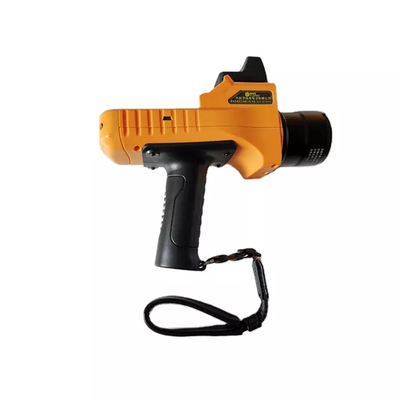

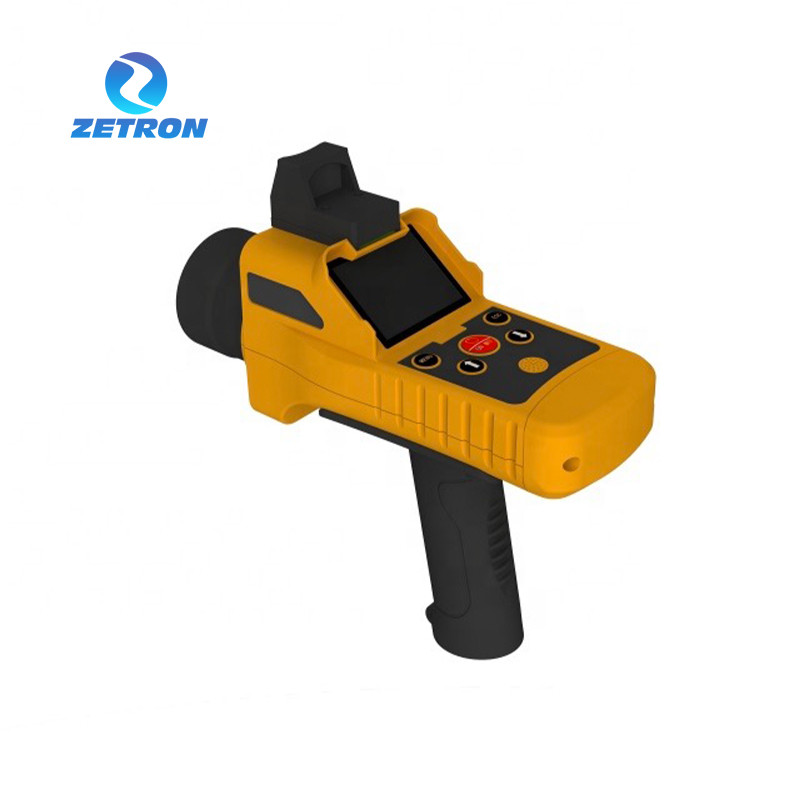

ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 0
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 1
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 2
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 3
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 4
ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 5
APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.



ZRD-2100 Laser Methane Detector Handheld Remote Gas Leak 100m 6
