Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen

Place of Origin China
Brand Name Zetron
Certification CE
Model Number ZT100K
Minimum Order Quantity 1 Piece
Price USD 250-- 300/set
Packaging Details paper carton
Payment Terms L/C, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Single Gas Detector Brand Name Zetron
Function Portable Gas Detector Color Yellow
Alarm Type Light+Sound Warranty One Year
Sampling Method Diffusion Sampling Display LCD Screen
Weight 0.12(kg) Size 114*60*26mm (L*W*H)
Range 0-100ppm Resolution 1ppm
Proof Level IP65 Working Time More Than 10 Hours
High Light

100ppm Personal Gas Detector

,

IP65 Personal Gas Detector

,

LCD Screen Portable Ozone Detector

Leave a Message
Product Description

ZT100K Diffusion Type Portable Ozone O3 Single Gas Detector



OVERVIEW


Providing protection for atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types, ZT100K is unparalleled in its versatility, capability and overall value.
Continuously monitoring and displaying concentrations of gas, the compact and lightweight ZT100K was designed and engineered with an extensive host of applications in mind.


 Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen 0



Product name
portable single gas detector
Measuring Type
Diffusion type
Measuring range
0~100%LEL
0~100%Vol
Other ranges can be customized
Resolution
0.1 %LEL
0.1 %Vol
Other resolution can be customized
Response time
T90 ≤30 seconds
Recovery time
≤30 seconds
Accuracy
±3%FS
Repeatability
3%
Gas Temperature
Regular gas: -30 ℃ ~ + 70 ℃
Toxic gas: -20 ℃ ~ + 50 ℃
Humidity
10 ~ 95% RH
Display
Large LCD displays
Alarm
Voice Warning & Light
Size
0.12 Kg
Weight
114*60*26 mm
Explosion-proof
EXiaIICT4
Protection grade
IP 65
Battery
3.7VDC , 2500mAh
Imported lithium batteries
Charing Time
≤6 hours ( USB charging)
Standard accessories

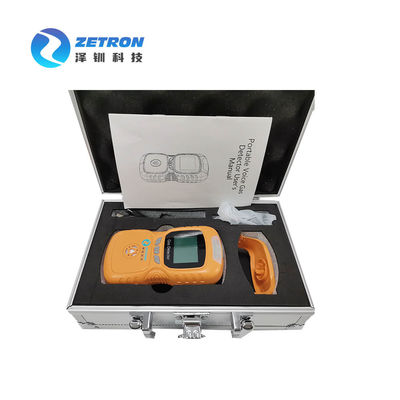

Manual, qualification certificate, warranty card, USB charger, instrument case



FEATURES & BENEFITS



Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen 1



①It is possible to simultaneously detect gases, and the types for detection are more than 500 types.
②It is adopted advanced integrated circuit technology, embedded microcomputer control, high quality advanced imported gas sensor, with excellent sensitivity and repeatability.



Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen 2

• Large LCD display ,easily to read • Multi-language , support Chinese and English
• Multi alarm mode: Low & high alarm, sensor alarm, battery low alarm, automatic shutdown alarm
• Full function self-test confirms sensor, battery and circuitry integrity and audible/visual alarms on activation
• Users can quickly understand the use and maintenance



Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen 3



①Smaller and 50% lighter than competitive instruments, this portable gas detector delivers a high-level of protection wherever it’s needed.
②The shell is made of high strength engineering plastic, with good seismic resistance, dust proof, waterproof and explosion-proof function.

Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen 4



APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.





Item Gas List Range
ZT100K-EX Combustible Gas/EX 0-100%LEL,5%Vol
ZT100K-O2 Oxygen/O2 0-25/30%vol
ZT100K-H2S Hydrogen Sulfur/H2S 0-50/100ppm
ZT100K-CO Carbon Monoxide/CO 0-1000ppm
ZT100K-NH3 Ammonia/NH3 0-50/100/200ppm
ZT100K-O3 Ozone/O3 0-20/50/100ppm
ZT100K-H2 Hydrogen/H2 0-1000ppm
40000ppm
ZT100K-CL2 Chlorine/CL2 0-20/50ppm
0-200ppm
ZT100K-SO2 Sulfur Dioxide/SO2 0-20/500/100ppm
0-1000/2000ppm
ZT100K-NO Nitric Oxide/NO 0-200/500ppm
0-2000/5000ppm
ZT100K-NO2 Nitrogen Dioxide/NO2 0-200/500ppm
0-2000/5000ppm
ZT100K-NOX NOX 0-200/500ppm
0-2000/5000ppm
ZT100K-C2H4O Ethylene Oxide/C2H4O 0-10/50/100ppm
0-500/1000ppm
ZT100K-PH3 Phosphine/PH3 0-20/50/100ppm
0-500/1000ppm
ZT100K-HCL Hydrogen Chloride/HCL 0-10/20/50/100
0-500/1000ppm
ZT100K-CO2 Carbon Dioxide/CO2 5000ppm IR sensor
ZT100K-HCN Hydrogen Cyanide/HCN 0-20/50ppm



 Portable Ozone Personal Gas Detector IP65 0-100ppm Good Seismic Resistance With LCD Screen 5
