Diffusion Measurement protable single gas detector For CO2 CO H2S O2 EX

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MS104K-S1
Minimum Order Quantity 1
Price 320-440USD
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Protable Single Gas Detector Model Number MS104K-S1
Type Biogas Analyzer Detecting Gas CO, CO2, O2, H2S,EX
Display Mode 1.7inch LCD Sensor Type Electrochemical Sensor,IR Sensor And Etc
Unit Ppm, Mg/m3, LEL,VOL Detection Range 0-100ppm,0-100%LEL,0-100%VOL,depending Onrequirement
Sampling Type Diffusion Size 86×62×39mm(L×W×H)
Weight 200g
High Light

CO2 protable single gas detector


H2S protable single gas detector


O2 protable single gas detector

Leave a Message
Product Description

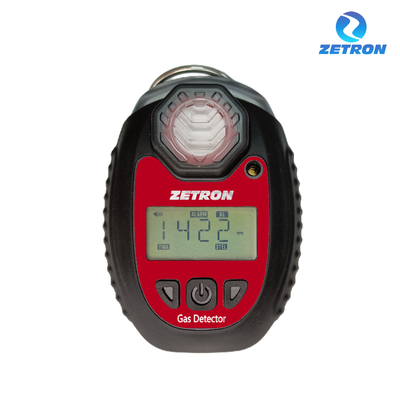

MS104K-S1​ Protable Single Gas Detector

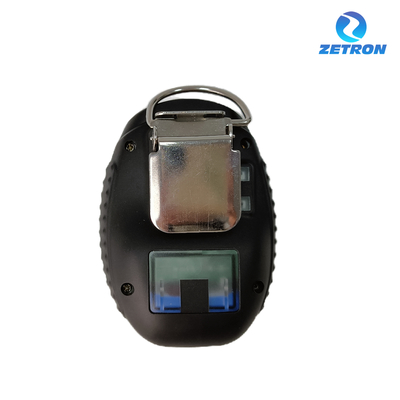

MS104K-S1 is a maintenance-free single gas detector, themost reliable, user-friendly, cost-effective detection solution forworker safety and operational compliance. It offers up to 2 yearsof protection-with no need for calibration, sensor replacement,battery replacement or battery charging.lt's lECEx, ATEX, CNEXexplosion proof certificated and meet the highest standards ofquality and reliability to ensure workers" safety and compliance.MS104K-S1 is small, sturdy, ergonomic, and can be attached to awork coat or cap with alligator clips for easy carrying. it can detectcombustious, toxic and harmful gases like: LPG, CH4, carbonmonoxide, hydrogen sulfide, oxygen and sulfur dioxide, other toxicgases can be customized, which is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.
1. Could test more than 100 gas types, especially with lR sensor forCO2.CH4.LPG,LNG combustious gas detection
2. Standby time up to 2 years, no need to replace the battery
3. Maintenance free: one button to work continuously-no calibration, nosensor replacement, no battery charging
4. With self-test function, improve safety by automatic self-test
5. Light, Sound & Valibration alarm.90dB@30cm
6. Fire-resistant, anti-static and anti-frequency radiation
7. With data storage function, not less than 100000pieces
8. Infrared communication interface
9. With human fell-down alarm function.
10. 1.7inch LCD display with backlit function
11. Atex,lEcex, Sil3 and lP68 certified
MS104K-S1 is widely used in petroleum,petrochemical, metallurgy,chemical and other industries for gasdetection and personnel protection.


Data Sheet
Detection Gas carbon monoxide CO,hydrogen sulfide H2S,oxygen O2,combustible gas Ex,carbon dioxide CO2,etc.
Detection Range 0-100ppm,0-100%LEL,0-100%VOL,depending on requirement
Unit ppm,mg/m3,LEL,VOL
Sensor Principle Electrochemical sensor,IR sensor and etc
Sampling Type Diffusion
Display 1.7inch LCD
Display content real-time concentration,alarm,power,charging status concentration unit,gas name,etc
Accurancy ≤±3%FS
Responding time T90≤30S
Power supply DC3.6V
Battery capacity 1600mAh energy battery,no charging,working time 1-2 years
Working Environment Temperature:-20℃~+50℃,can be customized -40℃~+70℃
Relative humidity:10-95%RH
Communication nfrared,optional communication base for communication,
manual calibration and export of data
Language English
Explosion-proof Exia I CT4Ga,Sil3,Atex
Protection Leve IP68
Size 87x63x32mm
Weight 200g
Standard Accessories calibration cover(diffusion type),instructions,certificate packaging box

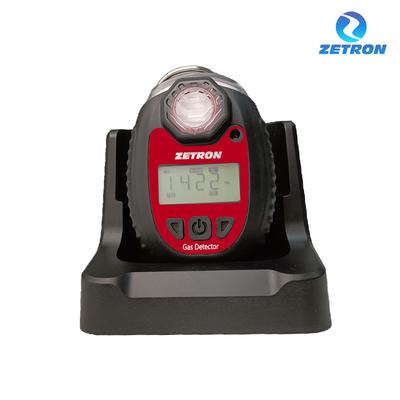

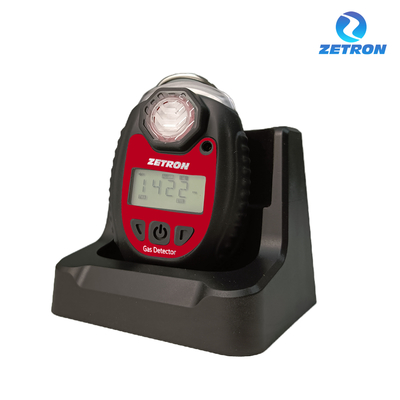

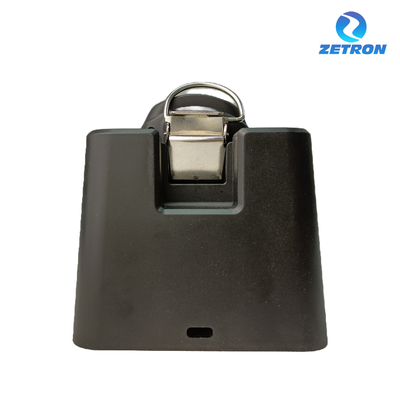

Optional communication base (TYPE-C interface)
