xProduct Details
| Product Name | PTM600 Portable Flue Gas Analyzer | Type | Portable Multi Gas Anlyzer , Built-in Pump |
|---|---|---|---|
| Function | Measure Gas Purity | Sensor Type | Infrared Sensors Imported |
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2 | Connection | Wi-Fi/USB Network |
| Customized Support | OEM, ODM, OBM | Weight | 2.5kg |
| High Light | Portable Biogas Analyzer,Six In One Biogas Analyzer,Gas Station Biogas Analyzer |
||
Product Description

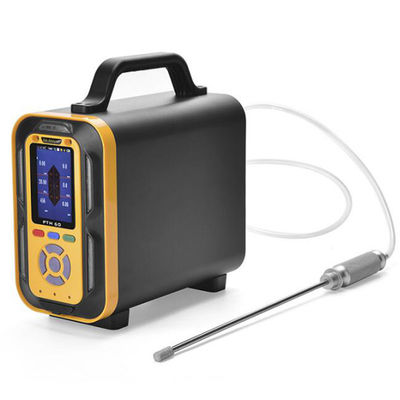

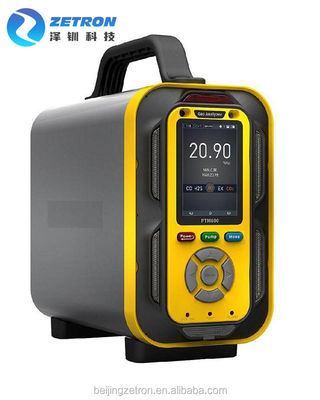

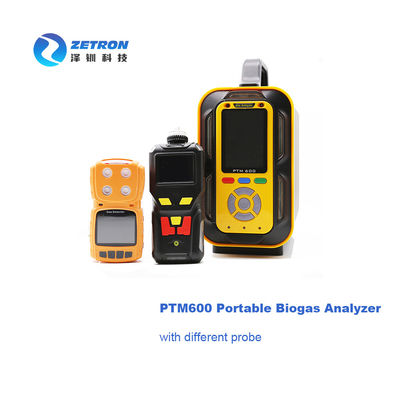

Zetron PTM600 Portable Biogas Analyzer
OVERVIEW
The PTM600 six-in-one biogas analyzer is used for portable occasions that need to accurately detect and analyze the concentration of multiple gases and temperature and humidity measurements.
The PTM600 six-in-one gas analyzer uses a 3.5-inch high-definition color screen to display the concentration in real time. It uses the best brand of electronics in the current industry. Chemical or infrared, catalytic combustion, thermal conductivity, PID photoion principle gas sensor, Swiss high-precision capacitive digital temperature and humidity sensor. PTM600 has advanced circuit design and mature core algorithm processing, and has obtained a number of software copyrights and appearance patents.
PTM600 can detect and analyze the gas concentration in pipelines, confined spaces, and atmospheric environments. It can also detect gas leaks. It can detect more than 500 types of gases. It can also detect and analyze high-concentration single gas purity where various background gases are nitrogen or oxygen.
FEATURES & BENEFITS
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system· External remote sampling pump
· Multiple humidity dust filter· CD-ROM (upper level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
SPECIFICATION
| Gases to be detected | Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements. |
||||
| Application scenarios | All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on. |
||||
| Detection range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized. | ||||
| Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%, 0.001% Vol |
||||
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand. | ||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years. |
||||
| Allowable error | ≤±2% F.S (other or higher precision levels can be customized) | ||||
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
| Response time | T90≤20 seconds | Recovery time | ≤30 seconds | ||
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment. | ||||
| Sample gas temperature | -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃. | ||||
| Temperature and humidity measurement | Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH | ||||
| Power supply | 3.6VDC, 10000mA high capacity rechargeable polymer battery | ||||
| Display mode | 3.5-inch high-definition color screen | ||||
| Detection mode | Built-in pump-suction type measurement, and flow rate at 800 ml / min. Calibration flow rate should be greater than 800 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass |
||||
| Alarm mode | It is possible to set as sound & light alarm, vibration alarm, turning off the alarm. | ||||
| Communication interface | USB (charging and communication), optional: RS232, infrared communication, automatic recognition | ||||
| Data storage | Standard configuration is the data storage capacity for 100, 000 entries; SD card storage and USB disk storage functions are optional configuration. | ||||
| Protection level | IP66 | ||||
| Explosion-proof type | Intrinsically safe type | ||||
| Explosion-proof mark | Exia II CT6 | ||||
| Exterior dimensions | 230×210×120 mm (L×H×W) | ||||
| Weight | 2.5Kg | ||||
| Standard accessories | Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, built-in humidity dust filter, 0.4 meter stainless steel sampling handle (1 meter of hose, with dust filter, not retractable) |
||||
| Optional items |
Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1
meter), external remote sampling pump, high temperature sampling and cooling filter handle, high temperature humidity pretreatment system, CD-ROM (upper level computer communication software), external mini wireless infrared printer, built-in mini printer, SD card storage, USB disk storage, wireless data communications.
|
||||
APPLICATION
It is widely used for Gas Station, Spray Painting, Casting, Steel, LPG station, Coal chemical, Restaurant and etc.
