O2 CO NO Industrial Flue Gas Analyser , Portable Emissions Gas Analyzer

Place of Origin China
Brand Name Zetron
Certification CE/Atex、RoHs
Model Number PTM600
Minimum Order Quantity 1 set
Price USD 890/set - 7298/set
Packaging Details 230x210x120 mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PTM600 Portable Flue Gas Analyzer Type Portable Multi Gas Anlyzer, Built-in Pump
Function Measure Gas Purity Sensor Type Laser/electrochemical/IR Sensors
Detecting Gas O2/ CO /NO/NOx /SO2 Connection Wi-Fi/USB Network
Customized Support OEM, ODM, OBM Weight 2.5kg
High Light

NO Industrial Flue Gas Analyser

,

O2 Portable Emissions Analyzer

,

RoHs Emissions Gas Analyzer

Leave a Message
Product Description

Zetron PTM600 Portable Industrial Flue Gas & Emissions Analyzer



OVERVIEW



Zetron PTM600 Portable Industrial Flue Gas and Emissions Analyzer is the latest in gas detection equipment with Bluetooth technology. Utilizing up to 18 different gas sensors (up to 24 sensors at the most), the technologically advanced detector is designed to fit almost any industrial application. The unit is designed to monitor an array of combustible gases while recording real time data and storing the information for future analysis. The state of the art software package that is included is easy to install and use. Thanks to the thoughtful design and advanced internal technology, PTM600 is one of the most reliable and useful gas analyzers on the market

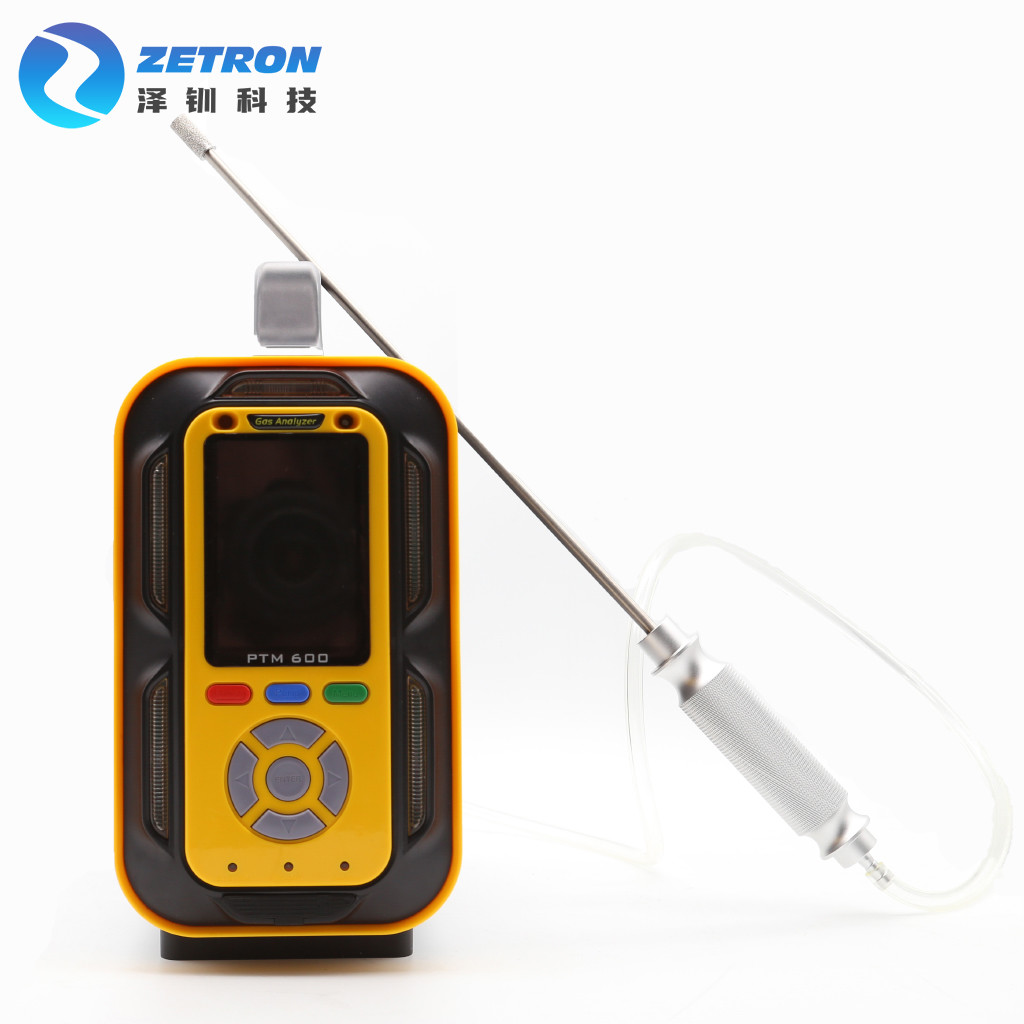

O2 CO NO Industrial Flue Gas Analyser , Portable Emissions Gas Analyzer 0









FEATURES & BENEFITS



① 0.4 meter stainless steel sampling handle (with dust filter, not retractable) ,preliminary treatment of the detection gas, so as to protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm. Alarm types include: concentration alarm, under-voltage alarm, and failure alarm. Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
⑤Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
⑥Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
⑦Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.



SPECIFICATION



Gases to be detected Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Optional configuration: temperature and humidity measurements.
Application scenarios All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%,
0.001% Vol
Detection principle Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error ≤±2% F.S (other or higher precision levels can be customized)
Linearity ≤±2% Repeatability ≤±2% Uncertainty ≤±2%
Response time T90≤20 seconds Recovery time ≤30 seconds
Working environment Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply 3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode 3.5-inch high-definition color screen
Detection mode Built-in pump-suction type measurement, and flow rate at 800 ml / min. Calibration flow rate should be greater than 800 ml / min,
three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode It is possible to set as sound & light alarm, vibration alarm, turning off the alarm.
Communication interface USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage Standard configuration is the data storage capacity for 100, 000 entries; SD card storage and USB disk storage functions are optional configuration.
Protection level IP66
Explosion-proof type Intrinsically safe type
Explosion-proof mark Exia II CT6
Exterior dimensions 230×210×120 mm (L×H×W)
Weight 2.5Kg

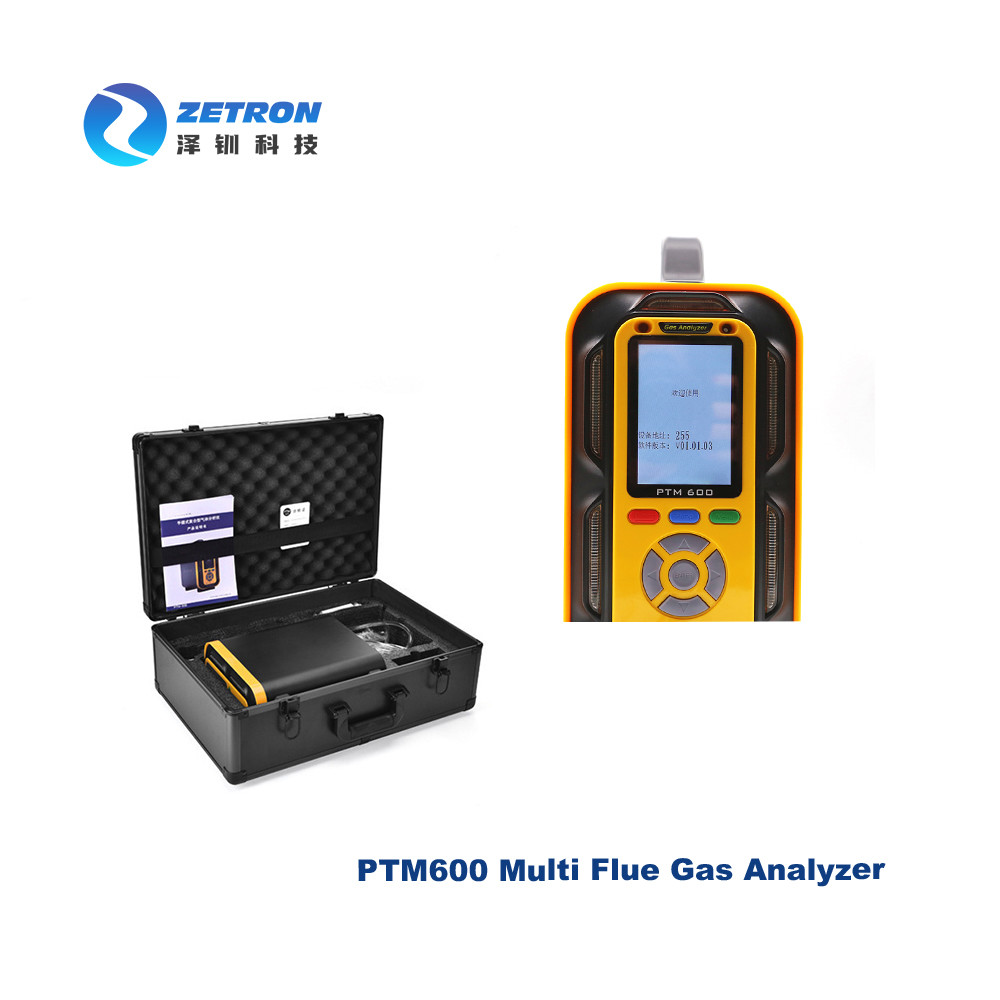

Standard accessories Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
built-in humidity dust filter, 0.4 meter stainless steel sampling handle (1 meter of hose, with dust filter, not retractable)
Optional items
Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1
meter), external remote sampling pump, high temperature sampling and cooling filter handle, high temperature humidity pretreatment
system, CD-ROM (upper level computer communication software), external mini wireless infrared printer, built-in mini printer, SD
card storage, USB disk storage, wireless data communications.







APPLICATION



As one of the best CEMS manufacturers in the world, Zetron has developed this amazing PTM600 flue gas analyzerand it can be applied to exhaust emission monitoring and process control such as coal-fired power plants, garbage power plant, cement, glass, lime factory, ceramics factory, sinter, coke oven, desulfurization, denitration technology and etc.
