6 Channel Airborne Particle Counter Lightweight Air Dust Meter

Place of Origin China
Brand Name Zetron
Certification CE/RohS
Model Number H630
Minimum Order Quantity 1 set
Price 1000-2000USD
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name H630 Particle Counter Particle Channel Sizes 0.3, 0.5, 1.0, 2.0, 3.0, 5.0µm
Light Source Long Life Laser Diode Calibration Particles SIMT Certification
Flow Rate 0.1 CFM /2.83 L/min Sampling Time 1min~15min(15 Levels)
Vacuum Source Internal Pump Data Storage Up To 260,000 Records
Battery 3.7V Li-on Rechargeable Battery 10000mAH Dimensions 245×130×45 Mm
Weight 0.9 Kg
High Light

Lightweight Airborne Particle Counter

,

6 Channel Airborne Particle Counter

,

RohS Air Dust Meter

Leave a Message
Product Description

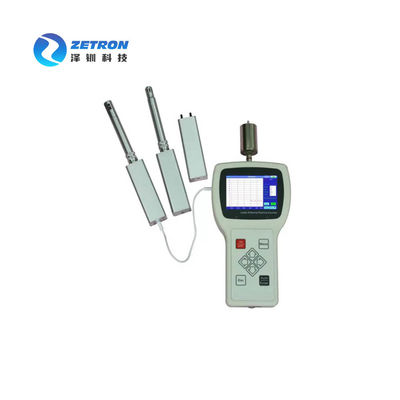

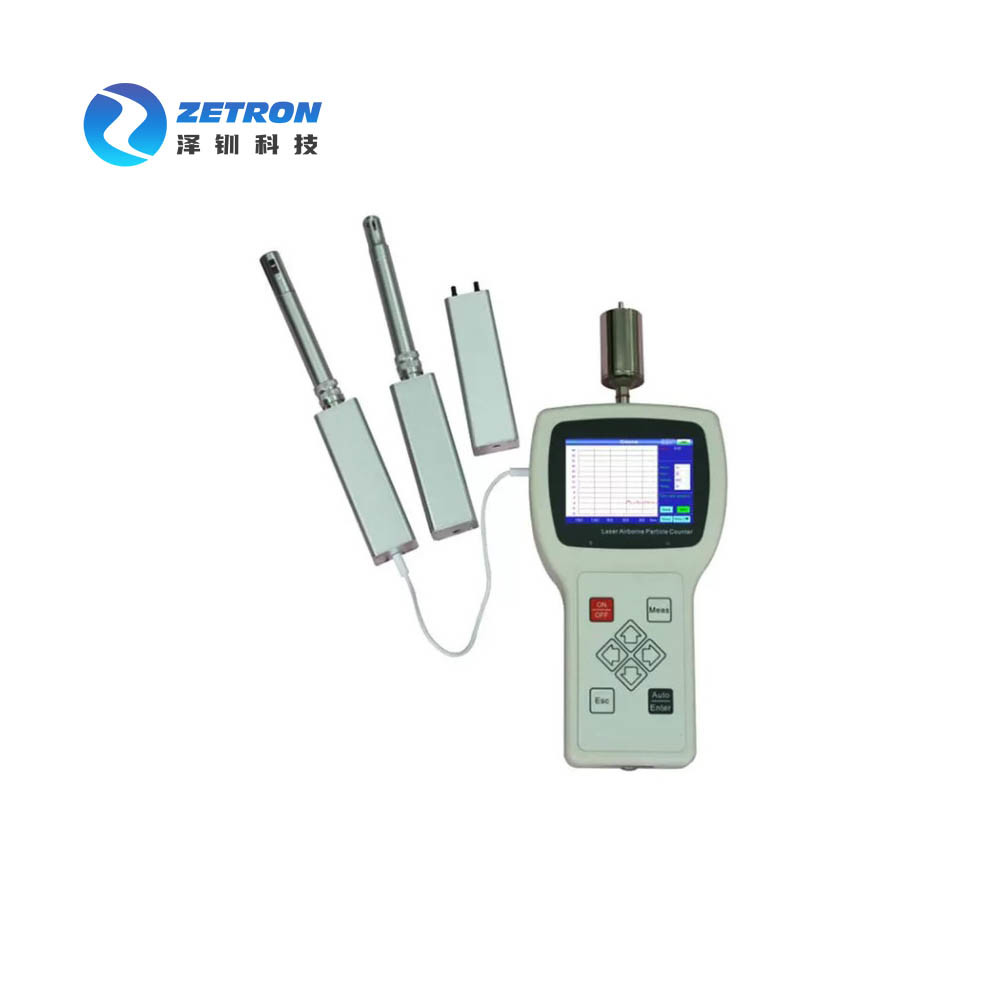

Zetron H630 Handheld Particle Counter with Six Channels

0.3, 0.5, 1.0, 2.0, 3.0, 5.0µm



OVERVIEW


The ergonomically designed and lightweight H630 Handheld Particle Counter features a minimum sensitivity of 0.3 μm and is the most advanced handheld particle counter on the market.

Providing up to 6 particle size channels of simultaneous counting, H630 Handheld can display cumulative and differential particle count data as well as Temperature/Relative Humidity data on the fast and easy to read color touch screen.

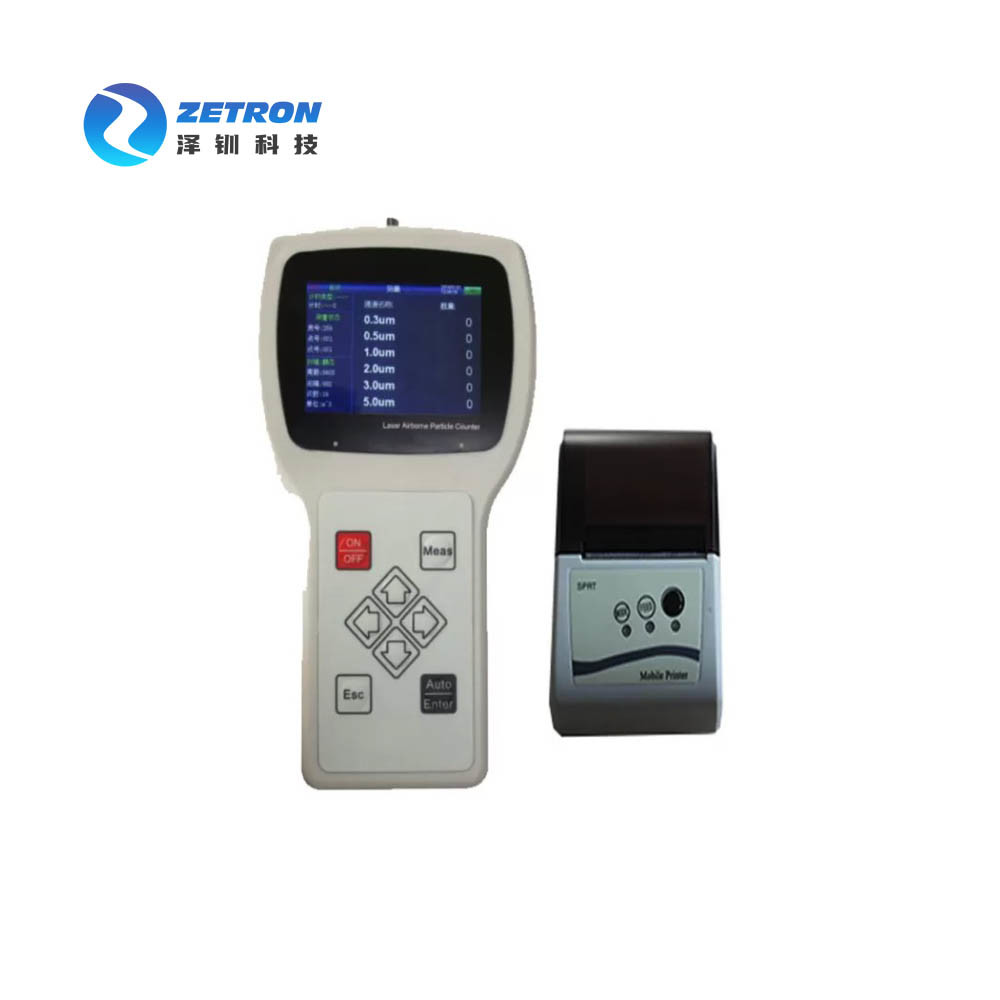

Rechargeable batteries helps to maximize the handheld uptime. Data is easily downloaded using a computer or be printed out by an optional printer. The H630 Handheld Particle Countere can be used as a mobile particle monitor or become a part of a large facility monitoring and management system.

6 Channel Airborne Particle Counter Lightweight Air Dust Meter 0



FEATURES & BENEFITS
  • 0.3µm - 25µm
  • 0.1 CFM (2.83LPM) Flow Rate
  • View 6 Particle Sizes Simultaneously
  • Designed for ISO 21501-4 Compliance: Unit-to-Unit Accuracy and Repeatability
  • Bright 480*320 High-resolution colour LCD display
  • Rechargeable Li-Ion Battery
  • Large Memory for Storing Data (260,000 Samples)
  • 95% UCL Calculation
  • Test Wizard for Cleanroom Pass / Fail Reports: ISO 14644-1 or EU GMP Annex 1
  • Free software,Data easily downloaded to computer, Export each report to office excel.
  • Internal Audible Alarm
  • Ergonomically Designed
  • Lightweight,0.9 kg
  • External function module: temperature and humidity, differential pressure, Air velocity(Selectable)
  • 6 Channel Airborne Particle Counter Lightweight Air Dust Meter 1





SPECIFICATION



Channel thresholds 6 channels:0.3,0.5,1.0,2.0,3.0,5.0um
Flow rate 0.1 ft^3/min. (2.83 L/min)
Light source Laser diode
Calibration particles SIMT certification
Max. concentration 2,000,000/ft^3
Zero count <1 per 5 min
Counting efficiency 50% @ 0.3um, 100%@0.5um
Sampling modes Manual repeated, Auto for UCL calculation (calculation for all 6 channels)
ISO certification ISO 5-8 @ 0.5 and 5.0um
Data storage Up to 260,000 records



APPLICATION


Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.
These units provide immediate results that allow you to proactively monitor your environment.

It's widely used in GMP Controlled Areas, Isolators, Restricted Access Barrier Systems (RABS), Cleanrooms, Hospital Pharmacies, Laboratories, Industrial, Aerospace, etc.



5.0µm Handheld Particle Counter 2
