Dual Light Uv Light Source System O3 Analyzer With Lamp Intelligent Management System

  • Dual Light Uv Light Source System O3 Analyzer With Lamp Intelligent Management System
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UVOZ-1200
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model UVOZ-1200 Optional Ranges 0-300g/Nm3, 0-100g/Nm3, 0-50g/Nm3, 0-1000ppm
Display Interface 4.3" Touch Screen Operator Interface Gas Flow 0.5L ± 0.2L/min
Dimensions 160mm (H) X 260mm (W) X 300mm (D) Power Supply AC 110-220V
High Light

dual light o3 analyzer

,

uv light o3 analyzer

,

intelligent management ozone analyzer
Leave a Message
Product Description

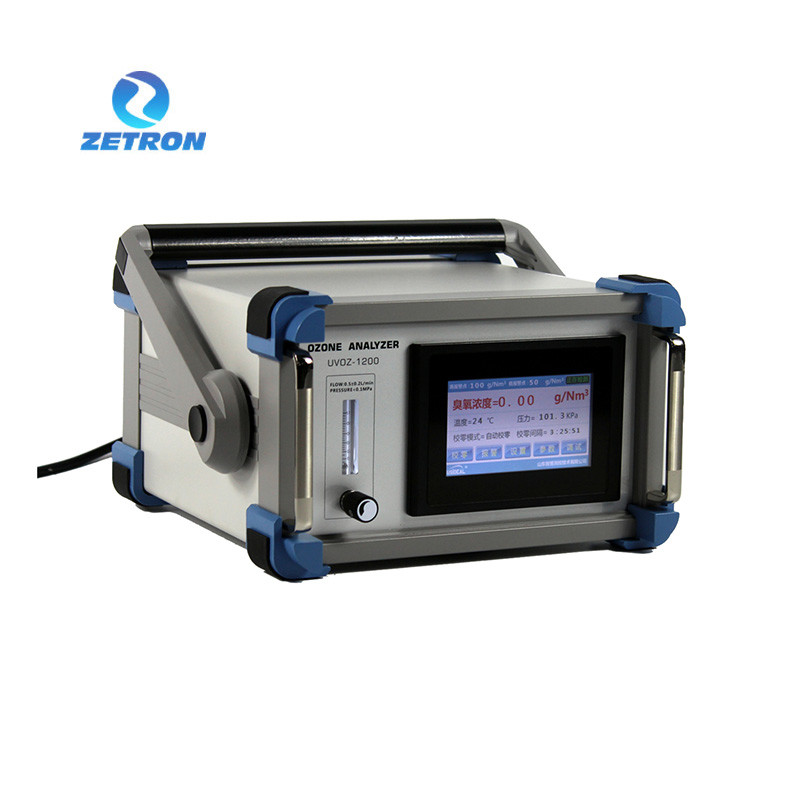

UVOZ-1200 Ozone Gas Analyser

OVERVIEW



The UVOZ-1200 The core component adopts UV long life light source system with high transmittance quartz sheet to ensure the stability of the zero point and prevent the zero point drift from affecting the accuracy of the detection concentration. According to the foreign light cell technology design of pressure-resistant, impact-resistant independent light cell structure, zero calibration operation gas flow, pressure, flow rate remains unchanged, to prevent the impact of airflow on the zero calibration, without closing the ozone inlet can complete the zero calibration operation, to ensure that the equipment can be 24 hours a day continuous operation.


FEATURES



  • Ozone gas analyser calculates the current ozone concentration by measuring the change in light signal intensity before and after ozone absorption of UV light.
  • Display units: g/Nm3, mg/NL, %WT, ppm , mg/Nm3 optional.
  • Operation mode: User can choose between manual zero calibration and automatic zero calibration according to the operating status, automatic zero calibration time can be set.
  • Measuring principle: accurate measurement by photometric absorption principle according to Lambert-Beer's law.
  • Light source system: Foreign long life UV light source system (wavelength 253.7nm), free 3 year warranty.



APPLICATION



It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels and other environments.



PARAMETER



Model UVOZ-1200
Measuring range 0-200g/Nm3
Optional ranges 0-300g/Nm3, 0-100g/Nm3, 0-50g/Nm3, 0-1000ppm
Sampling method positive pressure sampling, negative pressure sampling (optional)
Display interface 4.3" touch screen operator interface
Content interface Ozone concentration, temperature, pressure
Display units g/Nm3, mg/NL, %WT optional
Display resolution 0.01g/Nm3
Gas flow 0.5L ± 0.2L/min
Concentration error 0.3% FS max
Linearity error 0.2% FS max
Zero point drift <±0.3%.FS
Response time 0.03 s for signal, 0.3 s for display
Ambient temperature -20 to 50°C
Tandem sample aperture Φ8 (8mm*6mm) (optional)
Bypass sampling aperture Φ6 (6mm*4mm)
Communication method RS-485
Output mode 4-20mA (active)
Power supply AC 110-220V
Dimensions 160mm (H) x 260mm (W) x 300mm (D);
Note 1mg/L = 1g/m3 = 467PPM.
Free warranty 24 months (mainframe sensor)
