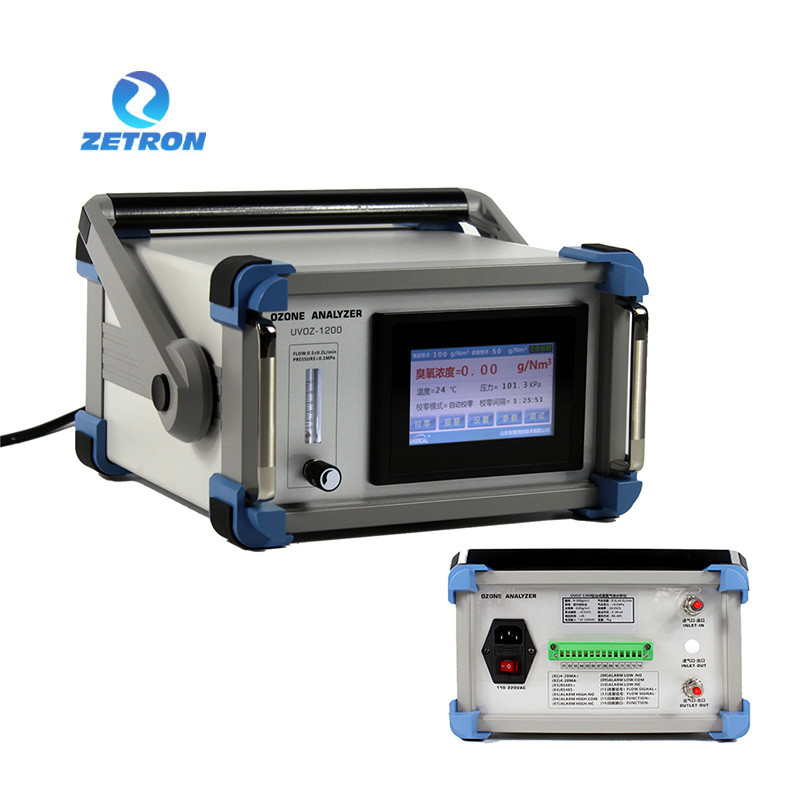

UVOZ-1200 Ozone Gas Analyzer Accurate Measurement By Photometric Absorption

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UVOZ-1200
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Ozone Gas Detection Display Units G/Nm3, Mg/NL, %WT Optional
Display Resolution 0.01g/Nm3 Concentration Error 0.3% FS Max
Linearity Error 0.2% FS Max Free Warranty 24 Months (mainframe Sensor)
High Light

accurate measurement ozone gas analyzer

,

photometric absorption ozone gas analyzer

,

photometric absorption ozone analyzer

Leave a Message
Product Description



UVOZ-1200 Ozone Gas Analyser

OVERVIEW



The UVOZ-1200 uses an advanced dual-light UV light source system with a lamp intelligent management system, which enables the UV lamp to reach the measurement state quickly after switching on. Accurate measurement by photometric absorption principle according to Lambert-Beer's law. Foreign long life UV light source system (wavelength 253.7nm),  Indoor installation with power and signal terminals. Built-in temperature and pressure compensation and display, with automatic compensation of the light source. User can choose between manual zero calibration and automatic zero calibration according to the operating status, automatic zero calibration time can be set.





FEATURES



  • The core component adopts UV long life light source system with high transmittance quartz sheet to ensure the stability of the zero point and prevent the zero point drift from affecting the accuracy of the detection concentration.
  • According to the foreign light cell technology design of pressure-resistant, impact-resistant independent light cell structure, zero calibration operation gas flow, pressure, flow rate remains unchanged, to prevent the impact of airflow on the zero calibration, without closing the ozone inlet can complete the zero calibration operation, to ensure that the equipment can be 24 hours a day continuous operation.
  • Display units: g/Nm3, mg/NL, %WT, ppm , mg/Nm3 optional.
  • HD colour touch screen, high concentration range setting for incoming gas mass flow rate, real time display of yield.



APPLICATION



It is mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels and other environments.



PARAMETER



Model UVOZ-1200
Measuring range 0-200g/Nm3
Optional ranges 0-300g/Nm3, 0-100g/Nm3, 0-50g/Nm3, 0-1000ppm
Sampling method positive pressure sampling, negative pressure sampling (optional)
Display interface 4.3" touch screen operator interface
Content interface Ozone concentration, temperature, pressure
Display units g/Nm3, mg/NL, %WT optional
Display resolution 0.01g/Nm3
Gas flow 0.5L ± 0.2L/min
Concentration error 0.3% FS max
Linearity error 0.2% FS max
Zero point drift <±0.3%.FS
Response time 0.03 s for signal, 0.3 s for display
Ambient temperature -20 to 50°C
Tandem sample aperture Φ8 (8mm*6mm) (optional)
Bypass sampling aperture Φ6 (6mm*4mm)
Communication method RS-485
Output mode 4-20mA (active)
Power supply AC 110-220V
Dimensions 160mm (H) x 260mm (W) x 300mm (D);
Note 1mg/L = 1g/m3 = 467PPM.
Free warranty 24 months (mainframe sensor)
