UVOZ-3300C Ozone Gas Concentration Analyzer To Measurement Of Ozone Generator Output

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number UVOZ-3300C
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model UVOZ-3300C Piping Connection Quick Screw (stainless Steel)
Bypass Sampling Aperture Φ6 (6mm*4mm) Communication Method RS-485
Output Mode 4-20mA (active) Power Supply AC 110-220V
High Light

ozone gas concentration analyzer

,

uvoz concentration analyzer

,

uvoz oxygen concentration analyzer

Leave a Message
Product Description

UVOZ-3300C Ozone Gas Analyser

OVERVIEW



UVOZ-3300C ozone gas analyser mainly used for continuous detection of ozone gas in various industrial environments, and can also be used to detect ozone gas in operating pipelines, vessels and other environments. Patented process with automatic zero correction, dual-optical UV absorption method principle, foreign long-life UV LED light source, continuous operation, ensuring the stability of the detection concentration. Dual-optical UV absorption method, long-life light source system, high measurement accuracy. Measurement principle: accurate measurement by photometric absorption principle according to Lambert-Beer's law. Indoor installation with power and signal terminals. Separate light cell technology, no leakage, high pressure resistance, high flow sampling gas impact resistance.


FEATURES



  • Operation mode: User can choose between manual zero calibration and automatic zero calibration according to the operating status, and can set the automatic zero calibration time.
  • Display units: g/Nm3, mg/NL optional.
  • Data display: HD colour touch screen, high concentration range setting for incoming gas mass flow, real time display of yield (optional).
  • Output functions: 4-20mA, RS485 communication, two sets of alarm point output, electronic flowmeter input, etc.
  • Standard equipment: anti-corrosion flow meter, ozone tail gas destroyer, inlet gas filter.
  • Two sets of relay signal outputs are available, allowing the user to choose between high and low alarm point signal output connections.
  • Intelligent compensation: built-in temperature and pressure compensation and display, with automatic compensation of the light source.
  • The core component adopts UV long life light source system with high transmittance quartz sheet to ensure the stability of the zero point and prevent the zero point drift from affecting the accuracy of the detection concentration.




PARAMETER



Model UVOZ-3300C
Measuring range 0-300g/Nm3
Optional ranges 0-200g/Nm3, 0-100g/Nm3, 0-50g/Nm3, 0-1000ppm
Light source life approx. 30,000 - 50,000 hours
Sampling method positive pressure sampling, negative pressure sampling (optional)
Display interface 4.3" touch screen operator interface
Content interface ozone concentration, temperature, pressure
Auxiliary functions Temperature compensation, pressure compensation
Display units g/Nm3, mg/NL, %WT optional
Display resolution 0.01g/Nm3
Gas flow 0.5L ± 0.2L/min
Input pressure <0.1 MPa
Concentration error 0.5% FS max
Linearity error 0.5% FS max
Zero point drift <±0.3%.FS
Response time 0.03 s for signal, 0.3 s for display
Ambient temperature -20 to 50°C
Piping connection Quick screw (stainless steel)
Tandem sample aperture Φ8 (8mm*6mm) (optional)
Bypass sampling aperture Φ6 (6mm*4mm)
Communication method RS-485
Output mode 4-20mA (active)
Relay signal relay signal for high alarm point, relay signal for low alarm point
Power supply AC 110-220V
Dimensions 230mm (H) x 330mm (W) x 150mm (D)
Note 1mg/L = 1g/m3 = 467PPM.
Free warranty 24 months (mainframe sensor)

APPLICATION



UVOZ-3300C ozone gas analyser is widely used in pharmaceutical, chemical, municipal and wastewater treatment industries for the measurement of ozone generator outlet concentration and ozone generator output.

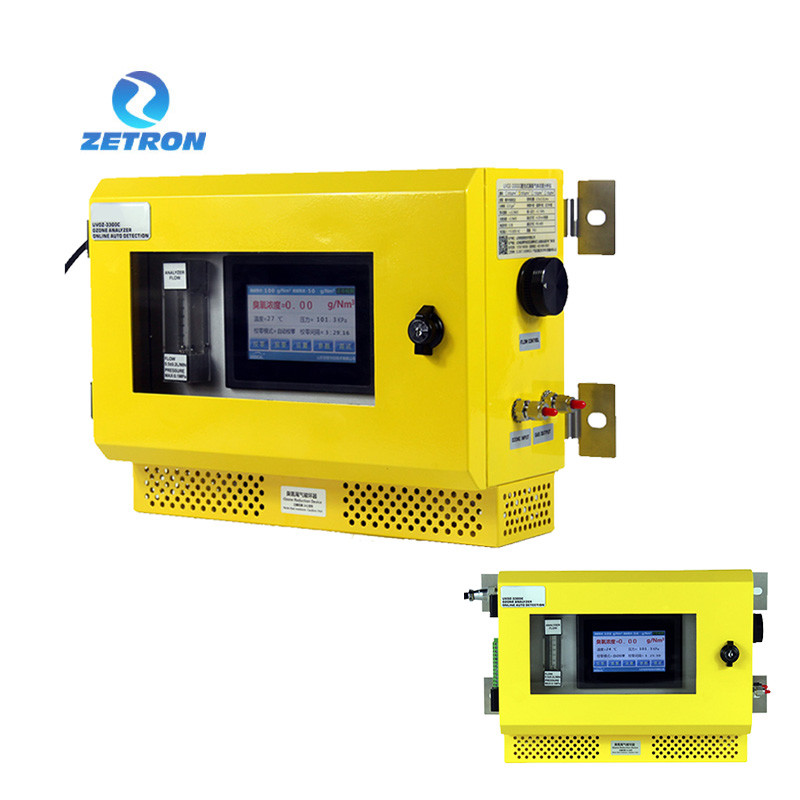

UVOZ-3300C Ozone Gas Concentration Analyzer To Measurement Of Ozone Generator Output 0

UVOZ-3300C Ozone Gas Concentration Analyzer To Measurement Of Ozone Generator Output 1
