MIC3000 Combustible Gas Detector Control Panel With Fixed Gas Detector

  • MIC3000 Combustible Gas Detector Control Panel With Fixed Gas Detector
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC3000
Minimum Order Quantity 1 piece
Packaging Details paper carton
Delivery Time 5-8days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Display Range Digital 0～99999
Display Accuracy ±0.1%FS Operating Temperature -40℃ ~ +70℃
Relative Humidity 0 ~ 95%RH High Power Consumption 2.5W/ Channel
Installation Method Wall-mounted Warranty 1 Year
High Light

RS485 Gas Alarm Controller

,

4 Channel Gas Alarm Controller
You can tick the products you need and communicate with us in the message board.
Product name
Leave a Message
Product Description

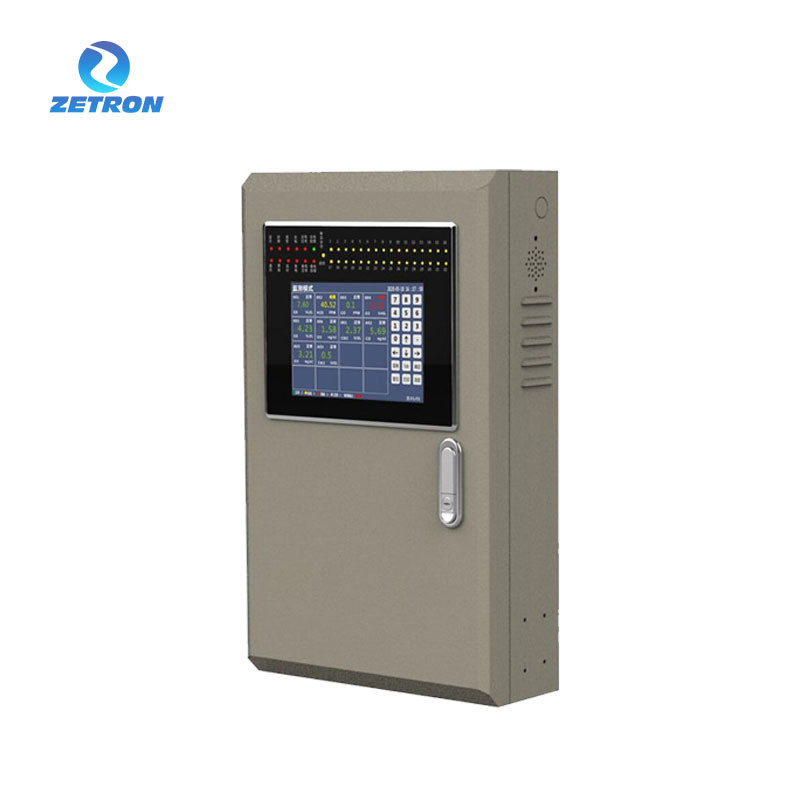

MIC3000 Combustible Gas Detector Control Panel



OVERVIEW



Gas alarm controller with computer monitoring function can be connected to a computer to continuously monitor real-time concentration through the host computer software 24 hours a day, automatically store data on the computer, computer alarm (need to be equipped with speakers), or through the host computer software to read the records stored in a probe or all probes and data analysis, can display the maximum value, minimum value, average value, historical curve, real-time curve and other functions, can export data or printing.



SPECIFICATION



Output signal RS485 (standard MODBUS protocol), 4-20mA (4 channel, 8-channel optional), Ethernet, wireless (4G/3G/2G 433M LoRa Zigbee), etc.
Display range Digital 0～99999
Resolution 1, 0.1, 0.01, 0.001 selectable
Display Accuracy ±0.1%FS
Alarm mode

Sound and light alarm, each circuit can be individually set high and low limit alarm value,

each circuit can be bound to three relay linkage output
Working temperature -20℃～+55℃, 10~85%RH, non-condensing occasion use, waterproof splash and short time rain
Power source AC 180~240V 50H/60H
Maximum power consumption Less than 10W (no-load)
Backup power supply Optional as needed, price is extra
Installation method Wall-mounted
Optional functions All-in-one printer, Bluetooth printer, wireless transmission (GPRS, Bluetooth, WiFi, 433M, LoRa)



FEATURES & BENEFITS



1,Adopting high-speed, highly integrated microprocessing system, standard ARM architecture core, high performance, low power consumption;
2,using Linux, uC/OS real-time operating system, modular design, standard software architecture, high degree of integration, fast operation speed, good stability;
3,high-definition large 9-inch LCD touch screen, high resolution, good visual effect;
4,Industrial-grade UI design, multiple display modes, graphic combination, large font display, friendly interactivity;
5,Rich function shortcut keys, numeric keyboard, wireless hand manipulator and touch keys, easy and simple operation;
6,Support multi-level authority user management, menu password protection;
7,Up to 255 channels of input support, 32 relay output, 32 channels of 4-20mA input and output; system cascade maximum support for more than 1000 input channels.
8,Powerful statistical analysis of data, alarm, fault intelligent sorting, total accumulation;
9,Large-capacity data record storage, query, capacity can be increased without limit, flexible data export;
10,Support data record printing, can be built-in or external printer;
11,Controller can be zero point, span calibration and parameter setting for the probe;
12,Channel shielding, alarm delay and other features, easy to apply;
13,Relay output configuration is flexible and versatile, easy to achieve a pair of many, many to one;
14,Strong interface compatibility, support RS485, RS232, RJ45 (network port), etc.
15,Support for Bluetooth, LoRa, GPRS, WIFI, 433M and other wireless communication interfaces;
16,Flexible networking, support for bus and 4-20mA mixed networking;
17,High reliability, multi-level protection measures, with surge, pulse group and electrostatic protection;
18,Support for utility 220V power supply and 24V battery backup power supply, seamless switching;
19,Support other transmitters such as pressure, liquid level, temperature and humidity, wind speed, wind direction and other access;
20,In accordance with the design of the combustible alarm controller GB 16808-2008 standard;

21,Protection level IP65;



APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas,Breweries and so on.



HiYi Fixed Gas Detector Online Monitoring 32 Channel Gas Alarm Controller 6

Tag:Multi channel gas controller,Controller alarm,Gas alarm controller,Gas detector controller,Combustible Gas detector control panel,Gas concentration controller,3000 Degree control system,OEM/ODM gas alarm controller
