Vacuum Zetron Packaging Leak Tester MFT-1000 With 10 Inch Screen

Place of Origin China
Brand Name Zetron
Model Number MFT-1000
Minimum Order Quantity 1 pcs
Packaging Details paper carton
Delivery Time for 1-50 pcs, 7 work days; more than 50 pcs, to be negotiated
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Packaging Leak Tester Model Number MFT-1000
Test Pressure Sensor Error≤±1%F.S. Minimum Detectable Aperture 2μm
Display Method 10-inch Touch Color Touch Screen Voltage AC100V-240V, 50/60Hz, Power ≤200W
Weight Host: About 30kg
High Light

zetron packaging leak tester


10 inch screen packaging leak tester


zetron vacuum leak tester for packaging

Leave a Message
Product Description

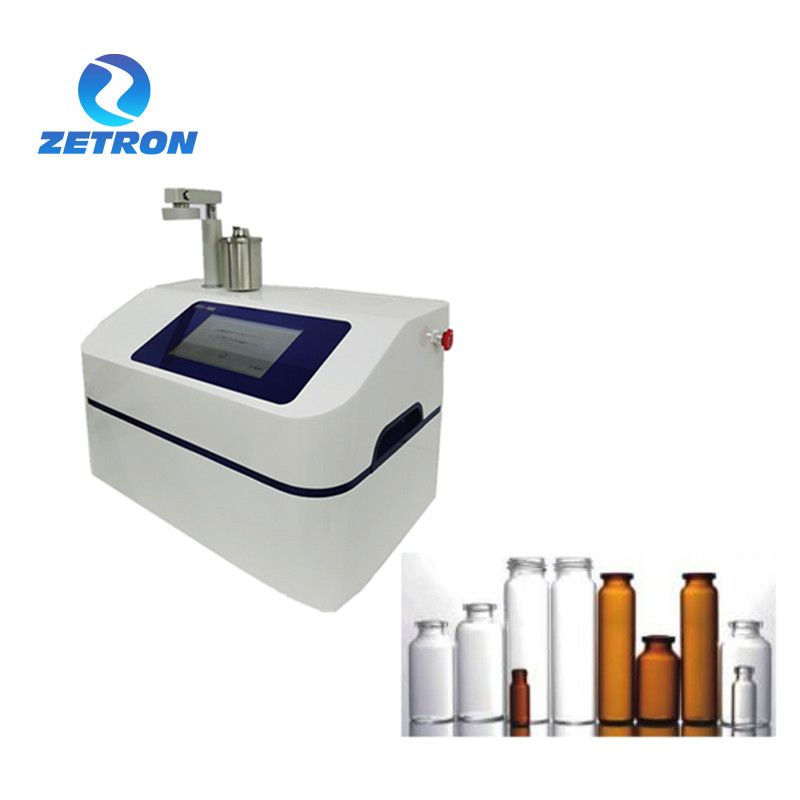

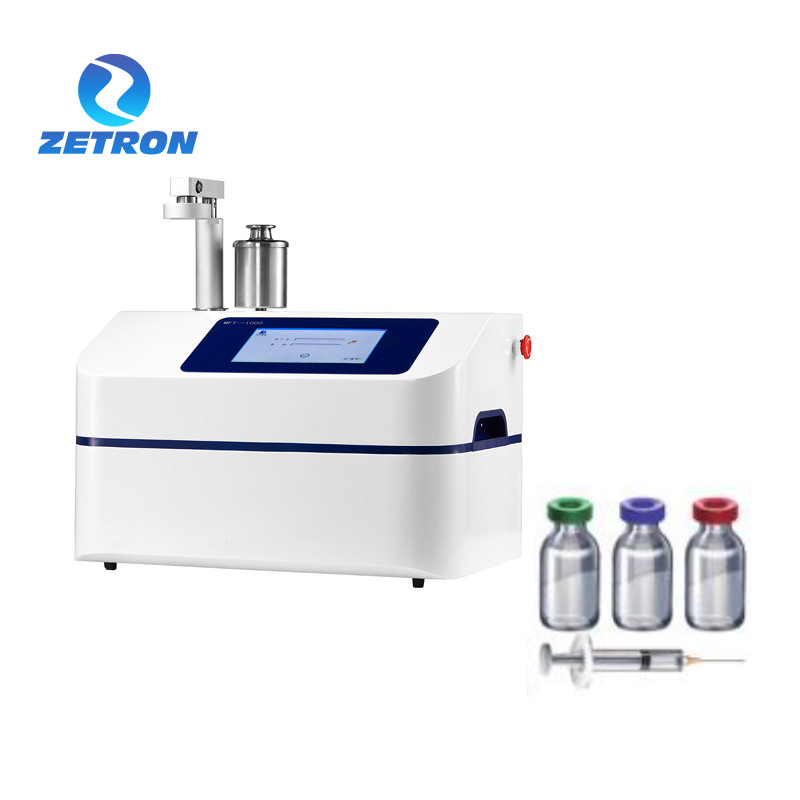

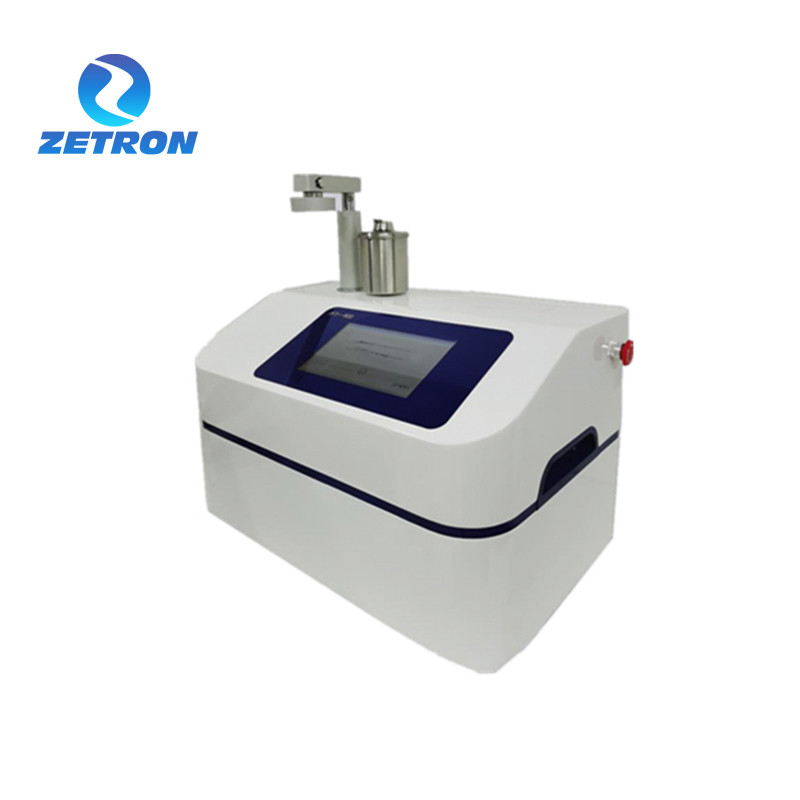

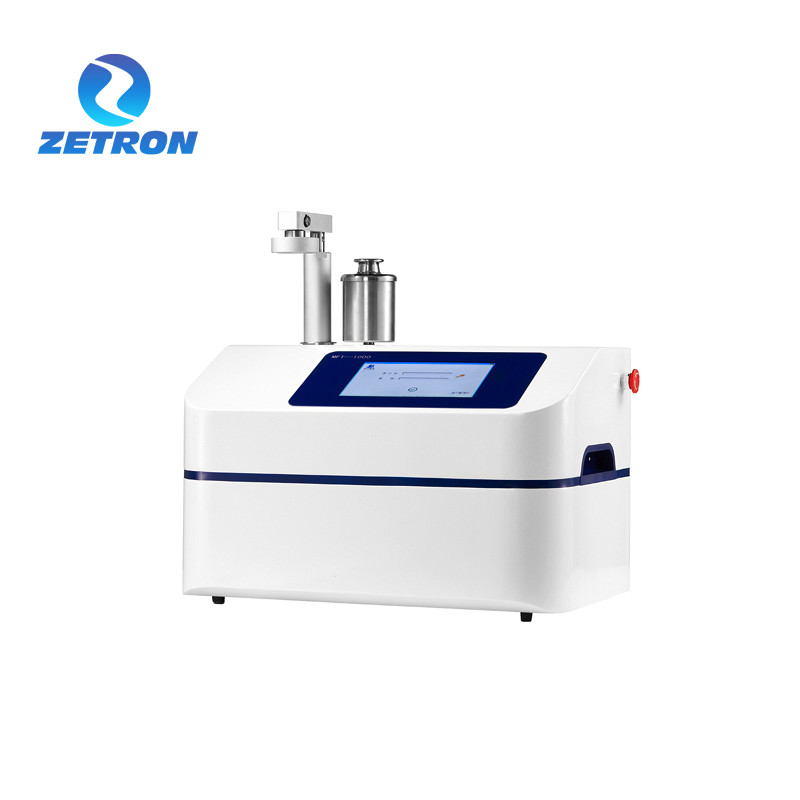

MFT-1000 Packaging Leak Tester



Packaging Tightness Tester, detection type: vials ampoules, pre filled syringes, cartridge bottles, infusion bagsBFS packaging, pharmaceutical industry sealing integrity leak detection solutions. compliance fDA 13287 standard: meet one of USP 1207 test methods: non-destructive testing method.


・ Comply with USP <1207>, ASTM F2338 standards and FDA standards.
・ Semi-automatic detection, suitable for small batch and multi-variety testing.
・ Non-destructive non-destructive testing, high accuracy, repeatability, sensitivity.
・ The instrument is used for vacuum pressure ,pressure decay difference detection.
・ The leak rate can be automatically converted into defect aperture μm.
・ Database storage of test results for easy quality management.
・ Database storage of test results for easy quality management.
・ Touch-type man-machine interface, simple and quick operation: after setting/selecting the test program, only need to manually put in/take out the test sample.




・ Automatically test the flow rate and change the aperture size during the whole process.
・ Automatic leak flow calibration function.
・ Equipped with standard leaks (standard positive bottles, with third-party certification).
・ Four-level user authority management meets FDA 21CFR PART 11 requirements.
・ With audit trail function.
・ Split design, the test chamber is located above the host, and various test chambers can be provided according to different product types.
・ We also provide users with supporting services related to tightness testing, including positive bottle(mould) production, standard leak rate/annual leak verification, new sample mold customization, sample methodological parameter development and verification, etc.
・ The test cavity is customized according to customer needs to ensure that the test cavity is fully matched with the customer's product, and rapid and sensitive testing.


MFT-1000 is suitable for sealing integrity testing of pharmaceutical packaging to prevent moisture, oxygen, and microorganisms from contaminating products. Medicines: bottled, bagged, boxed, ampoules, vials, cartridges, prefilled needles (PFS), (BFS), (FFS), etc. Spray cans: plunger spray cans; bag-lined spray cans; "energy jacket" spray cans; flexible tube spray cans.



Differential pressure sensor ±2kpa, error≤0.5%F.S.
Differential pressure resolution 0.1pa
Test pressure sensor Error≤±1%F.S.
Test pressure range -0.1~0.2Mpa /-0.1~0.7MPa/-0.1~1.0Mpa(operational)
Minimum detectable aperture

2μm ( for IV bag minimum 5μm)


Display method 10-inch touch color touch screen
Voltage AC100V-240V, 50/60Hz, power ≤200W
Weight Host: about 30kg
Audit trail >=5 years of storage Multiple event logs, which can be queried according to time
Authority management Login with username and password, level 4 authority, meet FDA 21CFR PART 11 requirements
Print function Built in printer
History record >=300000 storage
Data backup Support U disk to export data
Interface Ethernet USB RS485(operational)
