Place of Origin	China
Brand Name	Zetron
Certification	CE, ISO13485, ISO9001
Model Number	PTM600-Bio
Minimum Order Quantity	1
Packaging Details	Plastic case
Delivery Time	3-7 days
Payment Terms	T/T, L/C, Western Union, MoneyGram
Supply Ability	1000 set/month

Product Name	Oxygen And Hydrogen Sulfide Pump Exhaust Biogas Analyzer	Model Number	PTM600
Type	Biogas Analyzer	Detecting Gas	CH4, CO2, O2, H2S
Display Mode	3.5 Inch Color Screen	Sensor Type	Infrared Sensors Imported
Connection	Wi-Fi/USB Network	Size	230210120 Mm (LHW)
Weight	2.5(kg)
Highlight	Color Screen Portable Biogas Analyser , detect a leak Portable Biogas Analyser , detect leak Portable Biogas Analyser

Gases to be detected	Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm) 0.01ppm (0 ~ 100 ppm) 0.1ppm (0 ~ 1000 ppm) 1ppm (0 ~ 10000 ppm or more) 0.01 mg/l (0 ~ 200 mg/l) 0.1% LEL 0.01%LEL 0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life	Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error	≤±2% F.S (other or higher precision levels can be customized)
Linearity	≤±2%	Repeatability	≤±2%	Uncertainty	≤±2%
Response time	T90≤20 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature	-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Power supply	3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode	3.5-inch high-definition color screen
Alarm mode	It is possible to set as sound & light alarm, vibration alarm, turning off the alarm.
Protection level	IP66
Explosion-proof mark	Exia II CT6
Exterior dimensions	230×210×120 mm (L×H×W)
Weight	2.5Kg

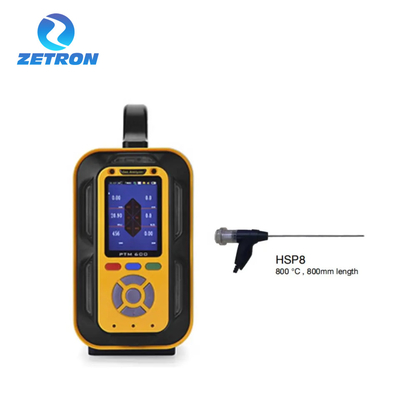

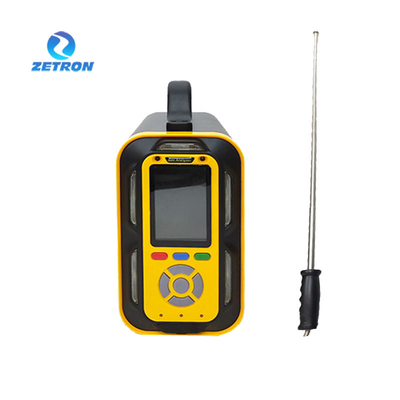

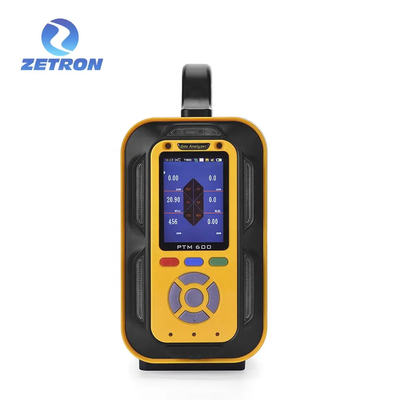

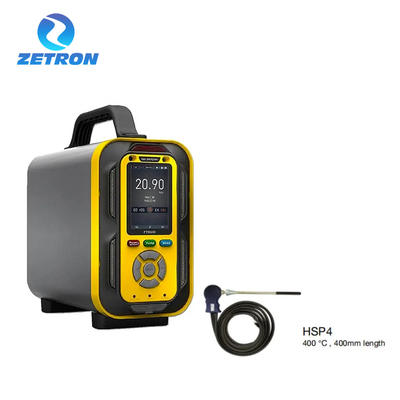

Zetron PTM600-Bio Color Screen Portable Biogas Analyser within the gas plume in order to detect a leak
