Handheld Remote Laser Methane Detector Explosion Proof IP68 TDLAS

  • Handheld Remote Laser Methane Detector Explosion Proof IP68 TDLAS
  • Handheld Remote Laser Methane Detector Explosion Proof IP68 TDLAS
  • Handheld Remote Laser Methane Detector Explosion Proof IP68 TDLAS
Place of Origin China
Brand Name Zetron
Certification Explosion Certifiicate
Model Number MS104K-L10
Minimum Order Quantity 1 set
Packaging Details Packing size:30x20x20cm, paper box
Delivery Time 3-5 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Produtct Name Remote Laser Methane Detector Principle TDLAS
Detection Limit 5 Ppm.m Testing Laser Rating Class I (Harmless To Naked Eye)
Directing Laser Rating Class IIIR (Harmful To Naked Eye) Response Time 0.1s
Protection Level IP68 Sampling Rate 100KHz
Explosion-proof Grade Exib IIC T4 Gb Max Detection Distance 50m
Power Supply Li-ion Battery Weight 0.38kg
Software Phone & PC APP
High Light

TDLAS Laser Methane Detector

,

IP68 Laser Methane Detector

,

Handheld Methane Detector
Leave a Message
Product Description

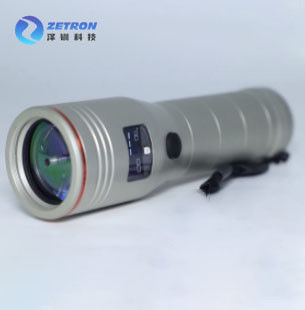

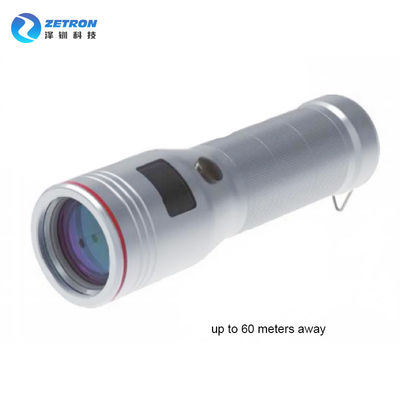

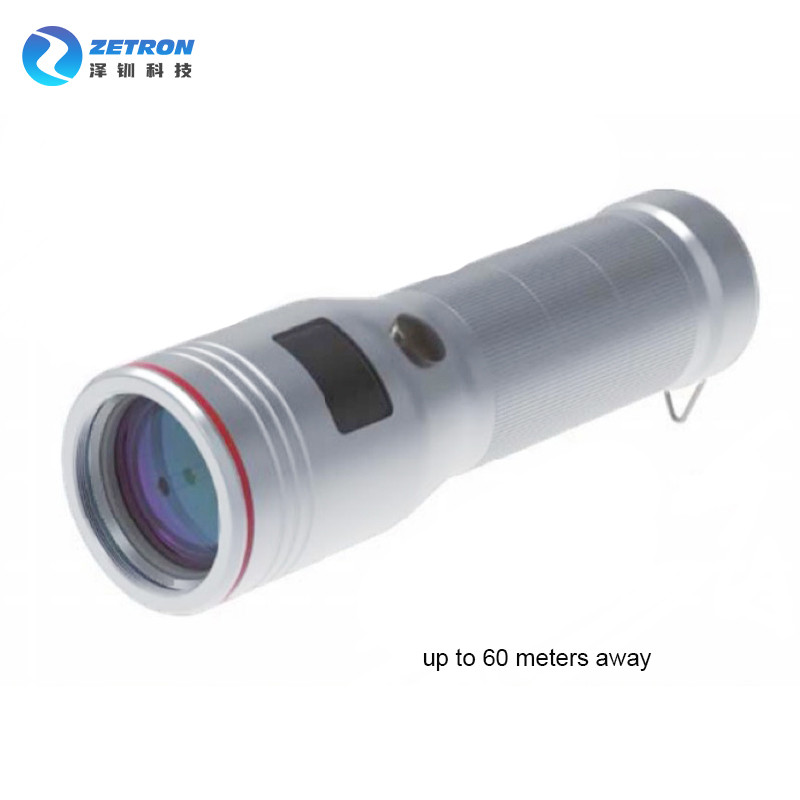

Zetron MS104K-L10 Handheld Remote Laser Methane Detector

OVERVIEW



MS104K-L10 laser methane detector is a gas detection device for remote measurement of methane gas. The device emits two laser beams simultaneously that a green indicator laser points to the detection target and the accompanying invisible infrared laser can measure the concentration of methane gas present remotely in the unit ppm.m.

Handheld Remote Laser Methane Detector Explosion Proof IP68 TDLAS 0



FEATURES & BENEFITS
  •  Super portbale by a 25% weight reduction, a detector that can be put in a "pocket".

  •  Much easier to use with only 1button.

  •  All you care is to point this "flashlight" at inspection target.

  •  The detection distance reaches 50m that satisfy most inspection environments.

  •  Mis-alarm elimination algorithm, Bluetooth and advanced battery management technology, all in one.

  •  Always strong, all metal CNC body.

  •  Protection level reaches IP68.

  •  Corrosion and drop resistance.​

APPLICATION



It can be widely used in urban gas transmission and distribution pipelines, petroleum and petrochemical industries, refineries, chemical plants, metallurgical industries, power industries and other places where gas leakage may occur, it is a good choice for the place cannt be easily reached.



SPECIFICATIONS







Model MS104K-L10 Explosion- proof Grade Exib IIC T4 Gb
Measuring Principle TDLAS Concentration Range 0~100,000 ppm·m
Detection Targets Methane(CH4) Operating Temperature -20°C ~ 50°C
Testing Laser Rating Class I (Harmless to Naked Eye) Max Detection Distance 50 m
Static Detection Limit 5 ppm·m Operating Humidity < 90%RH, No condensation
Directing Laser Rating Class IIIR (Harmful to Naked Eye) Power Supply Li-ion Battery (8h duration)
Response Time 0.1s Size 170 x 52 x 52 mm
Protection Level IP68 Inspection APP AlphaOne
Sampling Rate 100KHz Weight 0.38 kg
