1ppm Pumped Laser Methane Detector 1.5L/Min Handheld Natural Gas Detector

Place of Origin China
Brand Name zetron
Certification CNEX
Model Number G10
Minimum Order Quantity 1 set
Packaging Details paper box, 30cmx25cmx20cm, 2.5kg
Delivery Time 3-5 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name G10 Portable Laser Methane Detector Measuring Principle TDLAS
Unit Ppm,%LEL,%VOL Static Detection Limit 1ppm
Pump Rate 1.5L/min Response Time 0.2s
Explosion-proof Grade Exib IIA T3 Gb Protection Level IP66
Size 208 X 78 X 53 Mm Weight 1.1kg
High Light

Handheld Laser Methane Detector


1ppm Laser Methane Detector


1.5L/min Handheld Natural Gas Detector

Leave a Message
Product Description

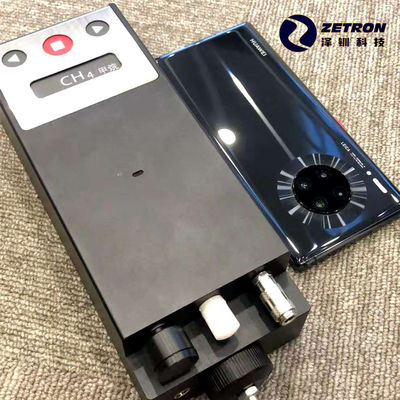

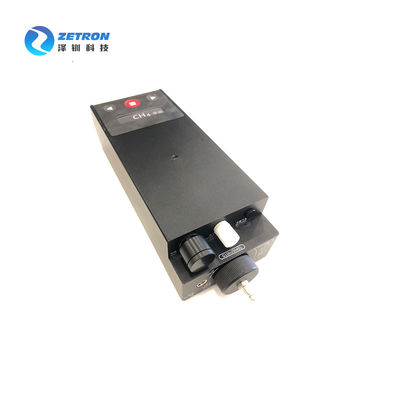

Zetron G10 Portable Laser Methane Gas Detector




Compared with traditional equipment, the laser detector has faster response speed, higher sensitivity, longer life and can be automatically calibrated.The detectrion range is 0-100% Vol, also supports ppm, %LEL, %VOL unit switching.


Compact and sturdy structure with a detection capability of 1ppm in , 0.1 or methane floating in the air, laser detection equipment can perform real-time measurement more quickly.Especially suitable for trace gas detection.


1ppm Pumped Laser Methane Detector 1.5L/Min Handheld Natural Gas Detector 0





TDLAS technology enables the directly concentration detection of ethane and the measurement results can be got in less than 1 second which is much faster and more intuitive than traditional methodsMoreover, it has significant advantages in terms of service life, anti-interference and operation.


  • Using the principle of laser spectroscopy, only methane is detected without interference
  • The measurement sensitivity is 1ppm, and dual ranges are displayed at the same time (ppm vol)

  • Quick start, 3 waterproof buttons are easy to operate, with backlight, easy to read at night

  • Maintenance-free, no need for regular calibration (only need to replace the battery and filter)

  • Powerful expansion function, can form a walking detection system and a small vehicle inspection system

  • Cycle menu with communication interface

  • High-decibel sound alarm and LED flashing alarm function

  • Protection grade IP66

  • Polyamide shell, sturdy and durable

  • ATEX explosion-proof technology






G10 Explosion- proof Grade Exib IIC T3 Gb


Measuring Principle

TDLAS Range  0-100%VOL


Detection Targets

Methane(CH4) Operating Temperature -20°C ~ 50°C



ppm, %LEL, %VOL Inspection APP AlphaOne


Static Detection Limit

1 ppm Operating Humidity < 90%RH, No condensation


Pump rate

1.5L/min Power Supply Li-ion Battery (10hours duration)


Response Time

0.2s Size 208 x 78 x 53 mm


Protection Level

IP66 Weight 1.1 kg



Handle probe Optional Accessories Bell probe/Carpet probe







1ppm Pumped Laser Methane Detector 1.5L/Min Handheld Natural Gas Detector 1
