LCD Display Exhaust Gas Analyzer 70~106Kps Portable Opaque Smoke Meter OEM Accept

Place of Origin China
Brand Name Zetron
Certification CE
Model Number SV-5Y
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Opaque Smoke Meter Model Number SV-5Y
Display 7 Inch High Brightness LCD Display Temperature -5~40℃
Color Orange Humidity ≤95% RH
Pressure 70~106 Kps Warranty 12 Months
High Light

LCD display Exhaust Gas Analyzer

,

106Kps Exhaust Gas Analyzer

,

OEM Portable Opaque Smoke Meter

Leave a Message
Product Description

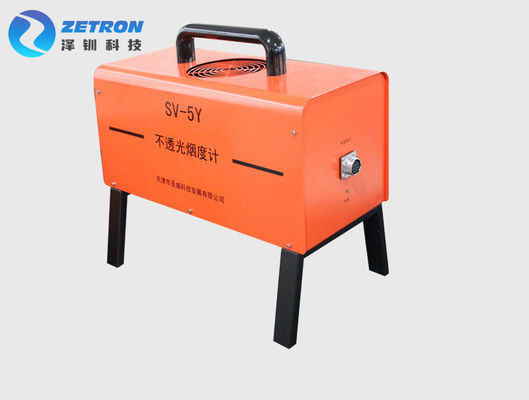

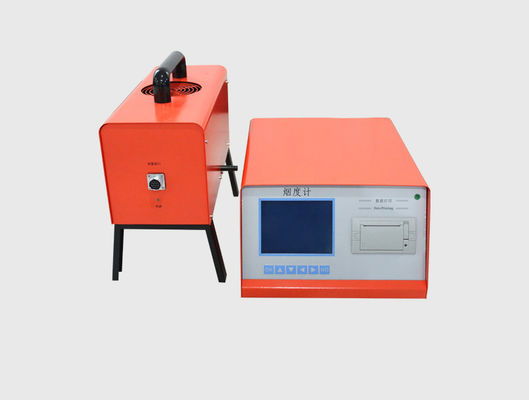

SV-5Y Opaque Smoke Meter



OVERVIEW



The measurement unit of 5Y opaque smoke meter adopts shunt technology to measure the smoke emission of diesel engine. Air curtain technology is used to protect optical system from pollution.



Handheld Exhaust Gas Analyzer Diesel Smoke Level Testing Portable Automobile Smoke Meter 0

SPECIFICATION



Warm up time 10 minutes
Size Control unit: 610*500*330 mm
Test unit: 500*300*33 0mm
Weight Control unit: 6kg (include printer)
Test unit: 13.5Kg
Power supply AC220V ±10%; 50Hz ±1Hz
Environment conditions Temperature: -5~40℃
Humidity: ≤95%
Pressure: 70~106 kps
Measurement range Dark lighting N:0-99.9%
Optical absorption coefficient K: 0-16.00m-1
Resolution Opacity N: 0.1%
Coefficient of light absorption K:0.01m-1
Indication Error Opacity N: ±2.0%(absolute error)
Display 7 inch high brightness LCD display
Optional function Gas temperature and engine speed optional configuration



FEATURES



Powerful standard configuration

■ Digital time display.
■ Large and high brightness LCD display
■ Support multi-language (English & Chinese)operation menu
■ Equipped with internal printer
■ Automatically Auto-zeroing
■ Have more than 500 groups of data storage and access functions
■ Equipped with RS-232C digital serial communication interface to facilitate networking
■ The input function of license plate number can input the vehicle platoon head and license plate number of provinces,
municipalities and autonomous regions, which makes the vehicle and test results correspond one by one in the use of
users, making it more convenient to inquire and call between departments.



Handheld Exhaust Gas Analyzer Diesel Smoke Level Testing Portable Automobile Smoke Meter 1



APPLICATION



It's suitable for all levels of traffic, public security testing stations, environmental protection exhaust control points at all levels, teaching laboratories of colleges and universities, automobile manufacturers, engine manufacturers, motorcycle manufacturing areas, as well as the use of one, two and three types of automobile repair plants, 4S shops, automobile repair and maintenance departments.
