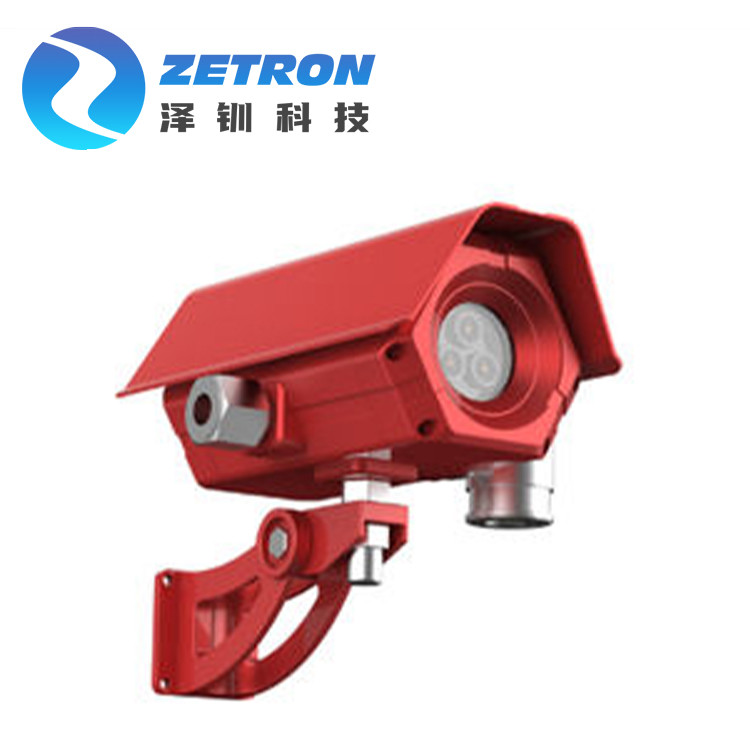

Infrared Flammable Open Path Infrared Gas Detector Four Wavelength IP66 30m - 50m

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC200-IR4
Minimum Order Quantity 1 piece
Price USD 500-- 3000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Infrared Flammable Gas Detector Gas Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
IR Sensor 4 Response Spectral Range 4-6um
Viewing Angle Range 90 ° Output RS485,4~20mA
Humidity ≤95% RH Protection Grade IP66
High Light

IP66 Open Path Infrared Gas Detector


50m Open Path Infrared Gas Detector


Four Wavelength Infrared Flammable Gas Detector

Leave a Message
Product Description

MIC200-IR4 Four-wavelength Point-type
Infrared Flammable Gas Detector| 30--50M




The MIC200-IR4 Four-band Infrared Flame Detector is Sight Gas detection System is a proven open path gas detection solution which aids in high speed detection of flammable gases such as Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene in Short range (5 to 40m) distances comes with approved certification for ATEX.

It's a reliable and high-performance flame detector. It uses advanced flame analysis and identification technology to quickly respond to infrared radiation in a fire and has the highest false alarm immunity .
The MIC-200-IR4 detector contains three narrow-band infrared sensors (4-6 microns) and optical filters, which have high sensitivity to carbon dioxide emission spectra (4.4 microns), which can effectively eliminate interference and achieve detection for a much longer distance.
The special fire signal processing method and multi-sensor detection technology greatly improve the sensitivity and response time of the detector. The detector is suitable for liquid and gas fires, open flames with smoke and places where deflagration occurs.


Infrared Open Path Flammable Fixed Gas Detector ATEX Four Ir Sensor RS485 5-40m 0




Response spectral range
Response time
5--10s The response time of different media is different
Viewing angle range
90 °
Detection distance
30--50 meter (depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage DC24V
Working current current≤25mA, alarm current≤35mA
Executive standard GB15631-2008, GB3836- 2000 series
Explosion-proof grade
Protection grade
Signal output 4~20mA three-wire system output
Installation method wall or ceiling
Cable outlet thread 20mmX1.5mm free conversion G1 / 2 optional
19*16*11 cm
Shell material
aluminum alloy, surface anticorrosive paint sprayed
Weight 1.7 Kg
Advantages dustproof, explosion-proof, corrosion-proof




  • Double band pass filters that fully compensate for all types of fog, rain and/mist interference
  • 100% Solar Immune
  • Correct operation under partial obscuration conditions
  • High vibration resilience
  • Radially symmetrical and bonded window heating delivers good low temperature performance
  • Coaxial optics delivers best in class performance and resilience to partial obscuration
  • Fully temperature compensated solid state detectors
  • Low power consumption in all conditions
  • Higher power and more robust design telescope
  • Optional Modbus RS485 multi drop output
  • FM hazardous area and performance Approved
  • ExdII CT6 explosion-proof grade, suitable for zone 1 and zone 2 hazardous locations


Infrared Open Path Flammable Fixed Gas Detector ATEX Four Ir Sensor RS485 5-40m 1

Infrared Open Path Flammable Fixed Gas Detector ATEX Four Ir Sensor RS485 5-40m 2




• Offshore platforms & vessels (FPSO’s)

• Downstream chemical processing plants
• Gas transport and pipelines
• Large storage areas & buildings
• Perimeter detection


Infrared Open Path Flammable Fixed Gas Detector ATEX Four Ir Sensor RS485 5-40m 3
