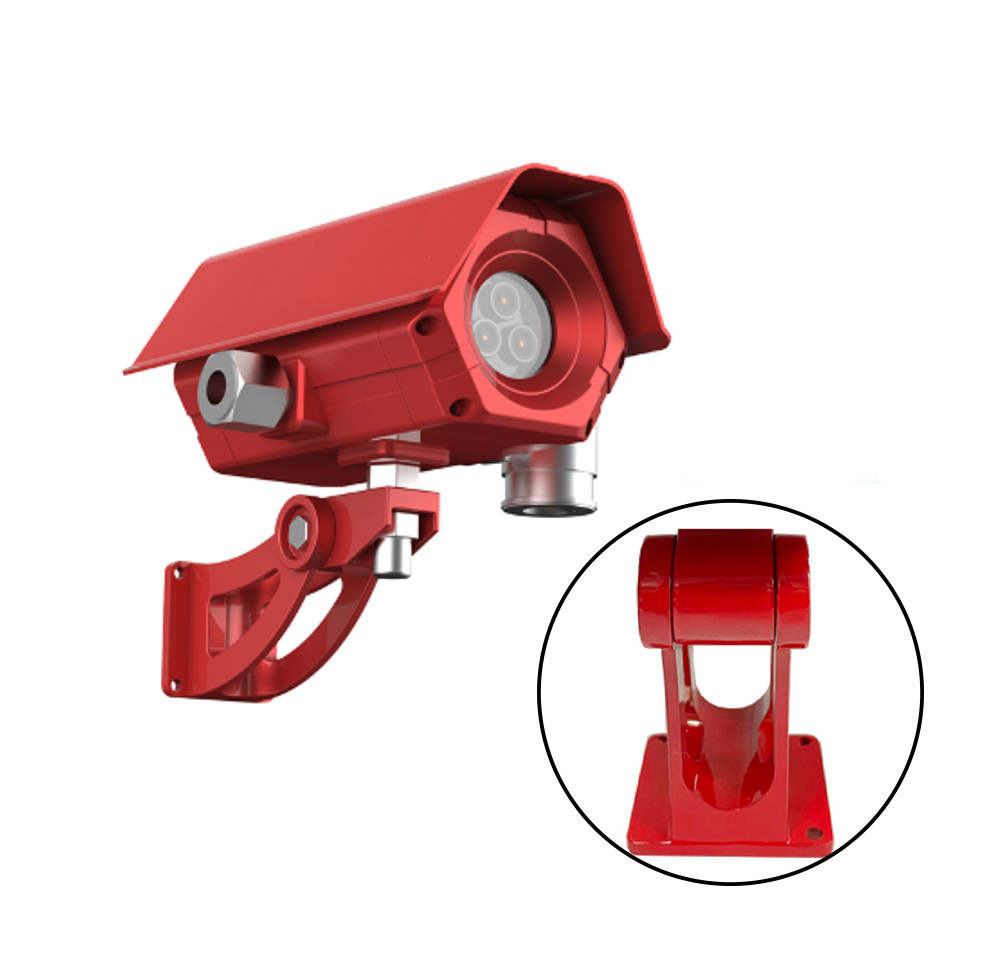

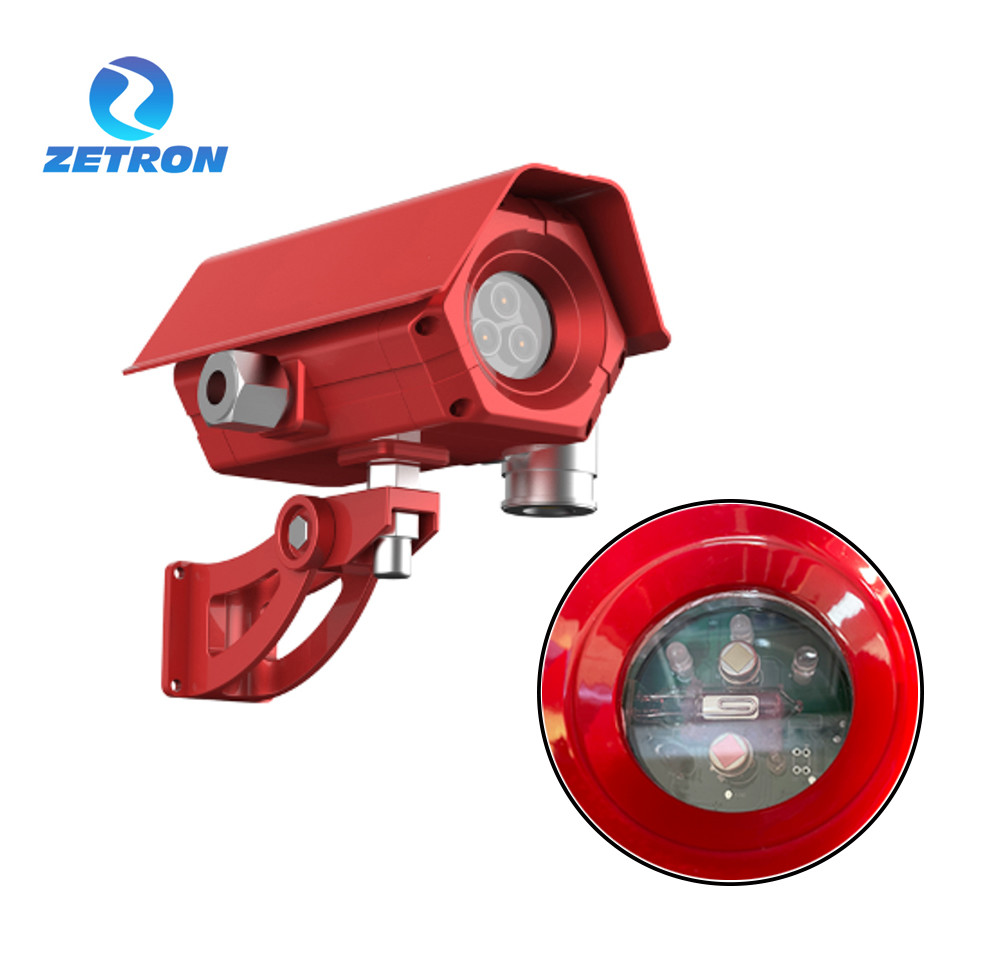

MIC200-UVIR2 Ir Fire Detector Fixed Installation

  • MIC200-UVIR2 Ir Fire Detector Fixed Installation
  • MIC200-UVIR2 Ir Fire Detector Fixed Installation
  • MIC200-UVIR2 Ir Fire Detector Fixed Installation
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC200-UVIR2
Minimum Order Quantity 1 piece
Price USD 500-- 3000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Infrared Flammable Gas Detector Gas Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
Sensor UV:1 IR:2 Response Spectral Range UV:260nm IR:4-5um
Viewing Angle Range UV:120° IR:90° Protection Grade IP66
High Light

uvir2 ir fire detector

,

fixed ir fire detector

,

fixed uvir flame detector
Leave a Message
Product Description

MIC200-UVIR2 Infrared Flammable Gas Detector

OVERVIEW



High-speed response to fire is highly immune to false positives. It responds quickly to infrared radiation in fires and has the highest immunity to false alarms. The detector contains two narrowband infrared sensors (4-5 µm) and a UV sensor(260nm). Multi-level sensitivity settings to meet different needs in more situations.



FEATURES & BENEFITS
  • High-speed response to fire
  • Excellent anti-radio frequency and electromagnetic interference performance;
  • Radially symmetrical and bonded window heating delivers good low-temperature performance
  • Fully temperature-compensated solid-state detectors
  • Three-wire current ring and relay are optional
  • Low power consumption in all conditions
  • FM hazardous area and performance Approved
  • Easy to install, with a detection angle of 360 degrees
SPECIFICATION



Response spectral range
UV:260nm IR:4-5um
Viewing angle range
UV:120° IR:90°
Detection distance
15-50 meters(depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Pressure range
86 ~ 106Kpa
Protection grade
IP66
Shell material
aluminum alloy, surface anticorrosive paint sprayed





MIC200-UVIR2 Ir Fire Detector Fixed Installation 0

MIC200-UVIR2 Ir Fire Detector Fixed Installation 1MIC200-UVIR2 Ir Fire Detector Fixed Installation 2MIC200-UVIR2 Ir Fire Detector Fixed Installation 3

MIC200-UVIR2 Ir Fire Detector Fixed Installation 4

APPLICATION



• Offshore platforms

• Downstream chemical processing plants

• Large storage areas & buildings
• Gas transport and pipelines
• Perimeter detection



MIC200-UVIR2 Ir Fire Detector Fixed Installation 5
