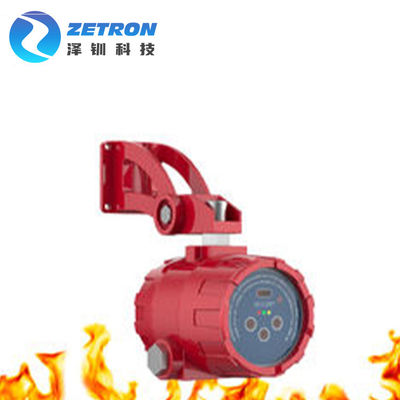

15m 50m Ultraviolet Dual Infrared Explosion Proof Warehouse Fast Propane Gas Detection UV/IR Flame Detector

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC200-UV/IR2
Minimum Order Quantity 1 piece
Price USD 500-- 3000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ultraviolet Dual Infrared Explosion Proof Warehouse Fast Propane Gas Detection UV/IR Flame Detector Gas Heptane, Methane, Methanol, Propane, Ethane, Butane
Sensor UV / IR2 Combined Detectors Output RS485,4~20mA,Relay
Explosion-proof Grade ExdⅡCT6/DIP A20 TA,T6 Protection Grade IP66
Size 19*16*11 Cm Weight 1.7Kg
Highlight

15m Infrared Flame Detector

,

50m Ultraviolet Flame Detector

,

Explosion Proof UV Flame Detector

Leave a Message
Product Description

MIC200- UV/IR2 Flame Detector
Infrared Sensor | Ultraviolet Sensor |1
5--50M



OVERVIEW



The MIC200-UV/IR2 flame detector combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate, and reliable fire detection, as well as improved anti-interference against the wrong light source to effectively detect flames from a longer distance. The MIC200-UV/IR2 detector is equipped with two infrared sensors and one ultraviolet sensor, which has the advantages of fast reaction time and high sensitivity.



The MIC200 - UV/IR2 Flame Detector monitors for radiation emitted by a flame in both the ultraviolet (UV) and infrared (IR) spectral ranges. This UV/IR2 combination provides a fast response time and increased false alarm immunity against sources of radiation for reliable protection.



The MIIC200 - UV/IR2 flame detector provides ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and nonvisible), as well as Hydrogen fires.
The detector addresses slow growing fires as well as fast eruptions of fire using improved UV/IR technology. The detector operates in all weather and light conditions.



Depending on the user's sensitivity and delay time, the MIC200-UV/IR2 detector can effectively eliminate false positives and is adapted for use in high-risk industrial environments. In addition to the general application, it is especially suitable for railway locomotive fire extinguishing, military armored vehicles and ships explosion suppression, hydrogen combustion flame. The explosion-proof case of the MIC200-UV/IR2 detector can be firmly and accurately installed both indoors and outdoors. The highlighted LED can show the status of the detector, and its automatic testing function can ensure that the detector can fully play its function at any time.



15m 50m Infrared Flame Detector , Ultraviolet Flame Detector 0



FEATURES & BENEFITS



  • High immunity to false alarm
  • Hydrogen and Hydrocarbons flame detection
  • Ultra-fast detection mode detection within 5 -10s for fireballs or explosions
  • High sensitivity – up to 50m n-heptane pan fire
  • Data/Event logger – alarms, faults and other relevant events are logged to non-volatile memory
  • Automatic and manual internal self-test of window cleanliness and the overall operation of the detector
  • Window heater to avoid condensation and icing
  • Tilt mounting bracket can be connected either above or below the detector
  • UV and IR warning levels – 4-20mA – Current output warning when elevated UV or IR radiation is detected
  • FM hazardous area and performance Approved
  • ExdII CT6 explosion-proof grade, suitable for zone 1 and zone 2 hazardous locations



15m 50m Infrared Flame Detector , Ultraviolet Flame Detector 1



SPECIFICATION



Response spectral range
IR 4-5um, UV 260nm
Response time
5--10s The response time of different media is different
Viewing angle range
IR 90 ° , UV 120°
Detection distance
15 --50 meter (depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage DC24V
Working current current≤30 mA, alarm current≤45mA
Executive standard GB15631-2008, GB3836- 2000 series
Explosion-proof grade
ExdⅡCT6/DIP A20 TA,T6
Protection grade
IP66
Signal output 4~20mA three-wire system output
Installation method wall or ceiling
Cable outlet thread 20X1.5mm free conversion G1 / 2 optional
Dimensions
19*16*11 cm
Shell material
aluminum alloy, surface anticorrosive paint sprayed
Weight 1.7 Kg
Advantages dustproof, explosion-proof, corrosion-proof



APPLICATION



This fast-acting technology is ideal for difficult-to-protect applications such as:

  • production areas
  • tank farms and product storage
  • loading and unloading facilities
  • hazard waste treatment and storage
  • processes with high temperatures, pressure and flammable fuels
  • pump rows
  • manifolds
  • hot oil systems
  • rail car loading racks
  • hydrocarbon filling and storage areas
  • chemical storage tanks
  • aircraft hangars



WHY USE UV/IR FLAME TECHNOLOGY



There are two main flame-sensing technologies used today: ultraviolet/infrared and multi-spectrum infrared (MSIR). A UV/IR flame detector consists of an ultraviolet (UV) and infrared (IR) sensor paired together within a single instrument. While the UV sensors detect the UV radiation-emitted flames, the IR sensors monitor the infrared emission spectral band around the 4.3 to 4.4 micron range – the predominant radiant emission band for hydrocarbon-fueled fires.



The only alarm source shared between the two sensing technologies is a real hydrocarbon fire – a key benefit of UV/IR detectors. Adding advanced signal processing algorithms ensures this combination detector delivers outstanding performance to a wide range of flammable liquids, gases, and volatile solids while simultaneously providing enhanced false alarm immunity far superior than either a UV or IR sensor alone.
