RS485 Gas Detection Controller 8 Channel 4mA - 20mA DC24V 5AH

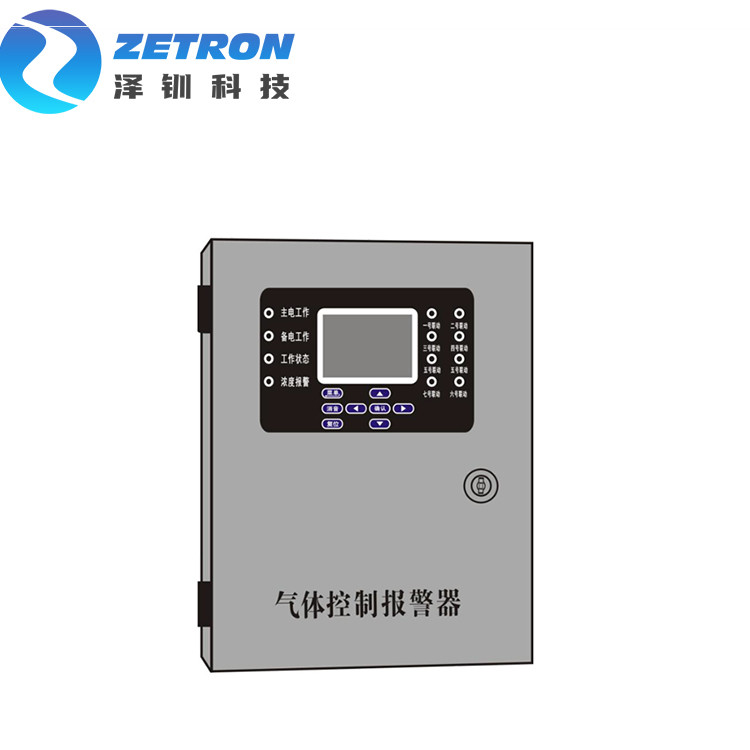

MIC2000 Gas alarm controller

The gas alarm controller is a centralized alarm controller for gas concentration monitoring and leakage. The power supply is directly supplied by the mains power grid or the battery. The alarm controller receives RS485 signal and 4-20mA. For the time being, it can only receive the RS485 signal output by the company's new online detector. If you need to access the standard RS485 signal from other manufacturers, please contact our company for confirmation. YIhe gas alarm controller can be connected to 120 bus system RS485 output gas detector and 8 4-20mA output gas detector, more input channels can be customized.

● 3.5-inch HD color screen display, Chinese and English operation interface can be switched (default Chinese interface)

● Can connect all kinds of gas detector, temperature and humidity transmitter, pressure transmitter, wind speed transmitter, dust detector and other 4-20mA signal,

● Units available: PPM, LEL%, VOL %, mg/m3, UG /L, PPHM, ℃, RH%, Pa, kg, PSI, m/s

4-20mA and RS485 can be input at the same time; Data output supports the standard Modbus protocol

Optional: 8 channel 4-20 ma output, Ethernet module, PC computer monitoring software, RS485 / RS232 converter, USB and RS232 cable (no serial port the computer need to be selected)

● Modular structure design, standard channel for 1 (up to 32 channels) 4-20mA input signal, at the same time can be connected to 255 channels RS485 input letter

No., more channel input signal can be customized, controllers and controllers can communicate with each other.

● The gas alarm controller has the function of data recording, the standard capacity is 100,000 pieces, and the larger capacity can be customized. The storage time interval is set arbitrarily, Recording time, concentration value, alarm information, etc., can be set to record real-time concentration or only record alarm information, the default setting is to record only alarm information. Support SD card storage or U disk storage, support the machine to view all records, selectively view records, delete records.

● Three display modes can be switched: each screen displays 6 channels of concentration, large character body circulation display single channel of concentration, real-time curve, between each channel. The automatic cycle or manual cycle can be toggled, and the maximum value, minimum value, gas name can be set, and the historical record curve can be viewed.

● Gas alarm controller with computer monitoring function, can be connected to the computer through the upper computer software 24 hours continuous monitoring of real-time concentration on the computer. Automatic storage of data, computer alarm (need to be equipped with speakers), or through the upper computer software read a probe or all the probe stored records and data analysis, can display the maximum value, minimum value, average value, historical curve, real-time curve and other functions, data can be exported or printed

● Gas alarm controller remote transmission function, the controller can put the real-time concentration of the field probe through the wire (within 2000 meters)

Optional: Ethernet transmission or wireless transmission function (2km, 5km, unlimited distance optional), through 2-core data line (wired transmission),

Local area network, Internet or wireless transmission network will upload the data to the monitoring center, environmental protection bureau, other monitoring equipment, and then through the upper computer software for data display, storage, analysis, or use the communication protocol custom read data.

Signal input: 1 ~ 32 channels 4 ~ 20mA, at the same time RS485 input, can connect 255 probes

Output signal: Ethernet, RS485 (standard Modbus protocol), 4-20mA (4-way, 8-way optional)

Display range: Numbers 0 ~ 99999

Differentiation rate: 1, 0.1, 0.01, 0.001 optional

Display accuracy: ±0.1%FS

Display mode: high-definition color screen, six-way display at the same time or large font single-channel circular display, more than six channels , Automatic or manual flip screen loop display

Control loop: standard for 4, 1 public output, optional 8, 12, 16 control output

Alarm mode: sound and light alarm, three-level alarm, each circuit can be set separately high and low limit alarm value

Output control: standard for 4 sets of relay contact output (normally open/normally closed), contact capacity 3A,32VDC

Or 3A,220VAC, one set of public alarm outputs, contact capacity 12A, 32VDC or 7A, 240VAC,

Automatic detection: circuit break/short circuit detection, detector status, function detection, etc

Operating temperature: -40℃ ~ +70℃

Relative humidity: 0 ~ 95%RH, used in non-condensation occasions, waterproof splash and short time rain, can be customized outdoor moisture-proof, rainproof model.

Power source: 220VAC/50Hz or 24VDC,2A, 24VDC,5A, 24VDC,10A optional, according to the number of probes to choose

Maximum power consumption: 2.5W / channel

Standby power supply: DC24V 5AH (optional)

Size: 250 *170 *70mm, wall-mounted installation

All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas,Cannabis & Hemp Oil, Breweries and so on.

Q: What is your terms of payment ?
A:We accept trade assurance, western union ,Visa master card and tt.
Trade assurance can protect you, when you confirm the product then the money into my account.

Q: When do you reply to messages?
A: We will reply you for your inquiry in 24 hours.

Q: What is the warranty for your product ?
A: Warranty: 12 months, Lifetime maintenance

Q: When do you send the products? And how do you send it ?
A: For the small order, we will send out the goods with 5 days,If have stock ,we will send immediately.
We send them by ups, fedex, tnt or dhl. For big order, normal is 20 days will finish.

Q:Do you accept OEM or revised logo, color, model, size?
A:Yes, we accept OEM for the qualify buyer.We can make the products according to customer personal requirement.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: How about your after-sale service?
A: After sending, we will track the products for you , until you get the products.
When you got the goods, test them, and give me a feedback.
If you have any questions about the problem, contact with us, we will offer the solve way for you.
